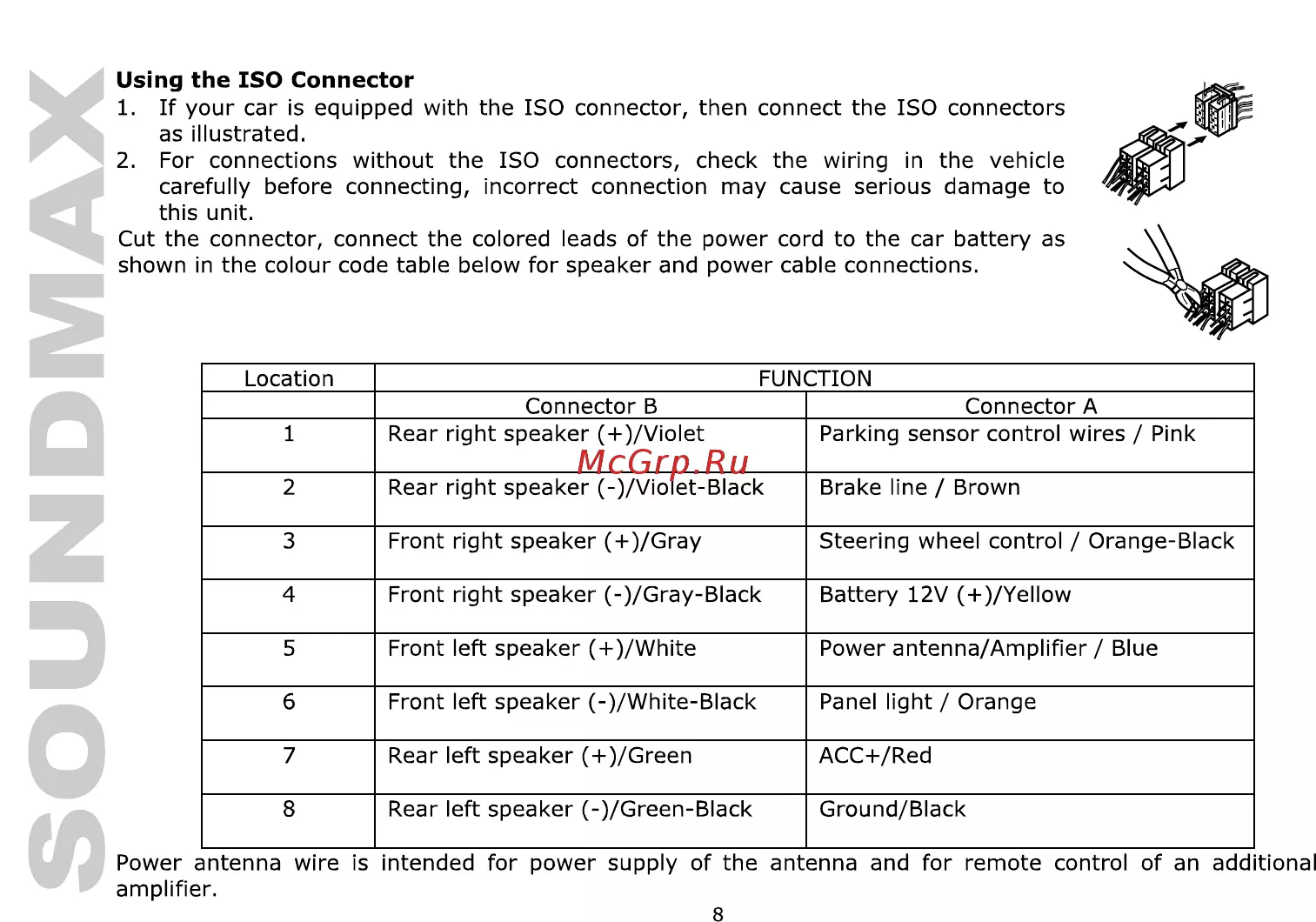

Using the ISO Connector SOUNDMAX 1 If your car is equipped with the ISO connector then connect the ISO connectors as illustrated 2 For connections without the ISO connectors check the wiring in the vehicle carefully before connecting incorrect connection may cause serious damage to this unit Cut the connector connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections FUNCTION Location 1 Connector B Rear right speaker Violet Connector A Parking sensor control wires Pink 2 Rear right speaker Violet Black Brake line Brown 3 Front right speaker Gray Steering wheel control Orange Black 4 Front right speaker Gray Black Battery 12V Yellow 5 Front left speaker White Power antenna Amplifier Blue 6 Front left speaker White Black Panel light Orange 7 Rear left speaker Green ACC Red 8 Rear left speaker Green Black Ground Black Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier 8
