INSTALLATION

WALL DRILLING AND BRACKET FIXING



; <











2SWLRQ &KLPQH\; <

 ;





Vertical reference line

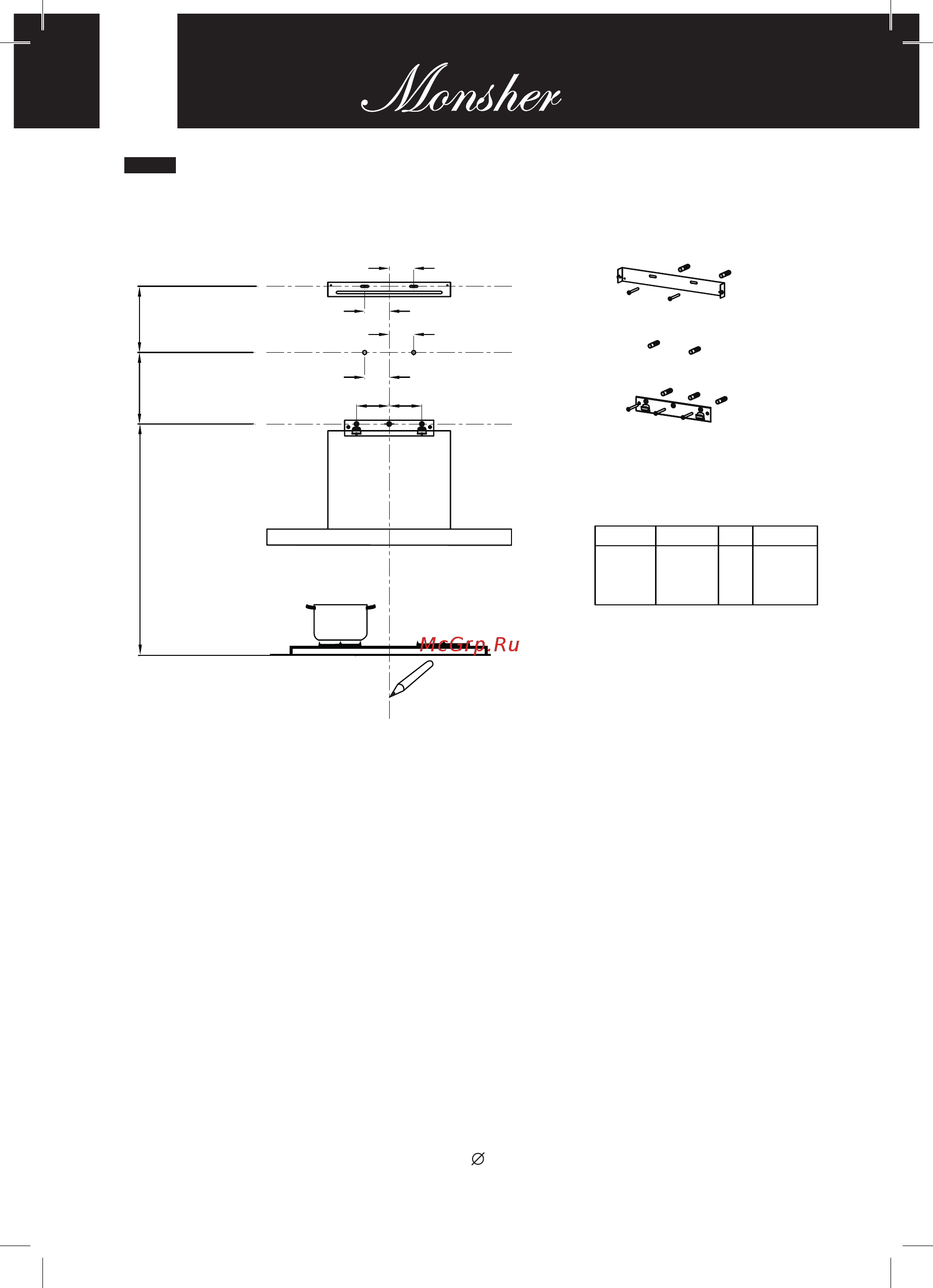

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area

in which the hood is to be fitted.

• A horizontal line A at 950 – 1050 mm above the cooker top.

• A horizontal line B at a X mm above the horizontal line A.

• A horizontal line C at a Y mm above the horizontal line B.

Mark Points:

• Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.

• Repeat this operation on the other side and on the vertical reference line,

checking that the three marks are leveled.

• Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.

• Repeat this operation on the other side , checking that the two marks are leveled.

• Mark a point (3) on the horizontal line C, 60 mm to the vertical reference line.

• Repeat this operation on the other side , checking that the two marks are leveled.

Fix the brackets:

• Drill holes at the marked points with a 10 mm drill bit.
