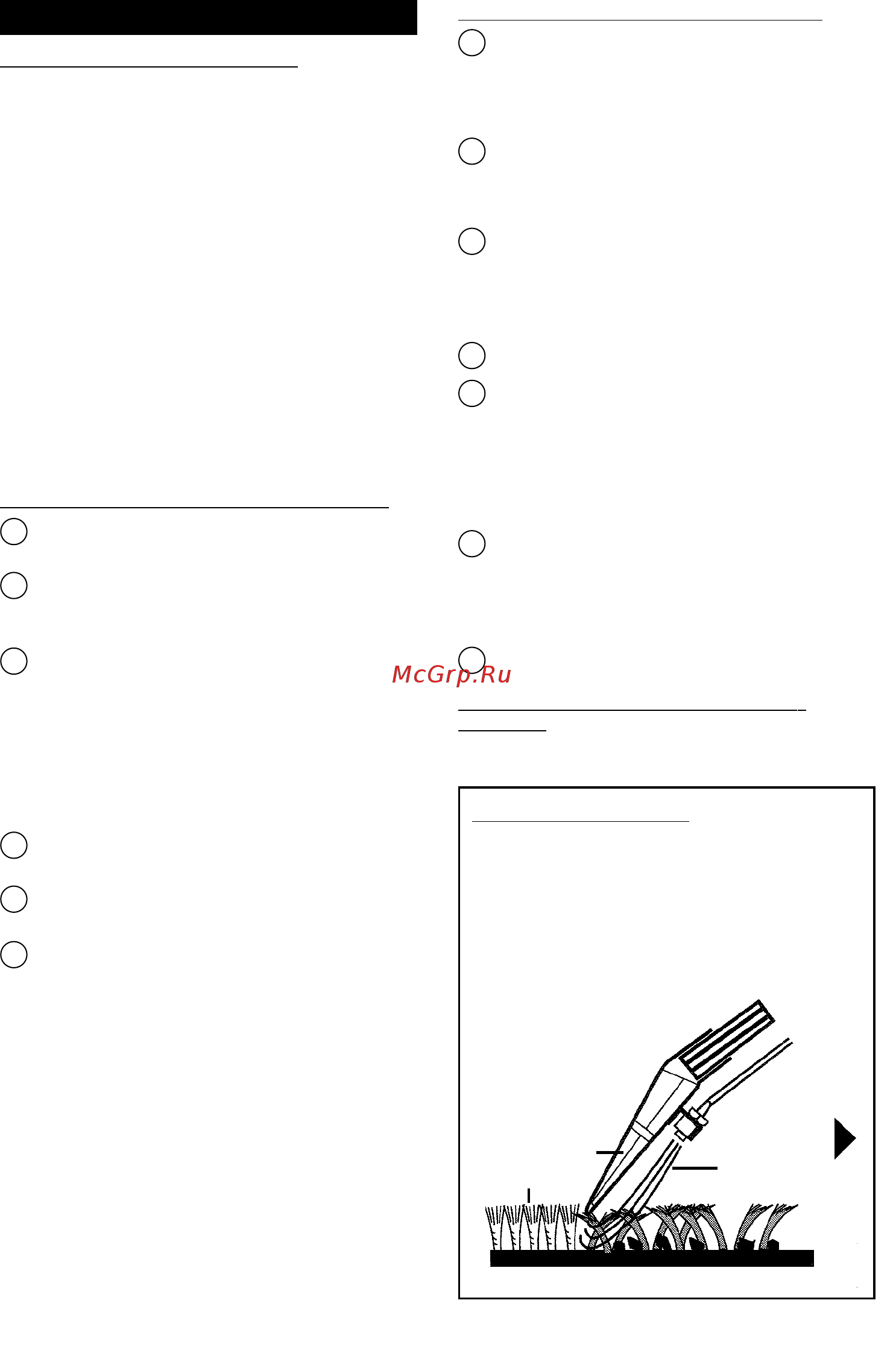

Gebrauch des Sprühextraktionssystems
Vor der Teppich-Naßreinigung
Vergewissern Sie sich, daß alles, was Sie naß reinigen
wollen, auch dafür geeignet ist.
Sie sollten das Gerät nicht für zarte, handgewebte
oder farbunechte Teppiche benutzen.
Zur Prüfung geben Sie etwas Reinigungsmittellösung
auf einen weißen Lappen und reiben diesen an einer
weniger gut sichtbaren Stelle auf den Teppich. Zeigen
sich auf dem Lappen keine Farbspuren, kann von
einer Farbechtheit ausgegangen werden. Im anderen
Fall darf der Teppich nicht naß gereinigt werden.
Haben Sie Zweifel, wenden Sie sich diesbezüglich an
einen Fachhändler.
Vor jeder Teppich-Naßreinigung ist die gesamte
Fläche gründlich zu saugen.
Während des Reinigens und danach sollte der Raum
gut belüftet werden, um eine rasche Trocknung zu
ermöglichen.
Teppich naßreinigen / sprühextrahieren
A Bei gezogenem Netzstecker Motorkopf (2)
abnehmen.
B Bei Anwendung des Sprühextrakionssystems ist
darauf zu achten, daß der Sprühmitteltank (28)
eingesetzt ist.
N Geben Sie das Reinigungskonzentrat in den
Sprühmitteltank (28) und füllen Sie den Rest mit
Wasser auf. (Dosierhinweis auf Protex Flaschen-
etikett beachten.)
Verwenden Sie handwarmes Wasser (max.
30 °C). Höhere Temperaturen können dem
Gerät, aber auch Teppich und Polstermöbeln
schaden.
L Lösen Sie den sich im Motorkopf (2) befindlichen
Ansaugschlauch (37).
O Hängen Sie diesen, während Sie den Motorkopf
(2) aufsetzen, in die Reinigungsflüssigkeit.
D Verriegeln Sie den Behälter durch Andrücken
der beiden Verschlußschnapper (3).
Saug- und Druckschlauch anschließen
P Schieben Sie das Absperrventil (17) in die Auf-
nahme am Saugrohr. Anschließend stecken Sie
den Handgriff (11) in das Saugrohr (14). Befesti-
gen Sie nun den Druckschlauch (19) mit den
Schlauchclipsen (15) am Saugschlauch (13).
E Danach wird der Saugschlauch (13) in den
Ansaugstutzen (8) so eingeschoben, daß die
Markierungen übereinstimmen und der Saug-
schlauch (13) einrastet.
Q Anschließend den Druckschlauch (19) in die
Schnellkupplung (5) am Motorkopf (2) fest ein-
drücken.
Schieben Sie nun das zweite Saugrohr (mit den
Einhängeösen) auf das bereits montierte Rohr.
S Montieren Sie die Sprühextraktionsdüse (18).
T
Den an der Düse befestigten Druckschlauch (12)
mit der Kupplung (39) am Absperrventil (17)
ansetzen und durch Drehen zur Verriegelung
bringen. Anschließend den Druckschlauch (12)
mit den kleineren Rohrclipsen (16) am Saugrohr
befestigen.
Der Drehschalter am Gerät muß auf „0” stehen.
G Netzanschlußleitung (10) anschließen.
Das Gerät ist nun betriebsbereit.
Gerät einschalten
U
Drehknopf (7) auf Sprühextraktionsstellung
drehen.
Die Kontrolleuchte (6) muß nun auf
-
leuchten.
Das Sprühextrakions-System
• Reinigungslösung mit Druck tief einsprühen
• Schmutz lösen und fasertief auswaschen
• Schmutzwasser kraftvoll absaugen und
Teppichfloor wieder aufrichten.
Alles in einem Arbeitsgang.
Saugrohr
Druckleitung
Arbeitsrichtung
Absaugen und
Aufrichten
Einsprühen
Lösen und Auswaschen
