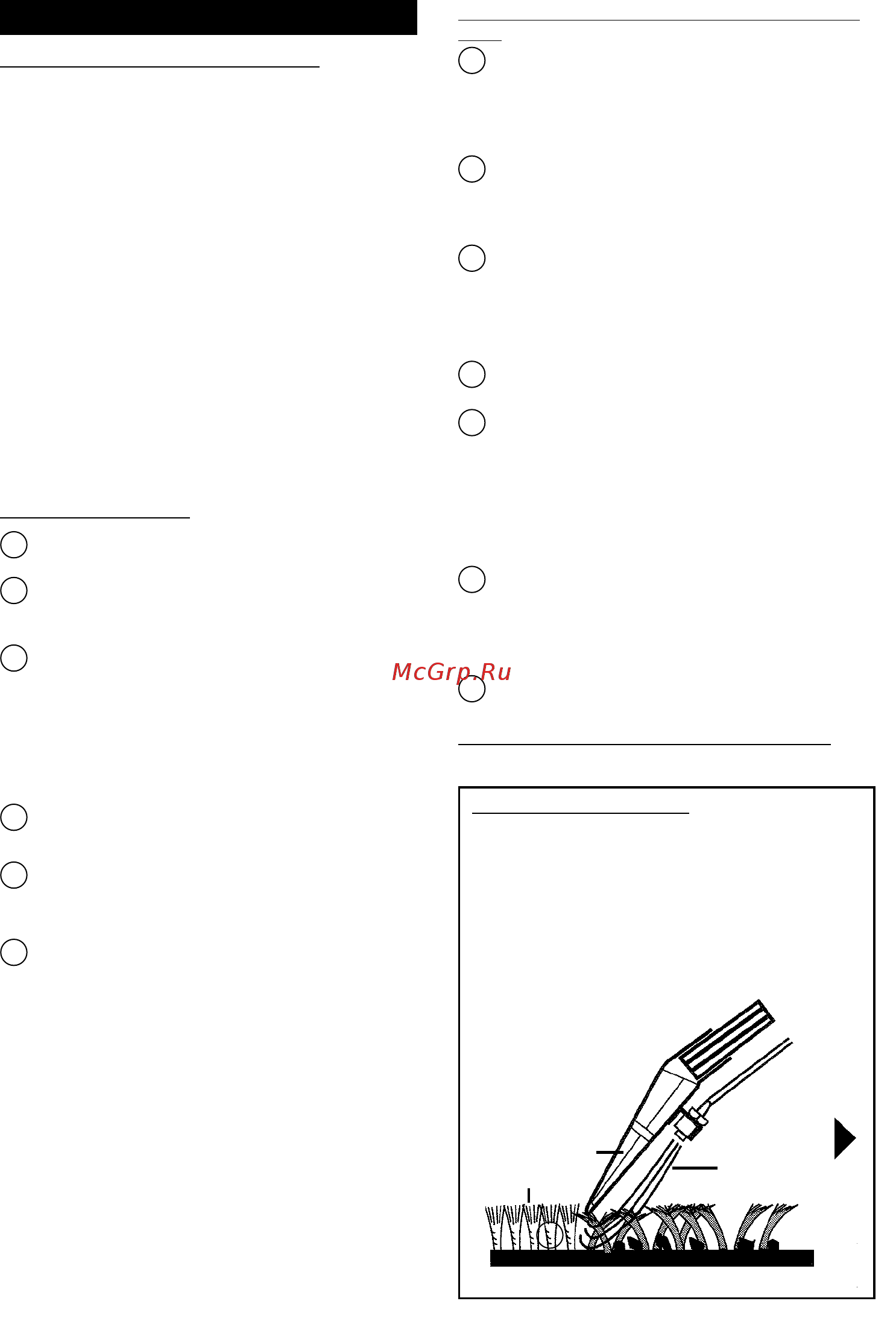

Operating the spray-extraction system
Before spray-extraction cleaning
Make sure that what is to be cleaned by spray-extrac-
tion is suitable for this purpose.
Do not use the appliance for delicate, hand-woven or
non-fast carpets.
Test the colour-fastness of your carpet by pouring a
little cleaning solution onto a white cloth and rubbing
this onto a normally hidden section of the carpet. If
there are no traces of dye on the cloth, it can be assu-
med that the carpet is colour-fast.
However, if dye comes off onto the cloth, do not cle-
an the carpet by spray-extraction.
If you are in doubt, contact a specialist dealer.
Before shampooing your carpet, vacuum-clean the
whole area thoroughly.
Ensure that the room is well-aired during and after
spray-extraction cleaning to enable the carpet to dry
quickly.
Carpet shampooing
A Pull out the plug and lift off the motor block (2).
B
When using the appliance in the spray-extraction
mode, ensure that the extraction liquid tank (28)
is inserted in the collecting bin.
N Pour the cleaning concentrate into the sprayer
tank (28) and fill up with water. (Observe the
dosing instructions on the lable of the Protex
bottle.)
Use lukewarm water (max. 30°C) only. Higher
temperatures can damage not only the applian-
ce, but also the carpet and upholstery.
L Detach the cleaning solution tube (37) from its
fixture in the motor block (2).
O While putting the motor block (2) back on the
collecting bin, let the cleaning solution tube (37)
dangle down into the cleaning solution.
D Secure the motor block on the collecting bin by
means of both snap-on fasteners (3).
Connecting the flexible hose and delivery
tube
P Push the shut-off valve (17) in the mount on the
suction tube. Afterwards push the hand grip (11)
in the suction tube (14). Now fasten the pressure
hose (19) to the suction hose (13) with the hose
clips (15).
E Then insert the flexible hose (13) in the suction
socket (8) in such a manner that the markings on
both correspond and the button audibly clicks
into place.
Q Subsequently, insert the delivery tube (19) firmly
into the coupling piece (5) on the motor block (2).
Now attach the second suction tube (the one with
fixture studs) to the suction tube which is already
mounted.
S Attach the spray-extraction carpet shampoo
nozzle (18).
T Mount the pressure hose (12), fasten to the
nozzle with the coupling (39) in the shut-off valve
(17) and turn to lock in position. Afterwards
fasten the pressure hose (12) to the suction tube
by means of the smaller tube clips (16).
The control knob on the appliance must be set at
“0”.
G Plug the appliance into a mains socket.
The appliance is now ready for use.
Switching on the appliance
U Turn the control knob (7) to the „spray-extrac-
tion" symbol.
The pilot lamp (6) should now be lit up.
15
The spray-extraction system:
• spray pressurised jets of cleaning solution
• breaks down dirt and cleanses deep into the
fibres
• extracts dirty water powerfully and lifts up
carpet pile.
All in a single operation.
suction tube
delivery tube
direction of work
extracts and
raises
sprays
dissolves and cleanses
