Operating the Thermometer

D:S=12:1

38 mm @

300 mm

75 mm @

900 mm

132 mm @

1500 mm

1.5 " @

12 "

3 " @

36 "

5.3 " @

60 "

efh005f.eps

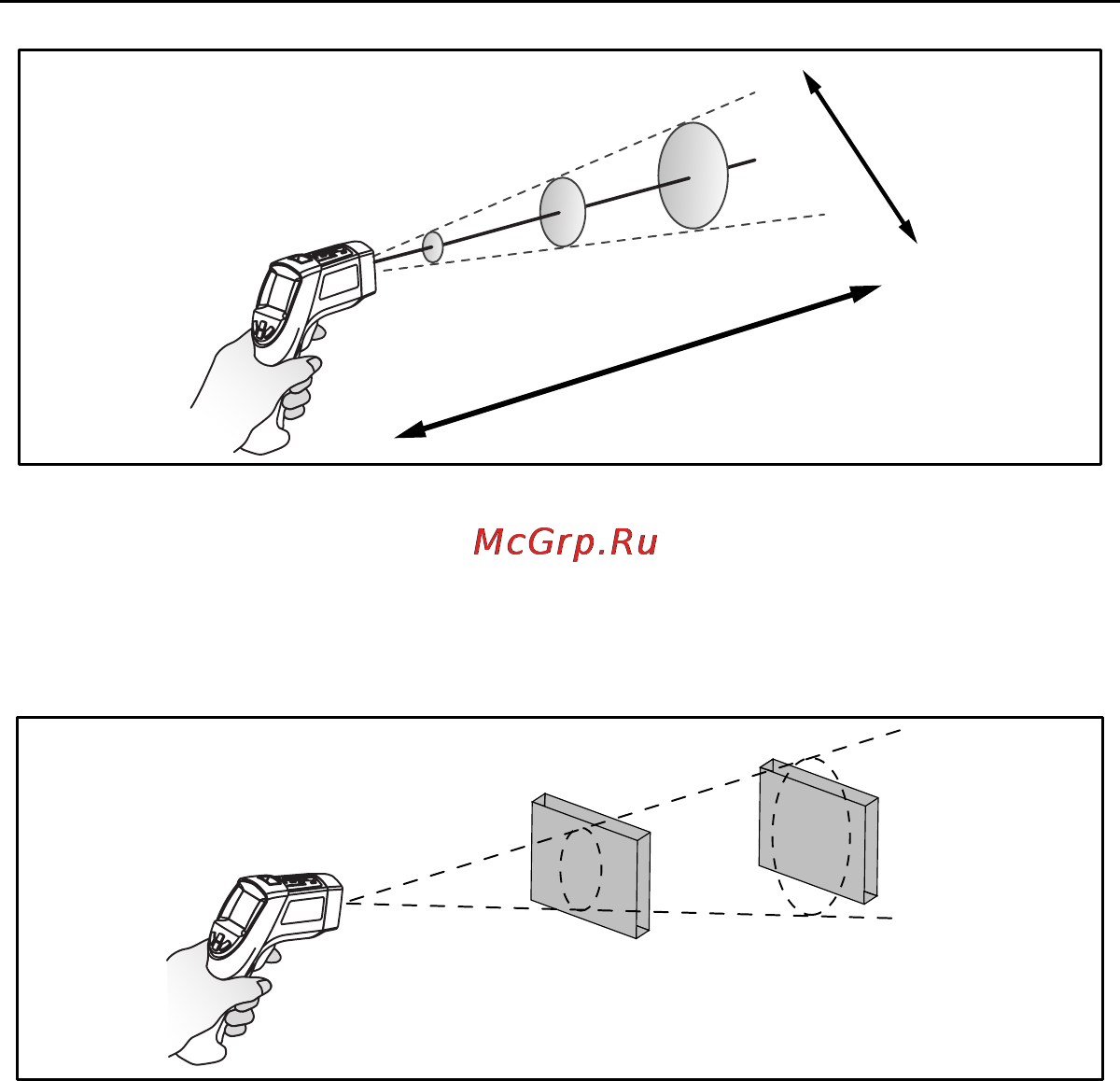

Figure 5. Distance and Spot Size

Field of View

Make sure that the target is larger than the spot size. The smaller the target, the closer you

should be to it. See Figure 6.

Ye s

efh004f.eps

Figure 6. Field of View

Emissivity

Emissivity describes the energy-emitting characteristics of materials. Most organic materials

and painted or oxidized surfaces have an emissivity of about 0.95.

If possible, to compensate for inaccurate readings that may result from measuring shiny metal

surfaces, cover the surface to be measured with masking tape or flat black paint

(<148 °C/300 °F) and use the high emissivity setting. Allow time for the tape or paint to reach

the same temperature as the surface beneath it. Measure the temperature of the tape or

painted surface.

If you cannot paint or use tape, then you can improve the accuracy of your measurements with

the emissivity selector. Even with the emissivity selector, it can be difficult to get a completely

accurate infrared measurement of a target with a shiny or metallic surface. Experimentation,

using the probe to determine benchmark temperatures, and experience will help you choose the

best setting for specific measurements.

The Thermometer has three emissivity settings: low (0.3), medium (0.7), and high (0.95). Refer

to Table 2. The reference to emissivity settings in the table are suggestions for typical

situations. Your particular situation may differ.
