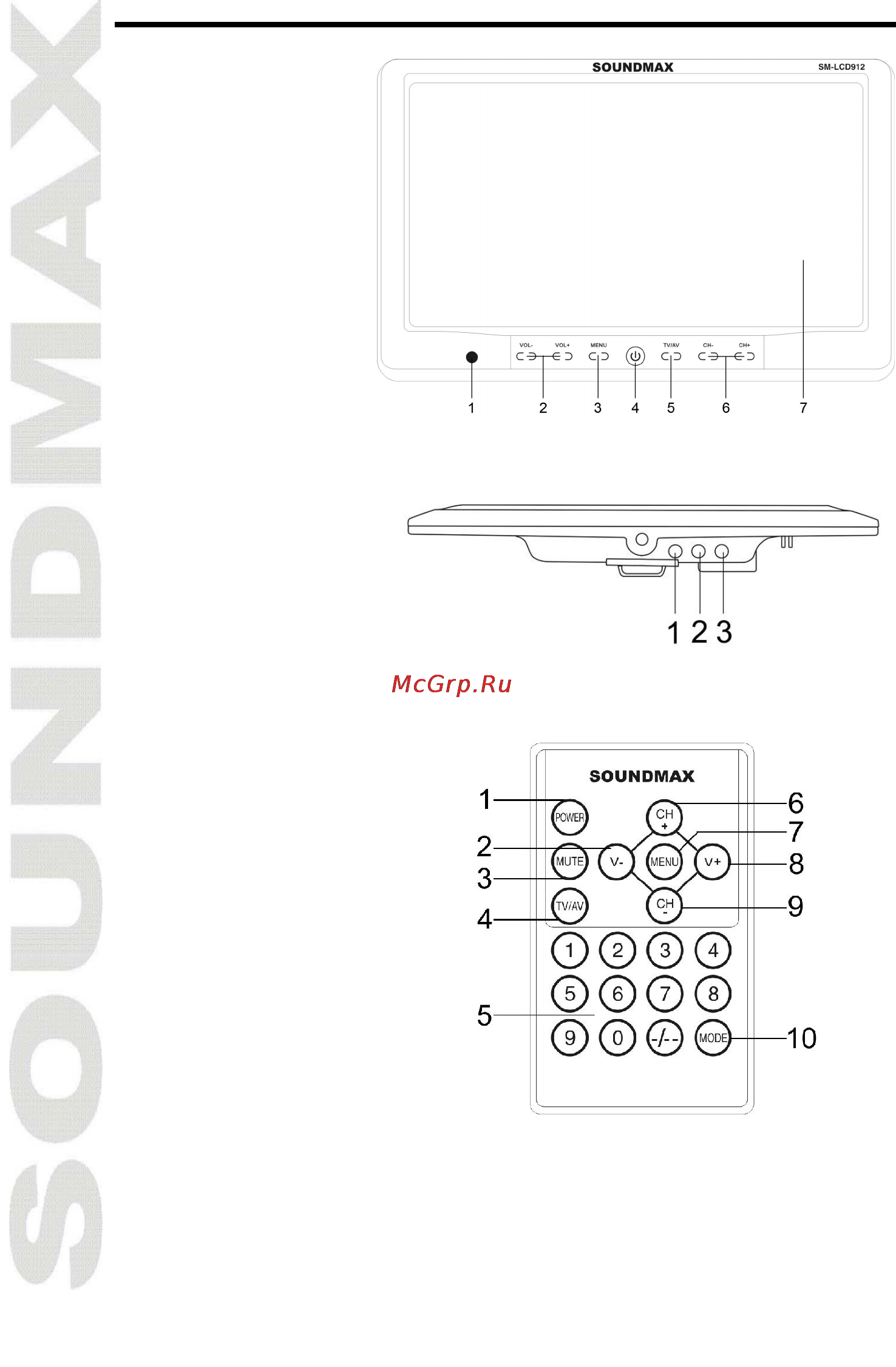

Control elements

1. IR-sensor

2. VOL+/VOL- buttons

3. MENU button

4. POWER button

5. TV/AV button

6. CH+/CH- button

7. LCD display

Bottom panel

1. AV in jack

2. Earphone jack

3. Power jack

Remote controller (RC)

1. POWER button

2. VOL- button

3. MUTE button

4. TV/AV button

5. Number buttons

6. CH+ button

7. MENU button

8. VOL+ button

9. CH- button

10. MODE button

1. Please align the RC with the infrared-receiving window on TV set in

2. Never squeeze, drop, wet or disassembly the RC.

3. Never press any button continuously and swiftly. Operation interval is at

least 2 seconds.
