Installation/connection

Stand installation:

 Release the metal washer on the top of the bracket but do not separate it

from the bracket.

 Insert the metal washer with the bracket into a hollow at the back of the

unit and move the bracket up to a suitable height.

 Tighten the screw 1 up on the bracket to fix the stand with the unit.

 Control the screen angle with the lateral screw.

 Screw the stand to the bracket.

Connection of the antenna:

Plug the antenna into the Antenna jack situated on the rear panel of the unit.

Connection of headphone:

Connect the headphone to the headphone jack for private listening. The

speakers will not operate when headphones are connected.

Connection to power source:

Connect one round end of attached AC/DC adaptor or car adaptor to the power

source input jack and the other end to the wall outlet at the suitable voltage.

When in house, use the AC/DC adaptor; for car use, connect with the car

adaptor (adaptors included should be only used). Press POWER button to turn

on the unit.

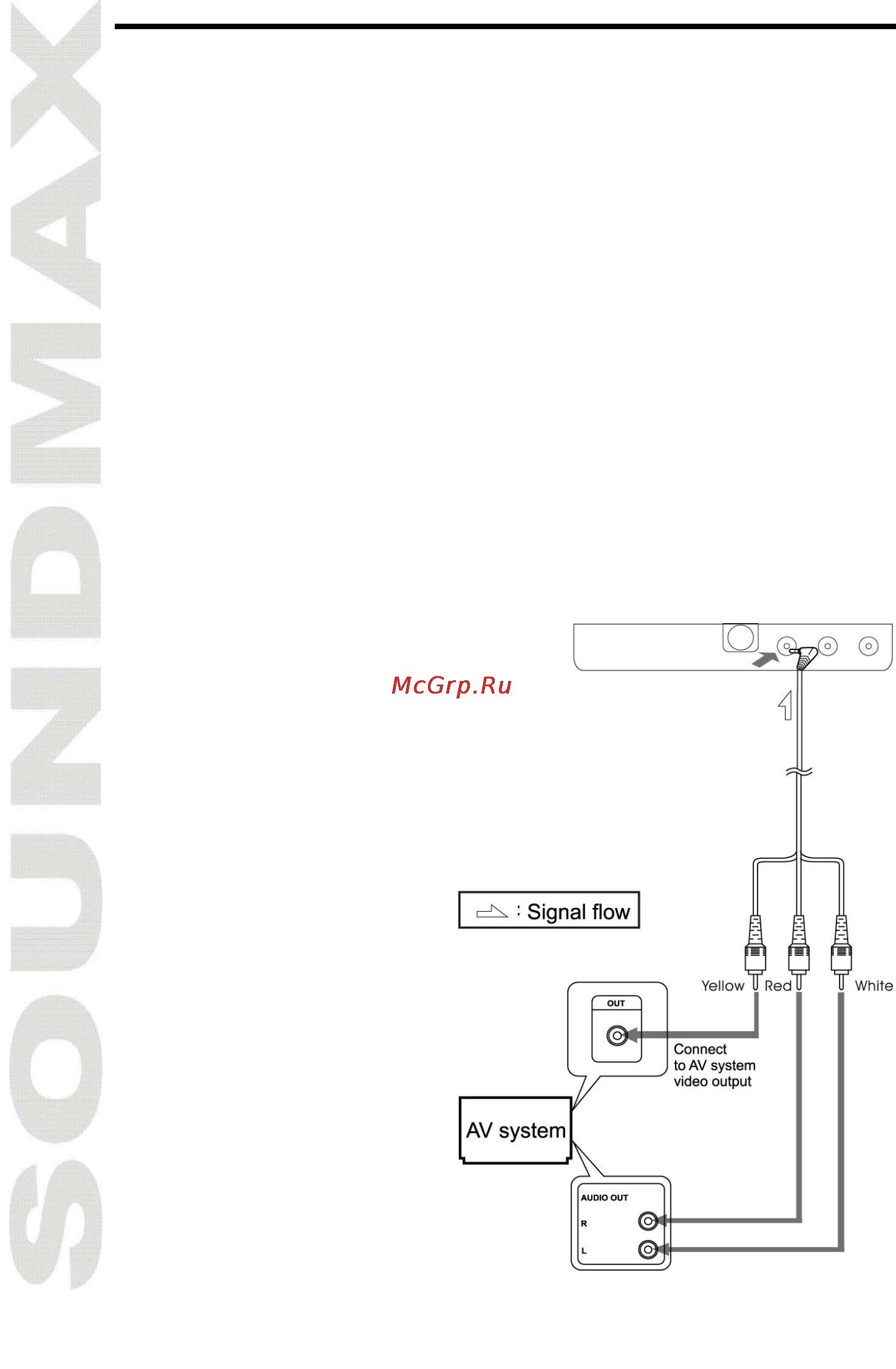

AV input connection

Connect the AV cable as showed in the

picture below. After connection, switch the

unit to the AV mode.
