Digitech SCOTT IAN BLACK 13 [17/20] Battery replacement diagram

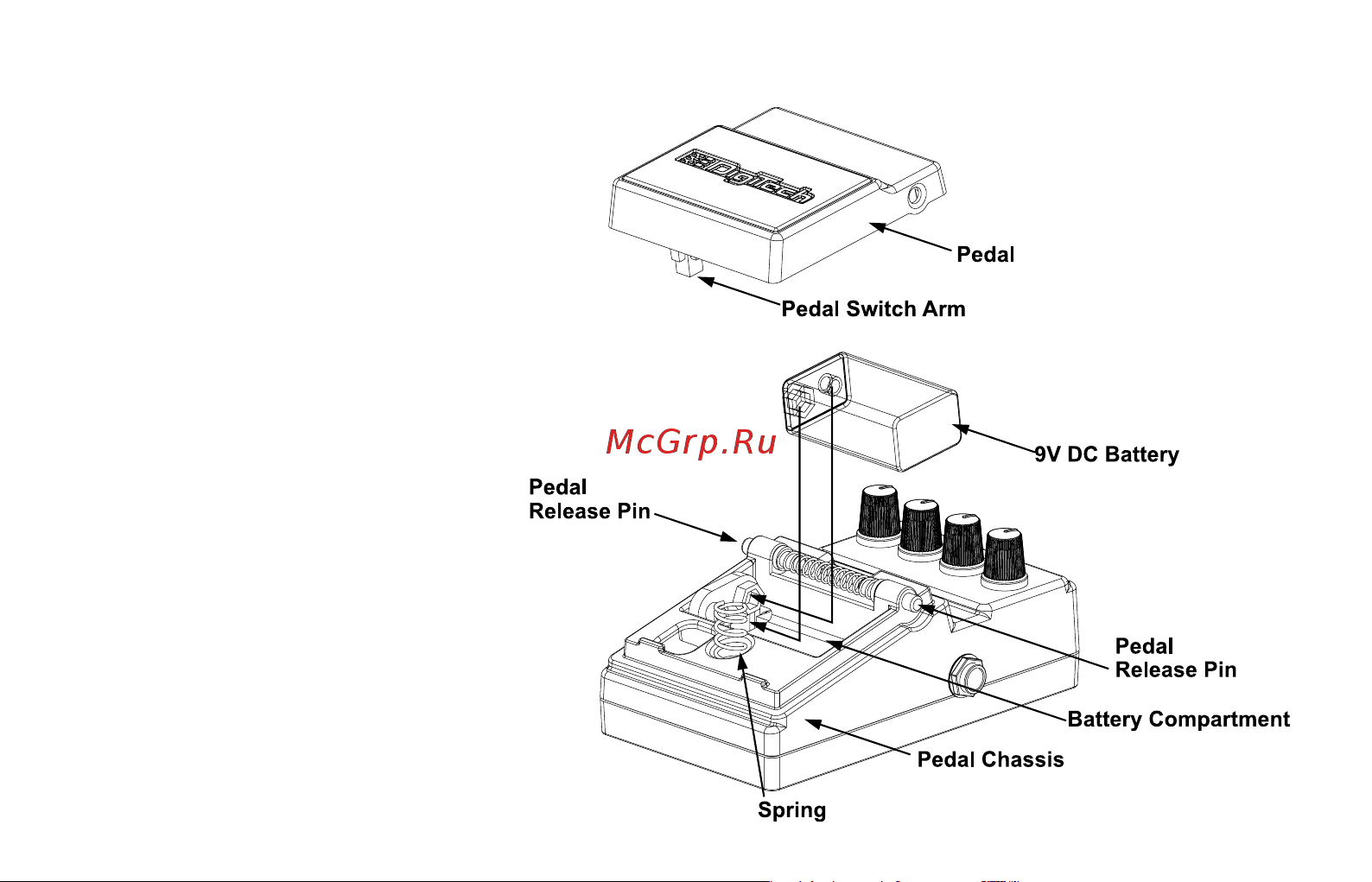

Battery Replacement Diagram

Specifications:

• Controls - LEVEL, CONTROL 1, CONTROL 2, MODEL, On/Off Pedal

• Jacks - INPUT, OUT 1 (AMP), OUT 2 (MIXER)

• Input Impedance - 1 MOhms

• Output Impedance - 100 Ohms

• Power Supply - Included DigiTech PS200R or 9V Alkaline Dry Battery

• Power Consumption - 0.75 Watts (w/PS200R power supply)

• Battery Life - Approximately 4 hours (with continuous usage)

• Dimensions - 4 15/16”(L) x 3 1/8”(W) x 2 1/8”(H)

• Weight - 2 lbs.

• Included Power Supply

PS200R - 100 (100V ~ 50/60Hz)

PS200R - 120 (120V ~ 60Hz)

PS200R - 230 (230V ~ 50Hz)

PS200R - 240 (240V ~ 60Hz)

Диаграмма Замены

Батареек














