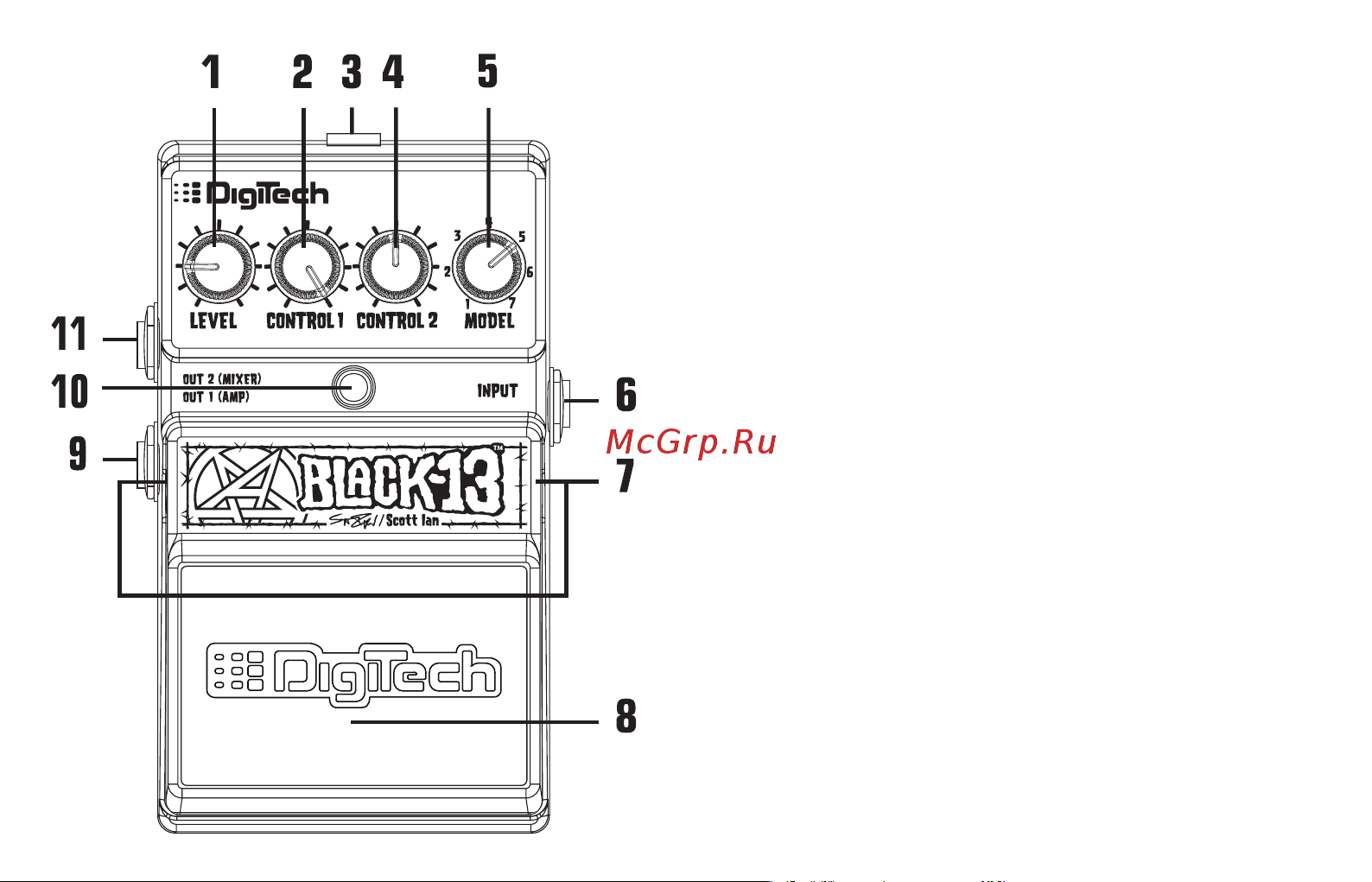

1. leVel




2. cONtrOl 1



3. Гнездо питания


4. cONtrOl 2


5. MODEL
Selects one of the seven different signa-
ture Scott Ian tones:
1.“I Am the Law”
2.“Madhouse”
3.“March of the S.O.D.”
4.“Protest and Survive”
5.“Room For One More”
6.“What Doesn’t Die”
7.“Finale”
Please refer to the Knob Function
Descriptions section on the following
pages for a more detailed explanation of
each model.
6. INPUT
Connect your instrument to this jack.
Connecting a guitar cable to this jack sup-
plies battery power even though the
Indicator LED may not be lit. To prolong
battery life, disconnect all cables when not
in use.
7. Pedal Release Pins
These two pins are spring-loaded hinges
that hold the pedal in place. Push these
pins in to release the pedal from the pedal
chassis exposing the battery compartment
and the serial number therein. (See the
Battery Replacement Diagram at the end
of this Owner’s Manual)
8. Pedal
Press the pedal to turn the effect on and
off.
9. OUT 1 (AMP)
Connect this output jack to your guitar
amplifier.
10. Indicator LED
This LED indicates when the effect is
turned on. If the LED becomes dim or
does not light when using battery power
(with the cables connected), the battery
needs to be replaced.
11. OUT 2 (MIXER)
This output has been specifically designed
for use with a full range audio system. It is
designed to be plugged directly into a
mixer or recording device for optimal
performance.
1. LEVEL
Controls the output level of the effect.
Turn this knob clockwise to increase the
output level, and counter-clockwise to
decrease the output level.
2. CONTROL 1
Controls Low Frequency Boost/Cut in
models 1-6, and the amount of pitch
shift in model 7.
3.AC Adapter Jack
Connect only the included DigiTech®
PS200R (9V DC) power supply to this
jack.
4. CONTROL 2
Controls High Frequency Boost/Cut in
models 1-6, and the delay length in
model 7.
