Epson GT-8500 [169/268] Timing charts

Timing charts

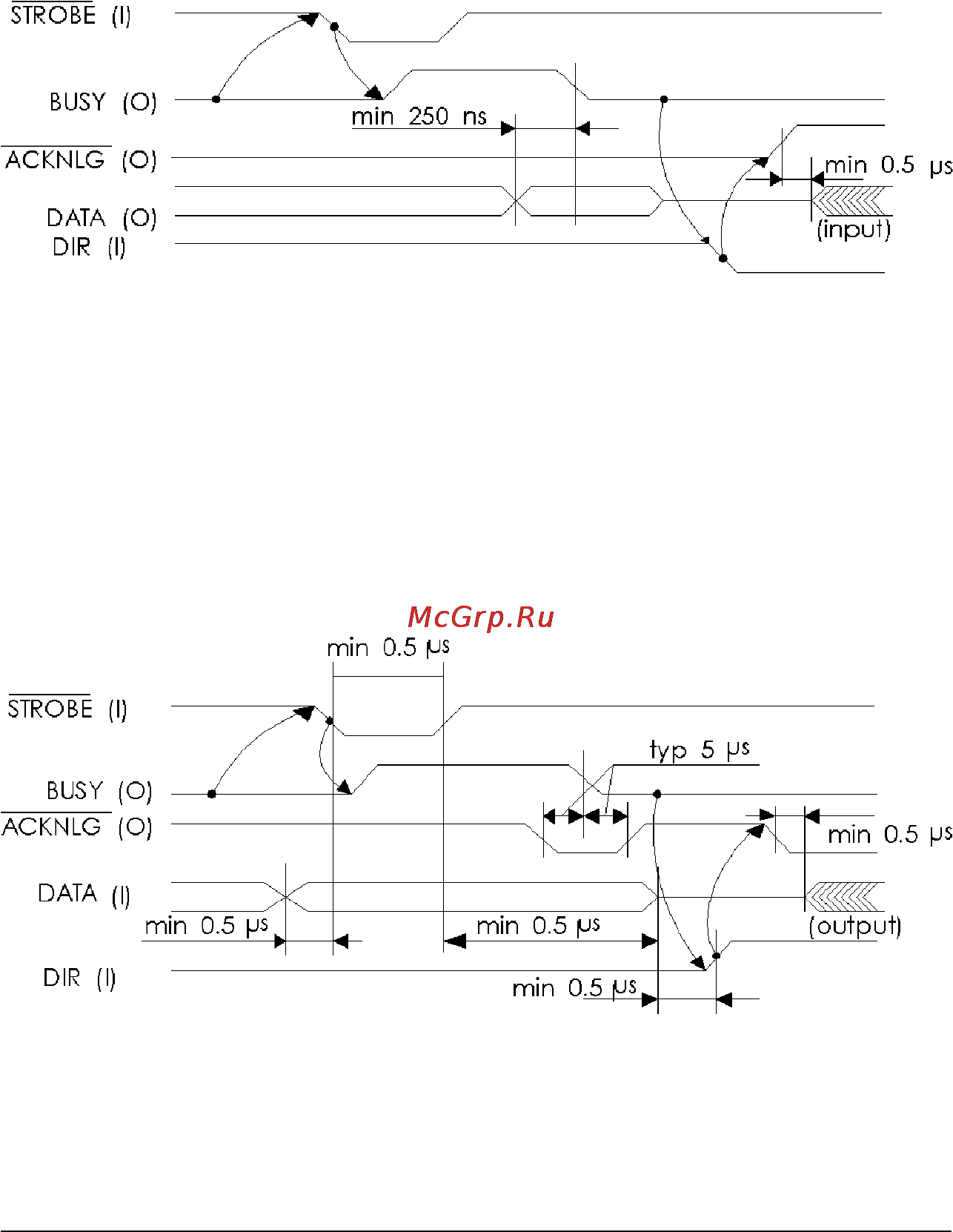

The figures below show the timing for the bi-directional parallel

interface.

OUT (Scanner to computer)

IN (Computer to scanner)

timechr1

timechr2

Interface Specifications A-7
