Ebara DWO 200 M [3/4] Open impeller centrifugal electric pumps

Your Life, our Quality. Worldwide. Commercial

The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

DWO

OPEN IMPELLER CENTRIFUGAL ELECTRIC PUMPS

in AISI 304

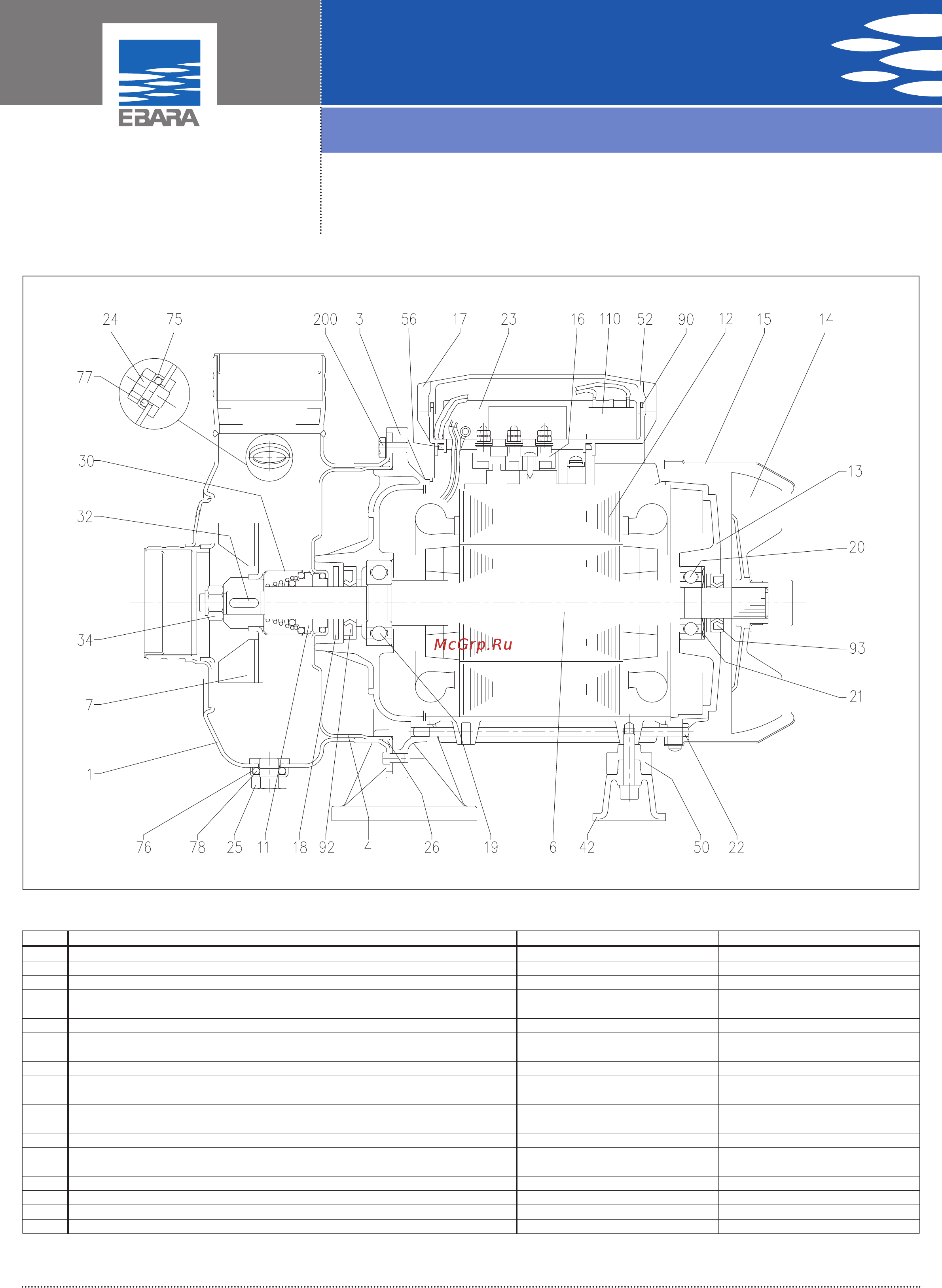

MATERIALS TABLE

Ref. Name Materials Ref. Name Materials

1 Pump casing EN 1.4301 (AISI 304) 25 Plug AISI 303

3 Motor bracket Aluminium 26 O-Ring [3] NBR

11 Mechanical seal Ceramic/Carbon/NBR 42 Motor support Aluminium

12 Motor frame - 50 Spacer -

13 Motor cover Aluminium 52 Terminal box [2] PP

14 Fan PP 56 Box gasket NBR

15 Fan cover Galvanised Fe P04 75 Washer EN 1.4301 (AISI 304)

16 Terminal box - 76 Washer EN 1.4301 (AISI 304)

17 Terminal box cover [1] Aluminium 77 O-Ring NBR

18 Splash ring NBR 78 O-Ring NBR

19 Bearing (pump side) - 90 Terminal box cover gasket [2] NBR

20 Bearing (motor side) - 92 Seal ring -

[3]= FPM for H-HS-HW-HSW versions
