Ebara CMD 2.00 T [7/8] Cma b c d cmr

Your Life, our Quality. Worldwide. 22 Residential

CCMMAA -- BB -- CC -- DD -- CCMMRR

SINGLE IMPELLER CENTRIFUGAL ELECTRIC PUMPS

in cast iron

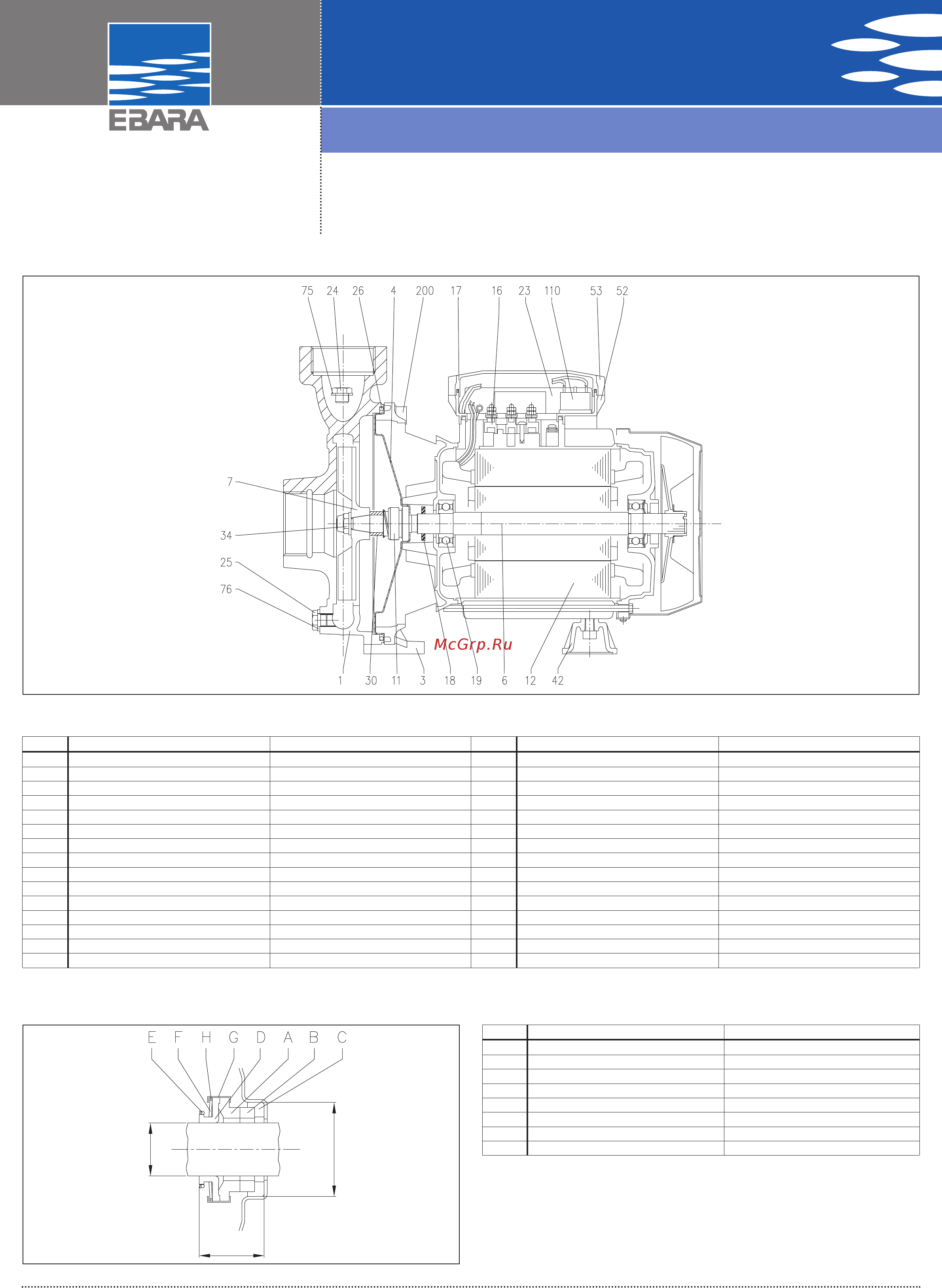

ECTIONAL VIEW

for CMR

MATERIALS TABLE

Ref. Name Material Ref. Name Material

1 Pump body Cast iron 21 Adjusting ring Steel C70

3 Motor support Aluminium 22 Tie-rod Galvanised Fe 42

4 Seal housing disc AISI 304 23 Capacitor [2] -

6 Rotor shaft AISI 420 24 Filler cap Brass

7 Impeller Brass 25 Drain plug Brass

11 Mechanical seal Carbon/Ceramic/NBR 26 O-Ring NBR

12 Motor case - 30 Seal spacer Brass

13 Motor cover [1] Aluminium 34 Impeller nut AISI 304

14 Fan Polypropylene 42 Foot PVC

15 Fan cover Galvanised Fe P04 52 Capacitor-holder box [2] Polypropylene

16 Terminal box - 53 Capacitor-holder box cover [2] Polypropylene

17 Terminal box cover [1] Aluminium 75 Washer Aluminium

18 Spray protector ring NBR 76 Washer Aluminium

19 Bearing (pump side) - 200 Screw (pump body) A2 UNI7323 stainless steel

20 Bearing (motor side) -

[1]= For three phase only [2]= For single phase only

MECHANICAL SEAL for CMR

Ø13

18,3

Ø26

MATERIALS TABLE

Ref. Name Material

A Rotating part Carbon

B Fixed part Ceramic

C Gasket NBR

D Diaphragm NBR

E Ring AISI 304

F Spring AISI 304

G Structure/frame AISI 304

H Retainer ring AISI 304
