TECHNICAL DATA
/// HRC 2 basic, Ident. No. 0025003742 |
HRC 2 control, Ident. No. 0025004524
Heat output (230 V) 1,500 W
Working temperature range
- 20 °C to +100 °C |
- 30 °C* to +100 °C
Max. flow rate (at 0 bar) 21 l/m
Pump power (pressure) 0.5 bar
Pump power (suction) 0.2 bar
Temperature Cooling power HRC 2
+ 20 °C 400 W
+ 10 °C 370 W
0 °C 320 W
- 10 °C 240 W
- 20 °C 130 W
COOLING POWER
/// HRC 2 basic, Ident. No. 0025003742 |
HRC 2 control, Ident. No. 0025004524
* - 30 °C possible at 2,000 rpm.

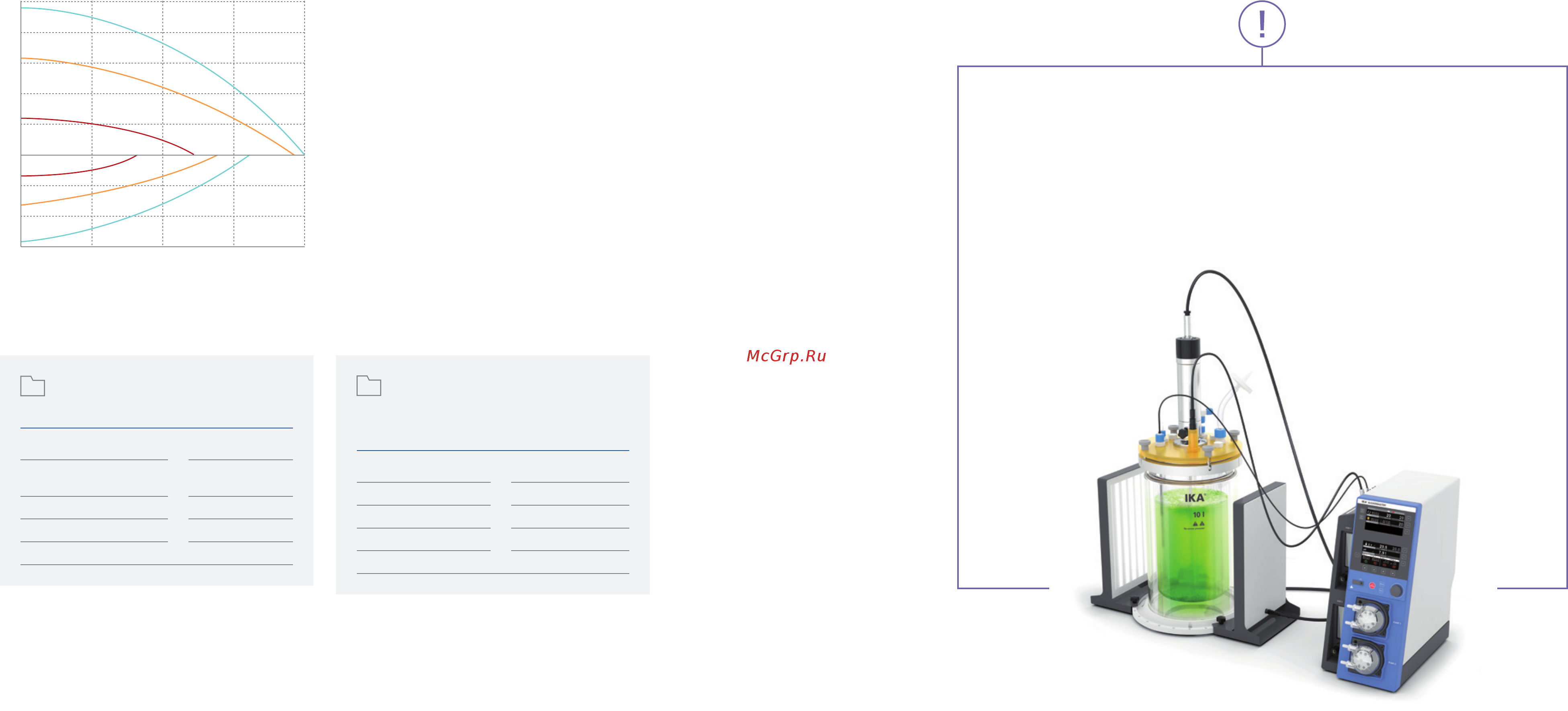

Pump curve: HRC 2 control & basic
Measurement in accordance with DIN 12876-2
with water at + 20 °C, closed pump circuit.
APPLICATION EXAMPLE
The example shows a double-walled 10 l glass reactor for growing algae.
The HRC 2 is well suited for achieving constant temperature conditions inside the reactor in order to
achieve a high/controlled growth rate of the algae formation. Applications requiring critical temperature cont-
rol, the temperature can be directly controlled in the medium by using the HRC 2 control with an
external temperature measurement sensor.
Flow rate [l/min]
Pressure/suction [bar]
300
400
500
200
100
- 100
- 200
- 300
0 5 10
15 20
0
2,000 rpm
4,000 rpm
3,200 rpm
36
37
