26 Additional Information
Sony KV-SR292M99K GRP R9 (GB, RU)_2-663-700-11 (1)
continued
134
RLY
C
B
C
R
Audio system
VCR
Audio/Video
cable
(not supplied)

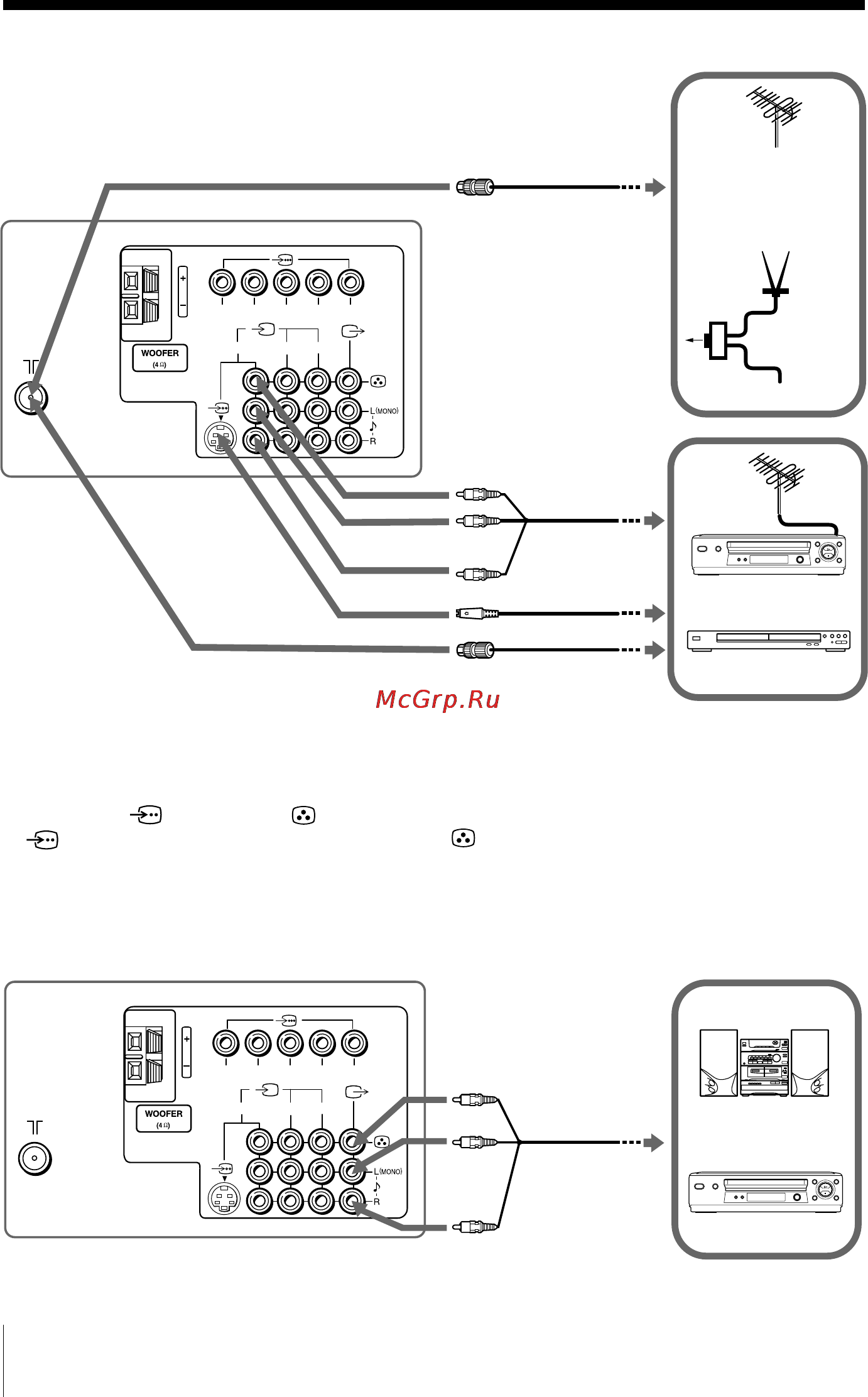

Connecting to the monitor output terminal ( T )
TV rear panel
Notes
If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 23).
When both (S video) and (video) for
t1
are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
VCR
Audio/Video
cable
(not supplied)
Antenna cable
(not supplied)
TV rear panel
S Video cable
(not supplied)
DVD player
134
RLY
C
B
C
R
Antenna cable
(not supplied)
TV, CATV, Satellite
or
When there is no
FM signal
Antenna
selector
FM signal
TV signal
01GB07ADJ-SOEMRus.p65 9/9/05, 5:32 PM26
Black
