Calibration

The 76634-00 Multi-Function Meter is not eld

repairable. The meter should be returned to the

factory for repair or recalibration.

Ransburg recommends that the Multi-Function

Meter and its associated equipment (Paint probe,

kV Probe, and/or Test Leads) be sent in together

for recalibration at least once per year.

 The best recalibration results the

Multi-Function Meter and accesories

(Paint probe, kV Probe, and/or Test

Leads) should be sent in together for

recalibration.

When shipped from the factory, and

after each calibration, the Multi-Function

Meter will be sealed with a calibration

sticker noting the next date when

calibration expires. Removal of this

seal will void calibration of the unit.

A certicate of calibration will also be

shipped with each calibrated unit.

NOTE

GENERAL MAINTENANCE

Maintenance - Battery Replacement

When required, the battery will need to be replaced.

It may be purchased locally and is a standard

alkaline type 9V battery. To replace the battery,

perform the following steps (refer to Figure 11).

1. Remove the sliding back cover of the meter.

2. Remove the existing battery from the two (2)

prong 9V connector.

3. Replace with new alkaline 9V battery.

4. Replace back cover.

5. Appropriately discard used battery.

 The screen will go blank when the

battery needs to be replaced.

NOTE

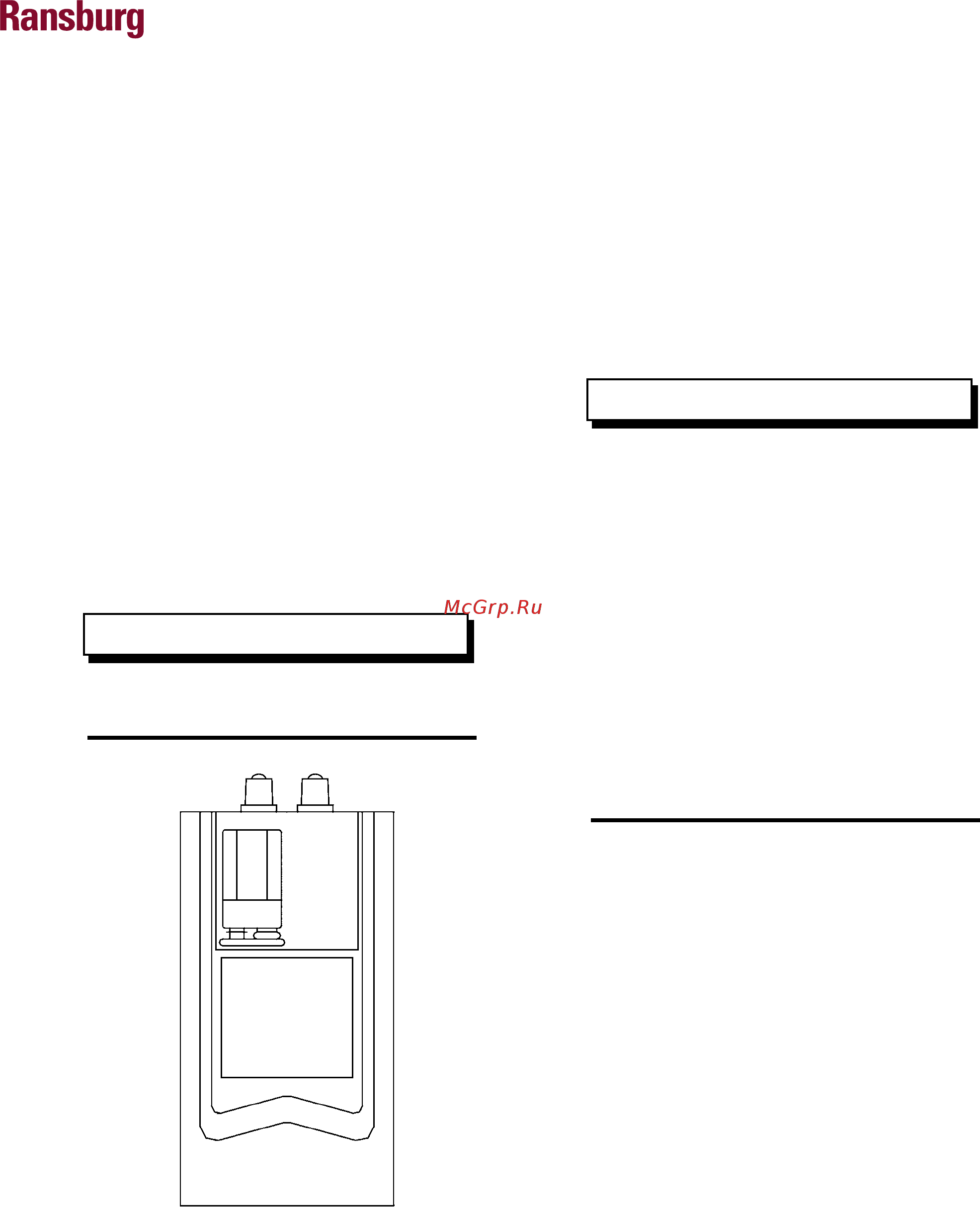

Figure 11: Battery Replacement
