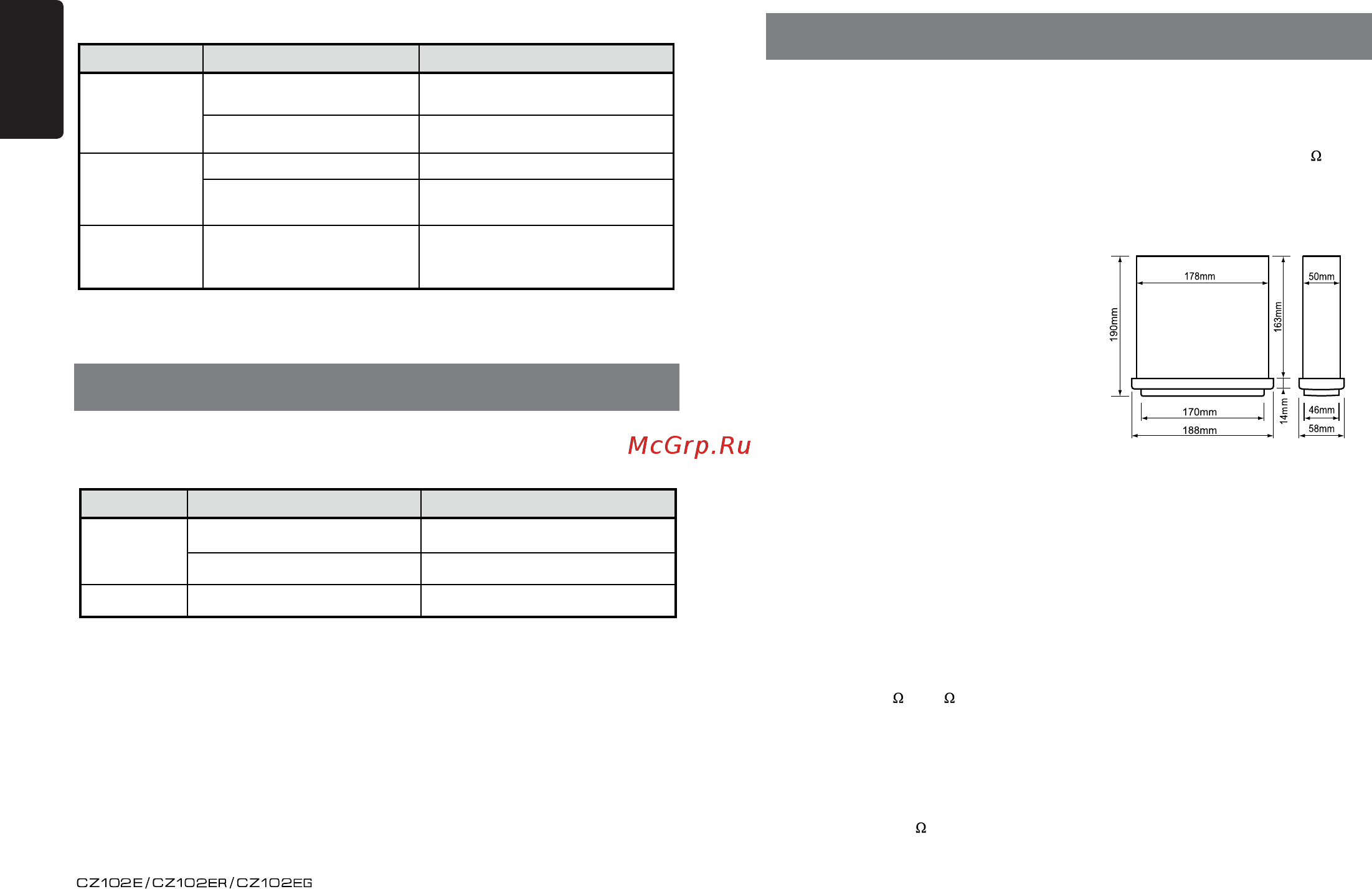

Clarion CZ102ER [10/14] Error displays
![Clarion CZ102EG [10/14] Error displays](/views2/1551918/page10/bga.png)
English
9
7. ERROR DISPLAYS
DISC Player
Problem Cause Measure
Disc cannot be
loaded.
Another disc is already loaded.
Eject the disc before loading the new
one.
There is an object install inside
the unit.
Remove the object inside the unit.
Sound skips or is
noisy.
Compact disc is dirty. Clean the compact disc with a soft cloth.
Compact disc is heavily scratched
or warped.
Replace with a compact disc with no
scratches.
Sound is bad
when power is rst
turned on.
Condensation may form on the
internal lens when the car is
parked in a humid place.
Let dry for about 1 hour with power on.
Display Cause Measure
ERROR 3
Disc is inserted incorrectly. Eject the disc then reload it properly.
The disc format is not supported. Try another disc.
ERROR 5 This is a failure of deck’s mechanism. Consult your store of purchase.
If an error occurs, one of the following displays is displayed.
Take the measures described below to solve the problem.
If an error display other than the ones described above appears, press the [RESET] button. If
the problem persists, turn off the power and consult your store of purchase.
* When the [RESET] button is pressed, preset radio stations, titles, etc. stored in memory are
kept.
FM Tuner
Frequency range: 87.5-108.0MHz
Usable sensitivity: 8dBf
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
MW Tuner
Frequency range: 531-1602kHz
Usable sensitivity (S/N=20dB): 34dBμ
LW Tuner
Frequency range: 153-279kHz
Usable sensitivity (S/N=20dB): 34dBμ
CD Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >94dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
Joliet le system
Audio Amplier
Maximum power output:
180W (45W x 4)
Speaker impedance: 4
(4 to 8 allowable)
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 k
or greater)
Aux-in level: ≤2V
8. SPECIFICATIONS
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
2.0V (CD play mode: 1kHz, 0dB, 10k
load)
Fuse: 15A
Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
Weight of the Main Unit: 1.30kg
Note:
• Specifications and design are subject
to change without notice for further
improvement.
