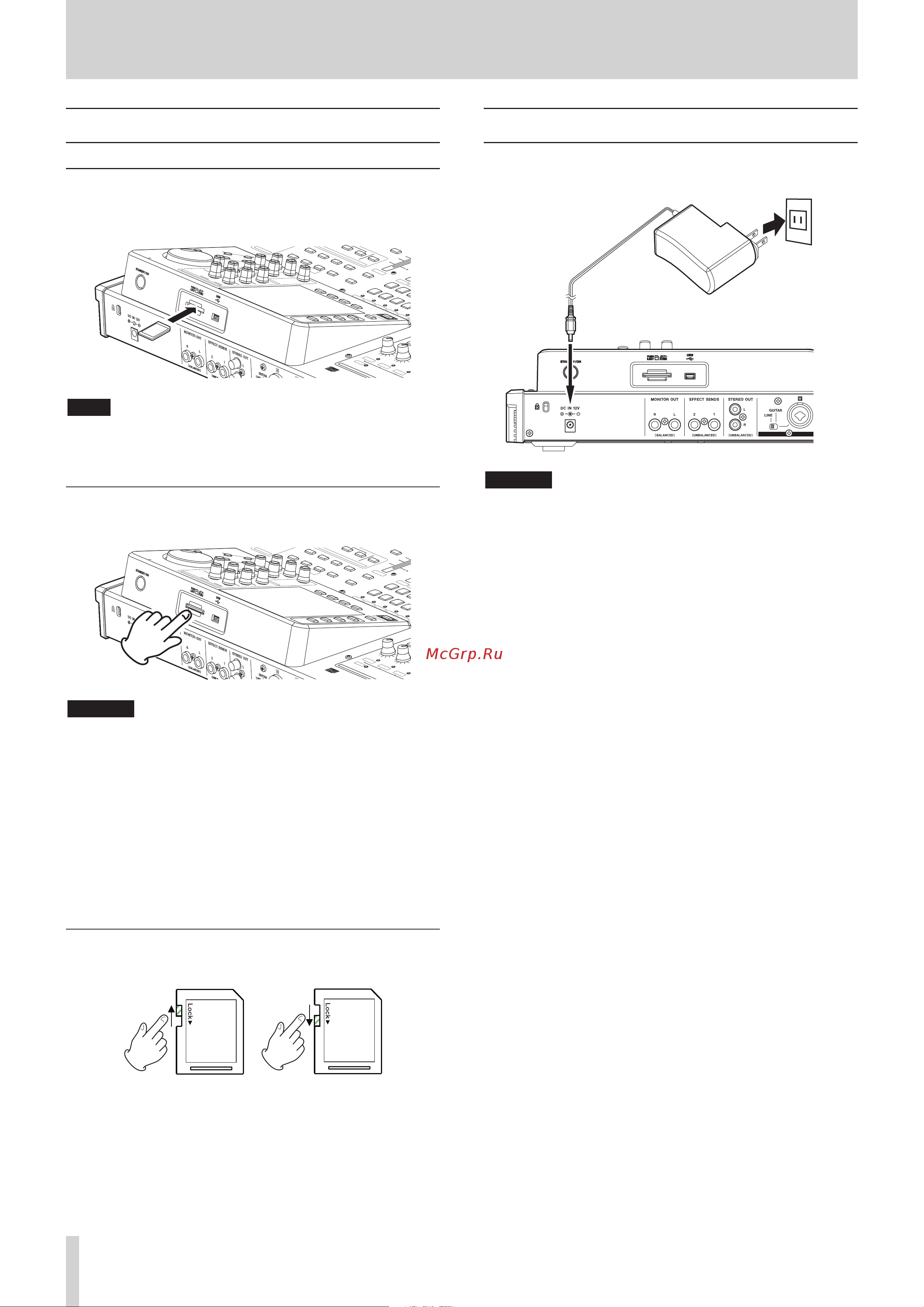

24 TASCAM DP-32SD
4 – Preparation
Inserting and removing SD cards
Inserting an SD card
Insert the SD card into the SD card slot on the rear panel as
shown in the illustration until it clicks into place.
NOTE
An SD card is already in the SD card slot when the unit is shipped
from the factory. If you want to use this card to record and play
tracks, there is no need to reinsert it.
Removing the card
Push the loaded card in gently to eject it.
CAUTION
•
Always turn the power off (put in standby) before removing
an SD card.
•
If you remove or insert an SD card when the power is on,
recorded data could be lost permanently.
•
SD and SDHC cards that are at least 512 MB in size can be
used.
•
A list of SD cards that have been confirmed for use with
this unit can be found on our web site. Please access to a
product page of this product from the TEAC Global Site
(http://teac-global.com) to find the list or contact the
TASCAM customer support service.
About write-protected SD cards
SD cards have write-protect (lock) switches.
Unprotected Protected
When the protect switch is in the LOCK position, files cannot be
recorded or edited on the card. Slide the switch away from the
LOCK position if you want to record, erase or otherwise change
files on a card.
Powering the unit
As shown in the illustration, connect the included TEAC PS-
P1220E AC adaptor to the DC IN 12V jack.
AC outlet
DC plug
TEAC PS-P1220E
CAUTION
•
Always use the included TEAC PS-P1220E AC adaptor. Use
of a different adapter could cause malfunction, fire or
electric shock.
•
Be sure to use the included TEAC PS-P1220E AC adaptor to
supply power to this unit. Power cannot be supplied to this
unit by USB.
