Honeywell DH300-50A [4/5] Dimensions

DH300 - Pressure sustaining valve

4 Product Specification Sheet • EN0H-1331GE23 R0517 • Subject to change

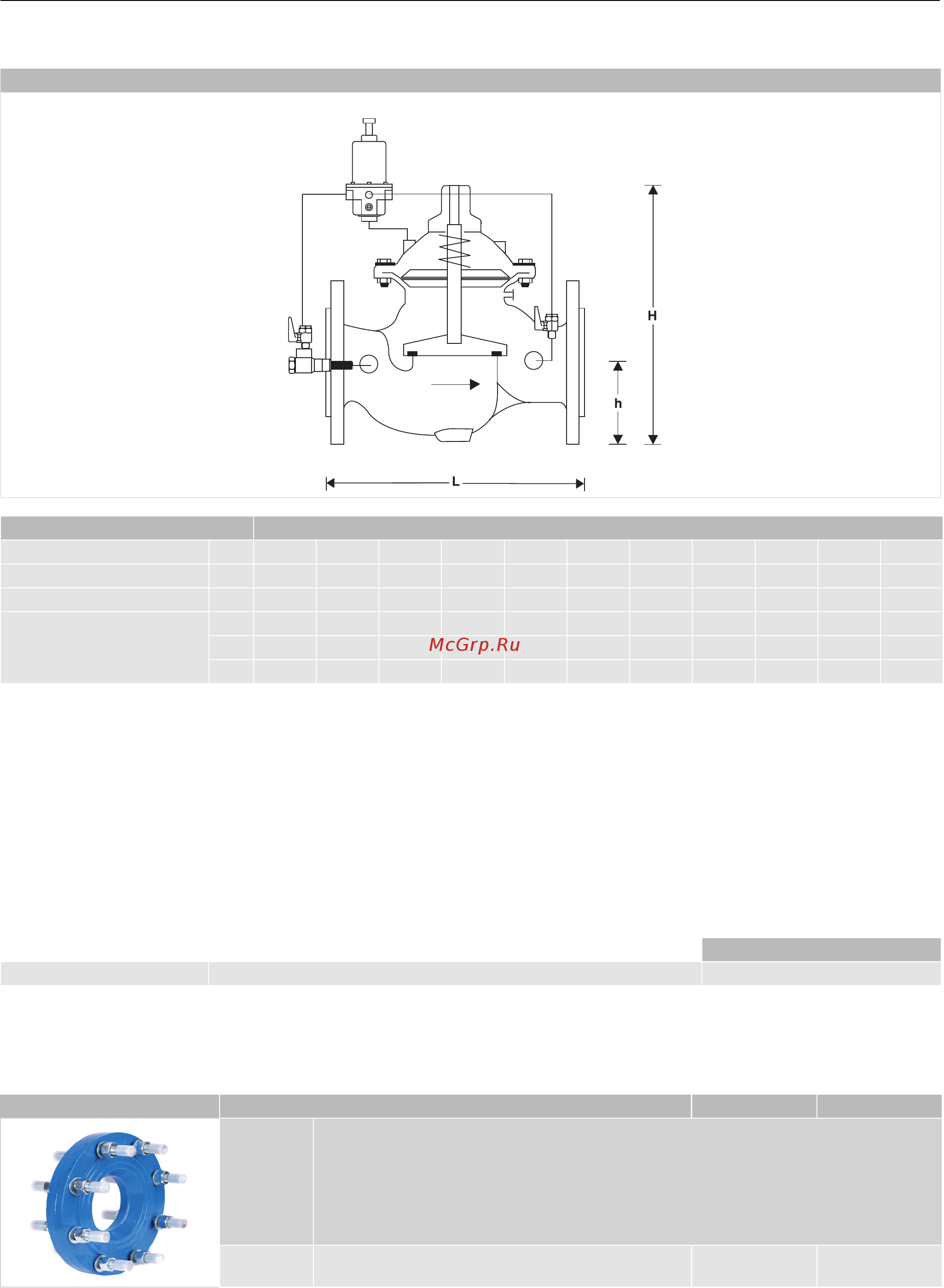

DIMENSIONS

Note: All dimensions in mm unless stated otherwise.

ORDERING INFORMATION

The following tables contain all the information you need to make an order of an item of your choice. When ordering, please

always state the type, the ordering or the part number.

Options

The valve is available in the following sizes: DN50, DN65, DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400

and DN450.

• standard

Note: ... = space holder for connection size

Note: Ordering number example for DN50 and type A valve: DH300-50A

Accessories

Overview

Parameter Values

Connection sizes: DN 50 65 80 100 150 200 250 300 350 400 450

Weight with pilot valve: kg 14.0 15.0 24.0 39.0 82.0 159.0 247.0 407.0 512.0 824.0 947.0

Weight without pilot valve: kg 12.0 13.0 22.0 37.0 80.0 157.0 245.0 405.0 510.0 822.0 945.0

Dimensions: L 230 292 310 350 480 600 730 850 980 1100 1200

H 270 280 330 350 480 570 730 870 910 1150 1170

h 83 93 100 110 143 173 205 230 260 290 310

DH300-...A

Connection type: Flange PN16, ISO 7005-2, EN 1092-2 •

Description Dimension Part No.

EXF125-A Extension flange DN125

Adapter flanges DN100 to DN125

Ductile iron, PN16 acc. ISO 7005-2 and EN 1092-2.

Overall length with adapter flanges (without bolts)

DN125 L=416mm, DVGW approved, including bolts, nuts and the seal disc.

EXF125-A
