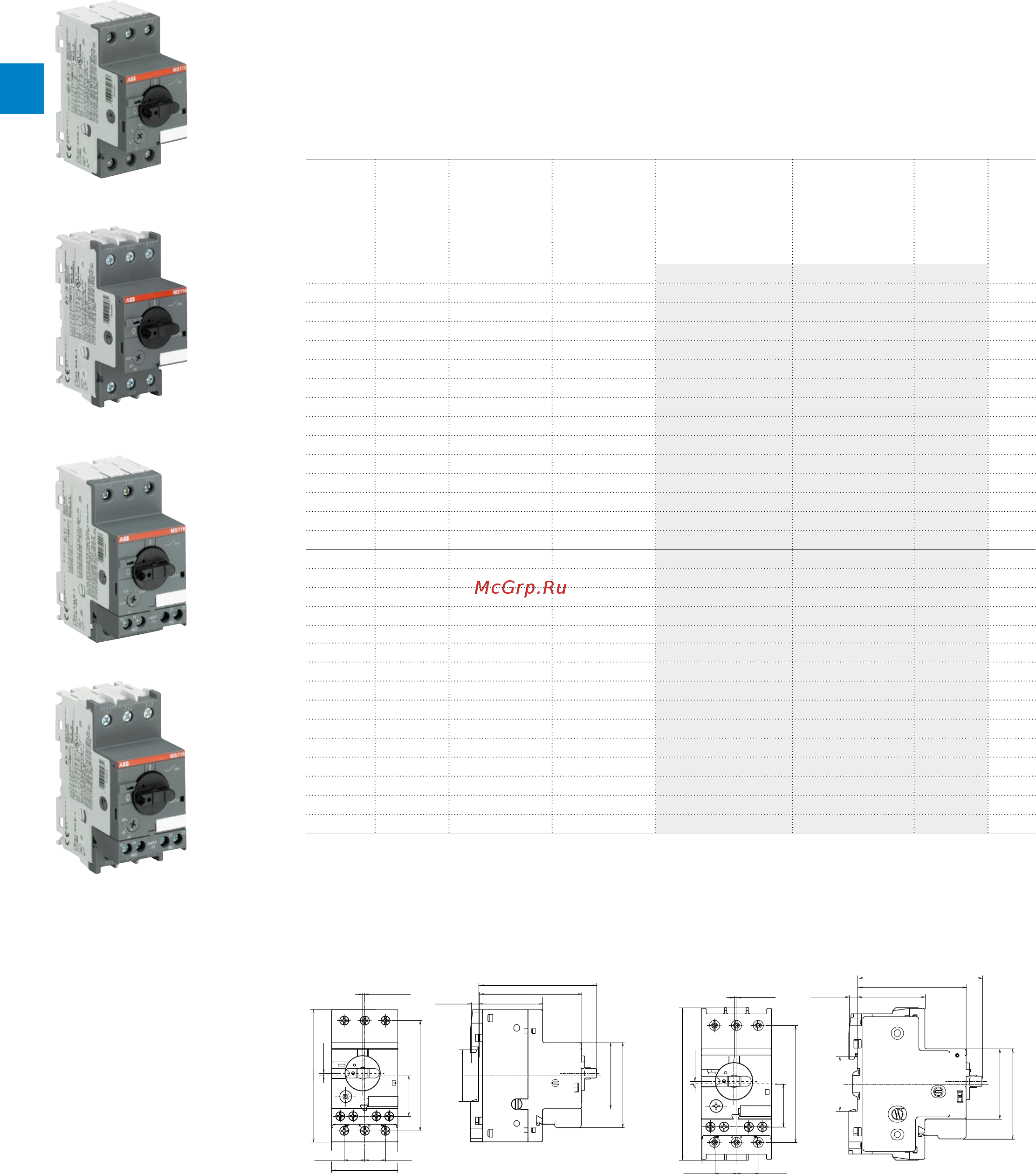

2/10 | ABB Motor protection and control - short form catalog
MS116 manual motor starters
0.10 to 32 A – with thermal and electromagnetic protection
Description
MS116 is a compact and economic range for motor protection up to 15 kW (400 V) / 32 A in width
of 45mm. Further features are the build-in disconnect function, temperature compensation, trip-free
mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable
for three- and single phase applications. Auxiliary contacts, signaling contacts, undervoltage releases,
shunt trips, power in-feed blocks and locking devices for protection against unauthorized changes are
available as accessory. These are suitable throughout the MS116/MS132/MS165-range.
Ordering details
Rated
operational
power
400 V
AC-3
Setting
range
Short-circuit
breaking
capacity I
CS
at
400 V AC
Rated instan-
taneous short-
circuit current
setting l
i
Type Order code Weight
(1 pce)
kW A kA A kg
0.03
2)
0.10 ... 0.16 50 2.00
1)
MS116-0.16 1SAM250000R1001 0.225
0.06 0.16 ... 0.25 50 3.10
1)
MS116-0.25 1SAM250000R1002 0.225
0.09 0.25 ... 0.40 50 5.00
1)
MS116-0.4 1SAM250000R1003 0.225
0.18 0.40 ... 0.63 50 7.90
1)
MS116-0.63 1SAM250000R1004 0.225
0.25 0.63 ... 1.00 50 12.5
1)
MS116-1.0 1SAM250000R1005 0.225
0.55 1.00 ... 1.60 50 20.0
1)
MS116-1.6 1SAM250000R1006 0.265
0.75 1.60 ... 2.50 50 31.3
1)
MS116-2.5 1SAM250000R1007 0.265
1.50 2.50 ... 4.00 50 50.0 MS116-4.0 1SAM250000R1008 0.265
2.20 4.00 ... 6.30 50 78.8 MS116-6.3 1SAM250000R1009 0.265
4.00 6.30 ... 10.0 50 150 MS116-10 1SAM250000R1010 0.265
5.50 8.00 ... 12.0 25 180 MS116-12 1SAM250000R1012 0.265
7.50 10.0 ... 16.0 16 240 MS116-16 1SAM250000R1011 0.265
7.50 16.0 ... 20.0 10 300 MS116-20 1SAM250000R1013 0.310
11.0 20.0 ... 25.0 10 375 MS116-25 1SAM250000R1014 0.310
15.0 25.0 ... 32.0 10 480 MS116-32 1SAM250000R1015 0.310
0.03
2)
0.10 ... 0.16 50 2.00
1)
MS116-0.16-HKF1-11 1SAM250005R1001 0.240
0.06 0.16 ... 0.25 50 3.10
1)
MS116-0.25-HKF1-11 1SAM250005R1002 0.240
0.09 0.25 ... 0.40 50 5.00
1)
MS116-0.4-HKF1-11 1SAM250005R1003 0.240
0.18 0.40 ... 0.63 50 7.90
1)
MS116-0.63-HKF1-11 1SAM250005R1004 0.240
0.25 0.63 ... 1.00 50 12.5
1)
MS116-1.0-HKF1-11 1SAM250005R1005 0.240
0.55 1.00 ... 1.60 50 20.0
1)
MS116-1.6-HKF1-11 1SAM250005R1006 0.280
0.75 1.60 ... 2.50 50 31.3
1)
MS116-2.5-HKF1-11 1SAM250005R1007 0.280
1.50 2.50 ... 4.00 50 50.0 MS116-4.0-HKF1-11 1SAM250005R1008 0.280
2.20 4.00 ... 6.30 50 78.8 MS116-6.3-HKF1-11 1SAM250005R1009 0.280
4.00 6.30 ... 10.0 50 150 MS116-10.0-HKF1-11 1SAM250005R1010 0.280
5.50 8.00 ... 12.0 25 180 MS116-12.0-HKF1-11 1SAM250005R1012 0.280
7.50 10.0 ... 16.0 16 240 MS116-16.0-HKF1-11 1SAM250005R1011 0.280
7.50 16.0 ... 20.0 10 300 MS116-20-HKF1-11 1SAM250005R1013 0.326
11.0 20.0 ... 25.0 10 375 MS116-25-HKF1-11 1SAM250005R1014 0.326
15.0 25.0 ... 32.0 10 480 MS116-32-HKF1-11 1SAM250005R1015 0.326
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.
1)
The data is valid for products, produced after week 34, 2014.
2)
690 V
2CDC241010F0011
MS116-16
2CDC241001F0011
MS116-25
2CDC241013F0011
MS116-0.16-HKF1-11
2CDC241012F0011
MS116-32-HKF1-11
Main dimensions mm, inches
0.06"
0.07"
0.55"
3.54"
1.77"
0.55"
1.38"
0.22"
1.77"
2.3"
2.76"
1.71"
3.15"
1.1"
2.95"
1.5
1.7
14 14
90
45
35
5.5
45
57.8
70
43.5
80.1
27.5
75
2CDC242002F0010
1.77"
2.3"
1.38"
0.22"
2.75"
1.7"
3.15"
0.55"
2.95"
3.85"
1.77"
0.55"
0.06"
0.07"
1.1"
45
57.8
35
5.5
69.8
43.3
79.9
14 14
75
97.8
45
1.5
1.7
27.5
2CDC242001F0011
MS116 ≤ 16 A & MS116-HKF1-11 ≤ 16 A MS116 ≥ 20 A & MS116-HKF1-11 ≥ 20 A
2
Time) Time) Time)
