ABB ACS550-01-04A1-4 [11/44] Power drive system
![ABB ACS550-01-04A1-4 [11/44] Power drive system](/views2/1556714/page11/bgb.png)
Technical guide No. 3 | EMC compliant installation and configuration for a PDS 11

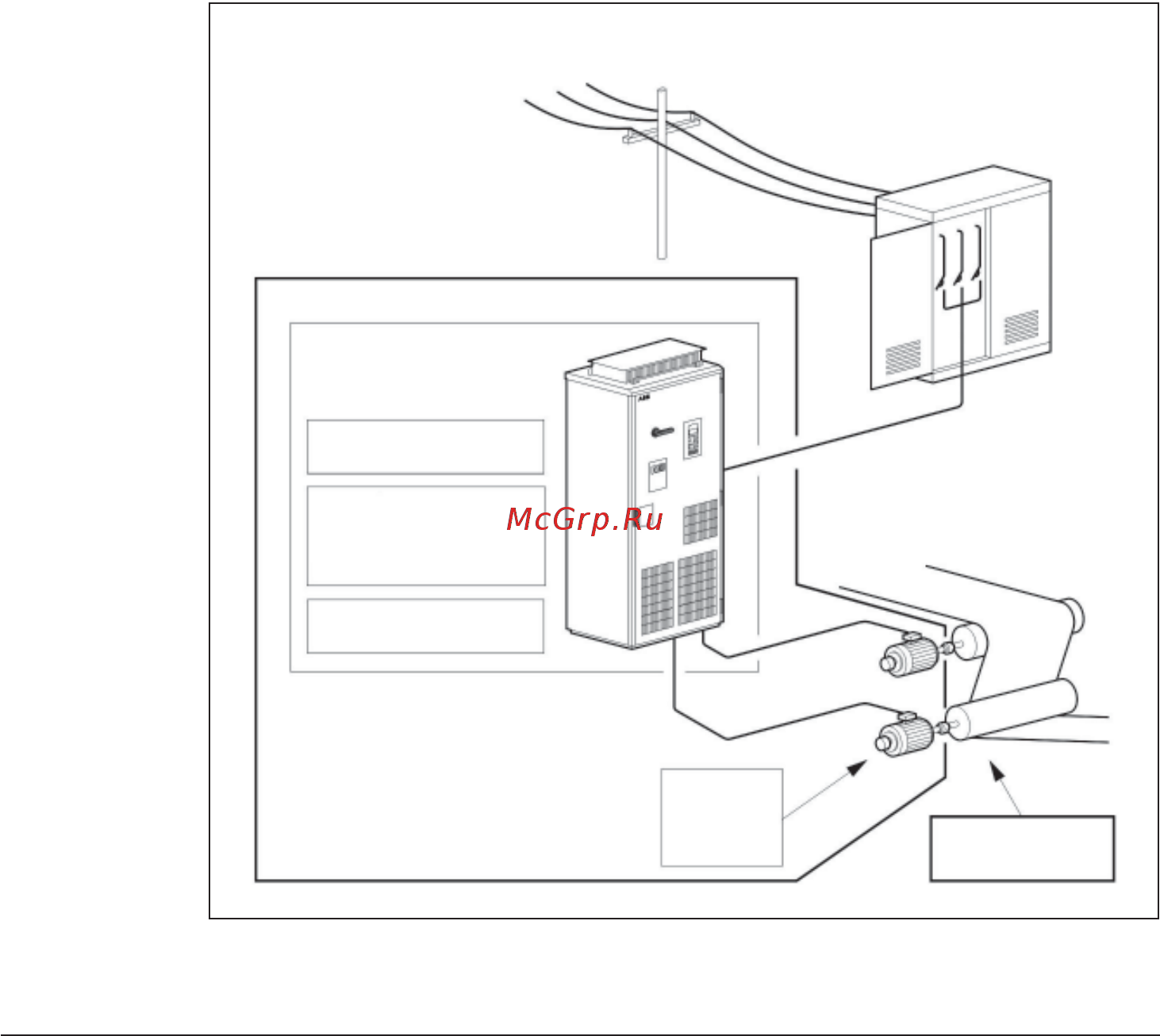

Installation or part of installation
Power drive system PDS
Basic drive module
BDM control, converter
and protection
Feeding section
auxiliaries and others
Motor
and
sensors
Driven
equipment
Complete drive module CDM
System control and
sequencing
Power drive system
The parts of a variable speed drive controlling driven equip-
ment as a part of an installation are described in EMC Product
Standard EN 61800-3. A drive can be considered as a basic
drive module (BDM) or complete drive module (CDM) according
to the standard.
It is recommended that personnel responsible for design and
installation have this standard available and be familiar with this
standard. All standards are available from the national stand-
ardization bodies.
Systems made by an OEM or panel builder can consist more
or less of the PDS parts alone, or there can be many PDSs in
a configuration.
The solutions described in this guide are used within the definition
of power drive system, but the same solutions can, or in some
cases, should, be extended to all installations. This guide gives
principles and practical EMC examples, which can be applied
to a user’s system.
Figure 2-2 Abb reviations used in drives.
