Technical guide No. 3 | EMC compliant installation and configuration for a PDS 31
Product specific manual
Motor cable
Mains cable
Signal / control cables
Control cables and cabling
The control cabling is a part of the Faraday cage as described
in the section Conductive gaskets with control cables.
In addition to correct HF earthing there are some basic rules for
control cabling:
– Always use shielded twisted pair cables:
– double-shielded cable for analogue signals
– single-shielded for other signals is acceptable, but double-
shielded cable is recommended.
– Don’t run 110/230 V signals in the same cable as lower signal
level cables.
– Keep twisted pairs individual for each signal.
– Earth directly on the frequency converter side.
If instructions for the device at the other end of the cable specify
earthing at that end, earth the inner shields at the end of the more
sensitive device and the outer shield at the other end.
Route signal cables according to figure 3-12 whenever possible,
and follow instructions given by the product specific manuals.

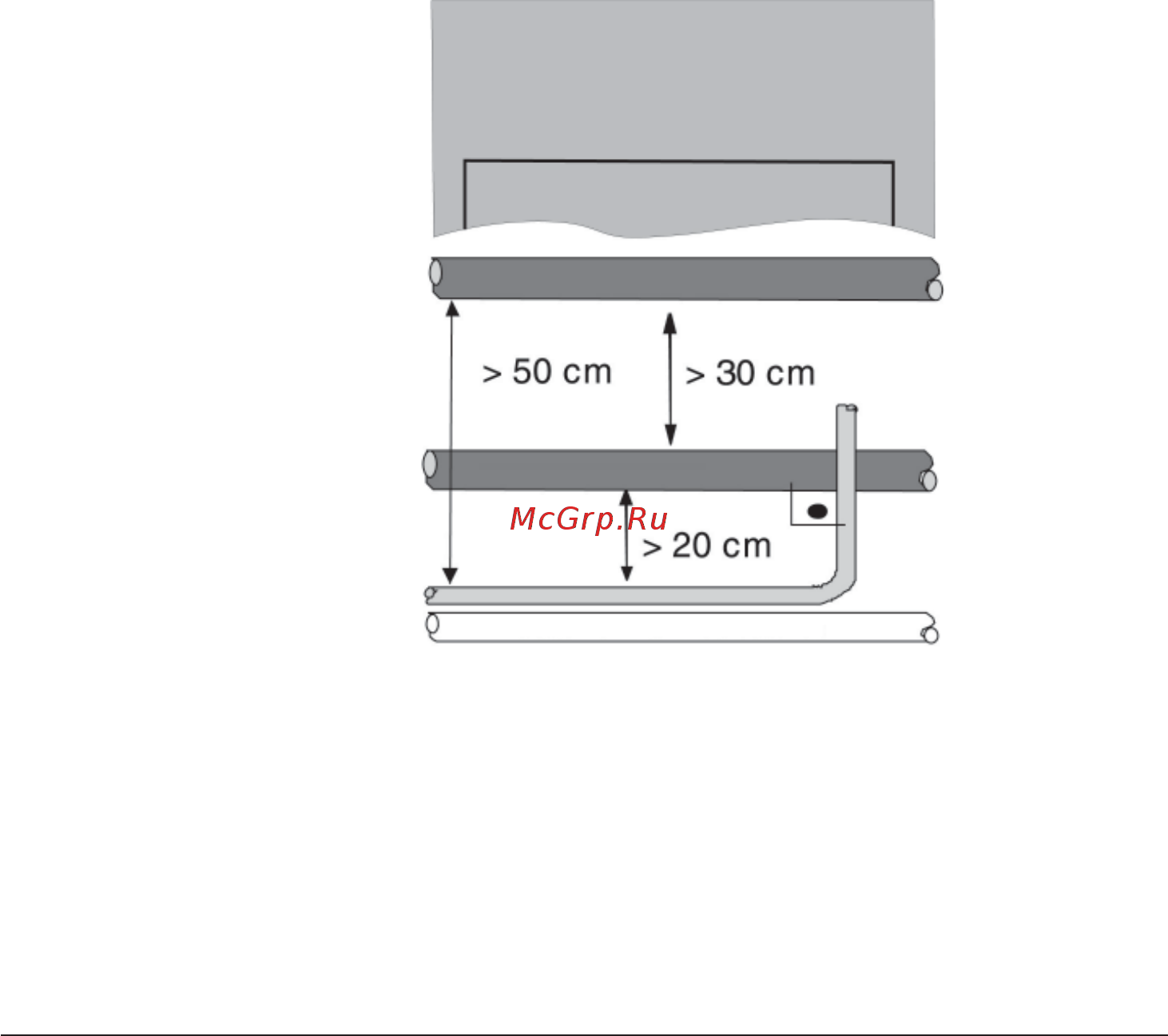

Figure 3-12 Routing principles of control cables.
There is more about control cabling in the “Grounding and cabling
of the drive system” documents” and in product specific manuals.
