ABB ACS355-01E-06A7-2 [11/30] Installing abb control builder ac500
![ABB ACS355-01E-06A7-2 [11/30] Installing abb control builder ac500](/views2/1557092/page11/bgb.png)
Configuration 11
Installing ABB Control Builder AC500
This section describes how to install the Control Builder and a driver for the TK503/504
cable.
Note: For more information on the cable driver installation, see
\CD_AC500\Driver\TK503_TK504\TK503_TK504_Driver_Installation.pdf on the
installation CD.
1. Insert the installation CD of ABB PS501 Control Builder.
The CD automatically starts the installation program. A new window opens.
2. Click Installation PS501.
The installation begins.
3. Follow the steps in the installation wizard.
Once the installation is finished, you return to the main menu.
4. Click Tools.
5. Click TK503 + TK504 cable driver.
The TK503_TK504 programming cable Driver Installer window opens.
6. Click Install.
The installation begins.
Installing PS553-DRIVES libraries
Note: ABB PS501 Control Builder must be installed first.
1. Remove the SD memory card from the AC500-eCo and insert it in
the memory card reader of the PC.

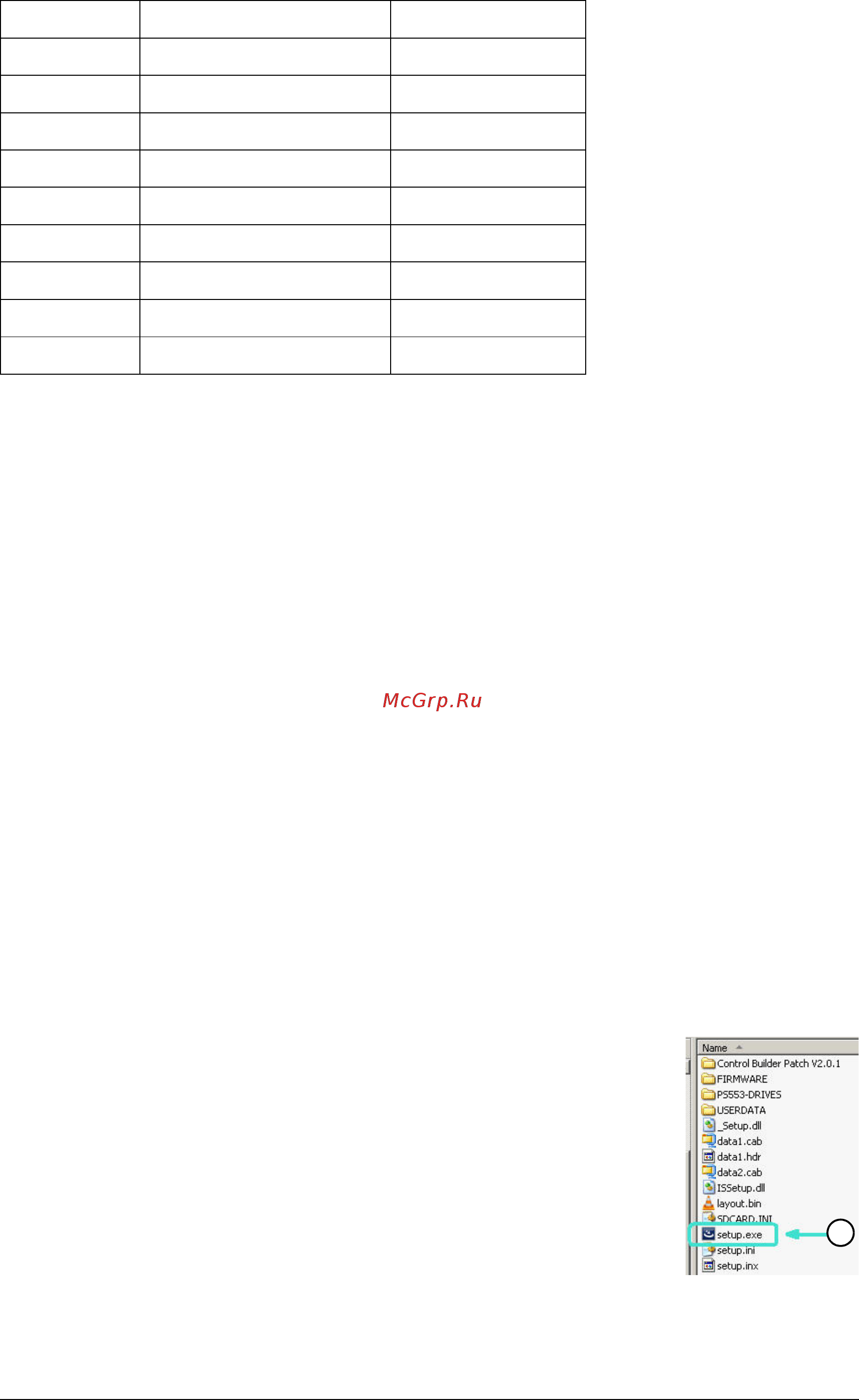

2. In the root directory of the SD memory card, open setup.exe.
3. Follow the steps of the setup wizard.
Libraries, examples and the online help are copied to the hard drive of
the PC.
2201 ACC/DEC 1/2 SEL NOT SEL (0)
3018 COMM FAULT FUNC FAULT (1)
5302 EFB STATION ID 2
5303 EFB BAUD RATE 19.2 kbit/s (192)
5304 EFB PARITY 8 NONE 1 (1)
5305 EFB CTRL PROFILE ABB DRV FULL (2)
5310 EFB PAR 10 101
5311 EFB PAR 11 303
5312 EFB PAR 12 305
9802 COMM PROT SEL STD MODBUS (1)
2
