12 Configuration
Configuring communication parameters
The below instructions demonstrate how to configure communication parameters with the
example project.
Opening the example project
1. In the Windows Start menu, open the CoDeSys programming tool by clicking
Programs > 3S Software > CoDeSys V2.3 > CoDeSys V2.3.
The CoDesys program opens.
2. Click File > Open.
3. Browse to the folder C:\Program Files\ABB\ABB Configurator\Projects\Examples\
Drives_PS553-DRIVES\ ACS355_PM554_ModbusRTU\ and open
ACS355_PM554_ModbusRTU.pro.
A dialog opens, asking if you want to save the current (empty) project.
4. Click No.

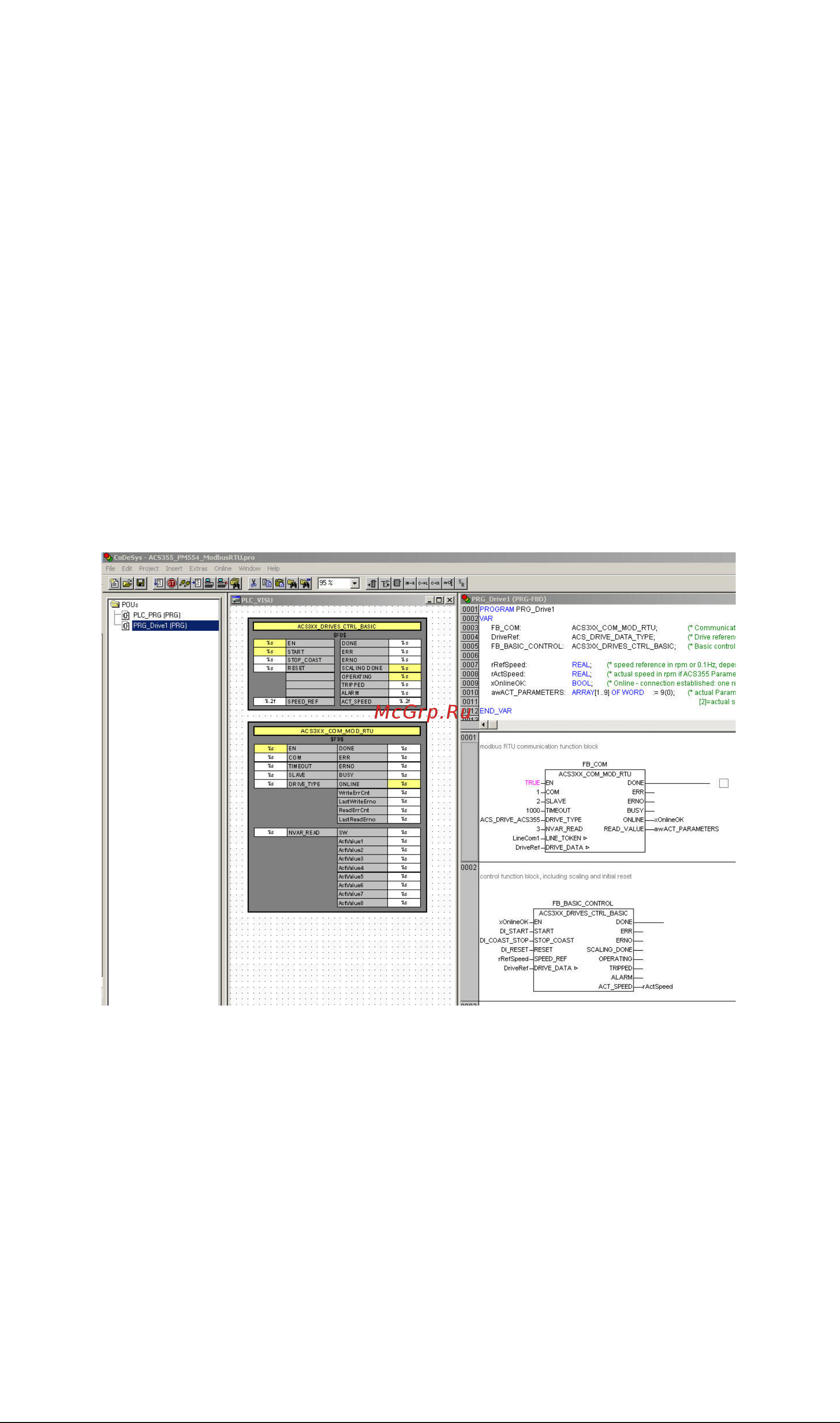

The project opens and the PLC_VISU window and the PRG_DRIVE1 window are
displayed.
Installing the TK504 cable
Plug the TK504 cable in a USB port on the PC.
An installation wizard for the TK504 cable opens. Follow the instructions in the wizard to
automatically install the cable.
