2.2.3 Control Terminal Types

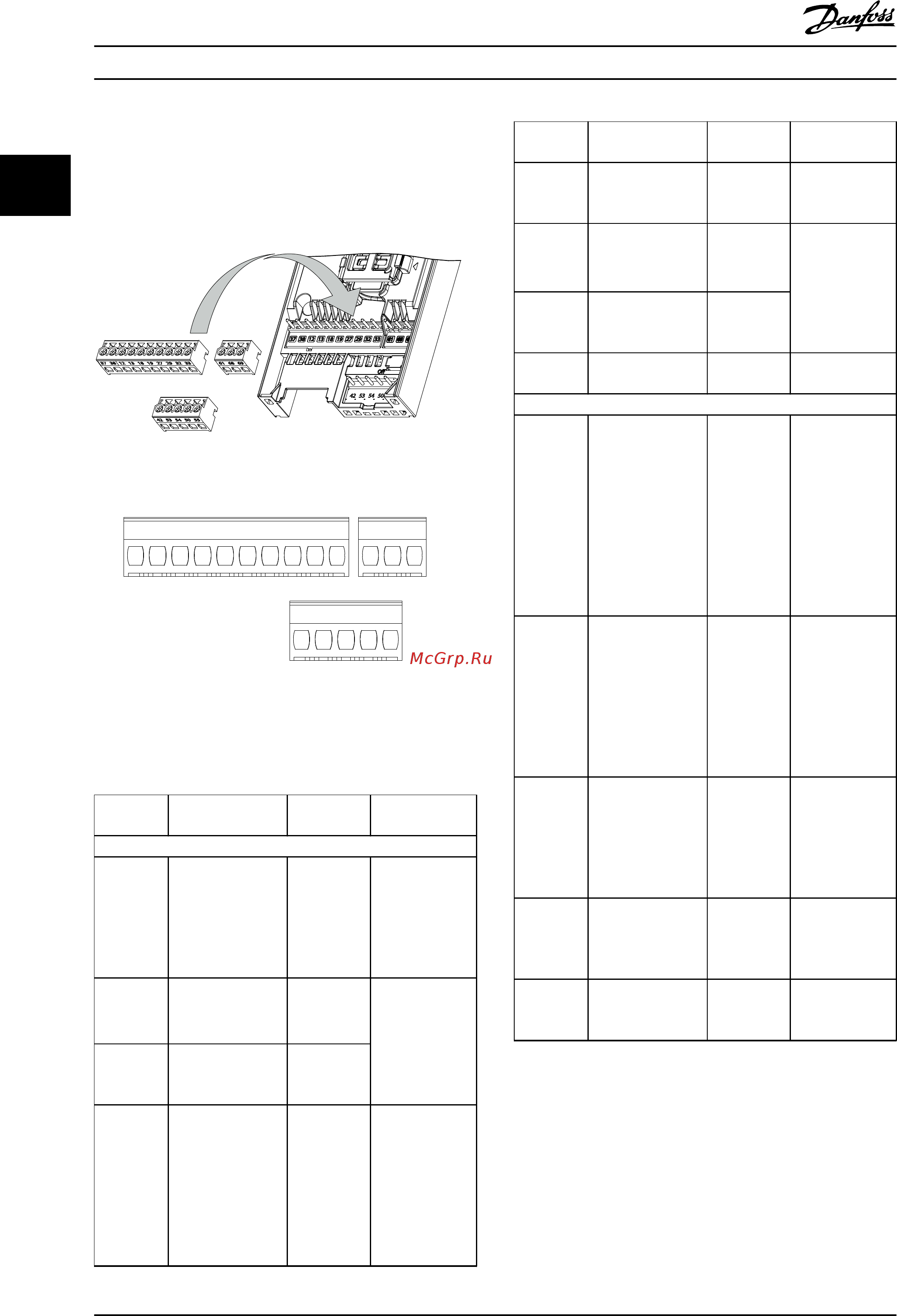

Illustration 2.7 shows the removable frequency converter
connectors. Terminal functions and default settings are
summarized in Table 2.2 and Table 2.3.
130BE212.10
1 2
3
Illustration 2.7 Control Terminal Locations
130BE214.10
37 38 12 13 18 19 27 29 32 33 61
42 53 54 50 55
68 69
1
3
2
Illustration 2.8 Terminal Numbers
See chapter 7.6 Control Input/Output and Control Data for
terminal ratings details.
Terminal Parameter
Default
setting
Description
Digital I/O, pulse I/O, encoder
12, 13 – +24 V DC
24 V DC supply
voltage.
Maximum
output current is
100 mA for all
24 V loads.
18
Parameter 5-10 Ter
minal 18 Digital
Input
[8] Start
Digital inputs.
19
Parameter 5-11 Ter
minal 19 Digital
Input
[10]
Reversing
27
Parameter 5-01 Ter
minal 27 Mode
Parameter 5-12 Ter
minal 27 Digital
Input
Parameter 5-30 Ter
minal 27 Digital
Output
DI [2] Coast
inverse
DO [0] No
operation
Selectable for
either digital
input, digital
output, or pulse
output. The
default setting is
digital input.
Terminal Parameter
Default
setting
Description
29
Parameter 5-13 Ter
minal 29 Digital
Input
[14] Jog Digital input.
32
Parameter 5-14 Ter
minal 32 Digital
Input
[0] No
operation
Digital input,
24 V encoder.
Terminal 33 can
be used for
pulse input.
33
Parameter 5-15 Ter
minal 33 Digital
Input
[0] No
operation
37, 38 – STO
Functional safety
inputs.
Analog inputs/outputs
42
Parameter 6-91 Ter
minal 42 Analog
Output
[0] No
operation
Programmable
analog output.
The analog
signal is 0–
20 mA or 4–
20 mA at a
maximum of
500 Ω. Can also
be congured as
digital outputs.
50 – +10 V DC
10 V DC analog
supply voltage.
15 mA
maximum
commonly used
for potenti-
ometer or
thermistor.
53
Parameter group
6-1* Analog input
53
–
Analog input.
Only voltage
mode is
supported. It can
also be used as
digital input.
54
Parameter group
6-2* Analog input
54
–
Analog input.
Selectable
between voltage
or current mode.
55 – –
Common for
digital and
analog inputs.
Table 2.2 Terminal Descriptions - Digital Inputs/Outputs,
Analog Inputs/Outputs
Product Overview
VLT
®
Midi Drive FC 280
16 Danfoss A/S © 03/2016 All rights reserved. MG07B102
