Danfoss VLT Refrigeration Drive FC103 FC-103P3K0T2 [41/138] Warning

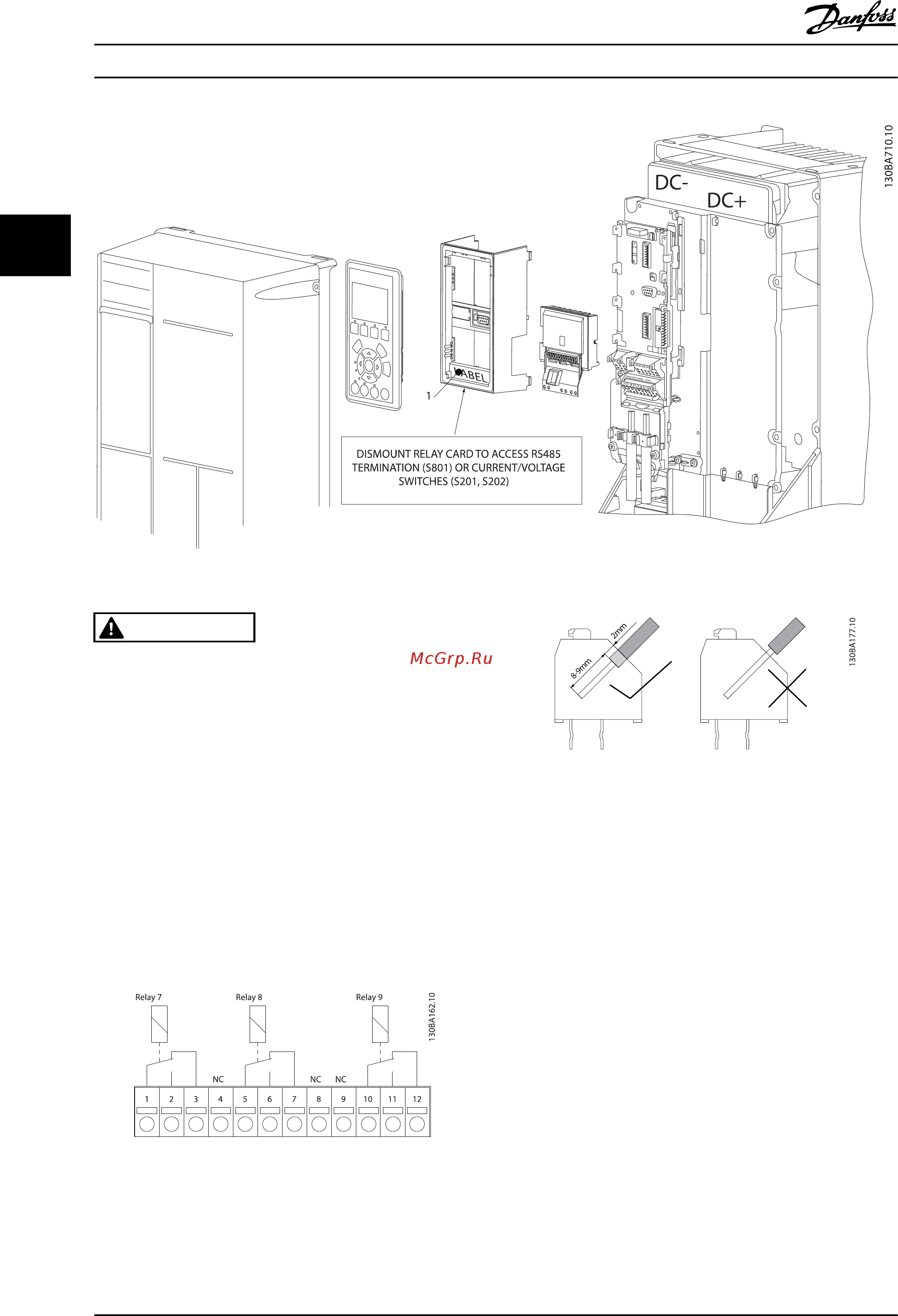

Illustration 3.6

WARNING

Warning Dual supply

How to add the MCB 105 option:

•

See mounting instructions in the beginning of

section Options and Accessories

•

The power to the live part connections on relay

terminals must be disconnected.

•

Do not mix live parts with control signals (PELV).

•

Select the relay functions in 5-40 Function Relay

[6-8], 5-41 On Delay, Relay [6-8] and 5-42 Off

Delay, Relay [6-8].

NOTE

Index [6] is relay 7, index [7] is relay 8, and index [8] is

relay 9

Illustration 3.7

Illustration 3.8

Drive Selection

VLT

Refrigeration Drive Design Guide

40 MG16G102 - VLT

is a registered Danfoss trademark
