3.1.15 IP 21/Type 1 Enclosure Kit

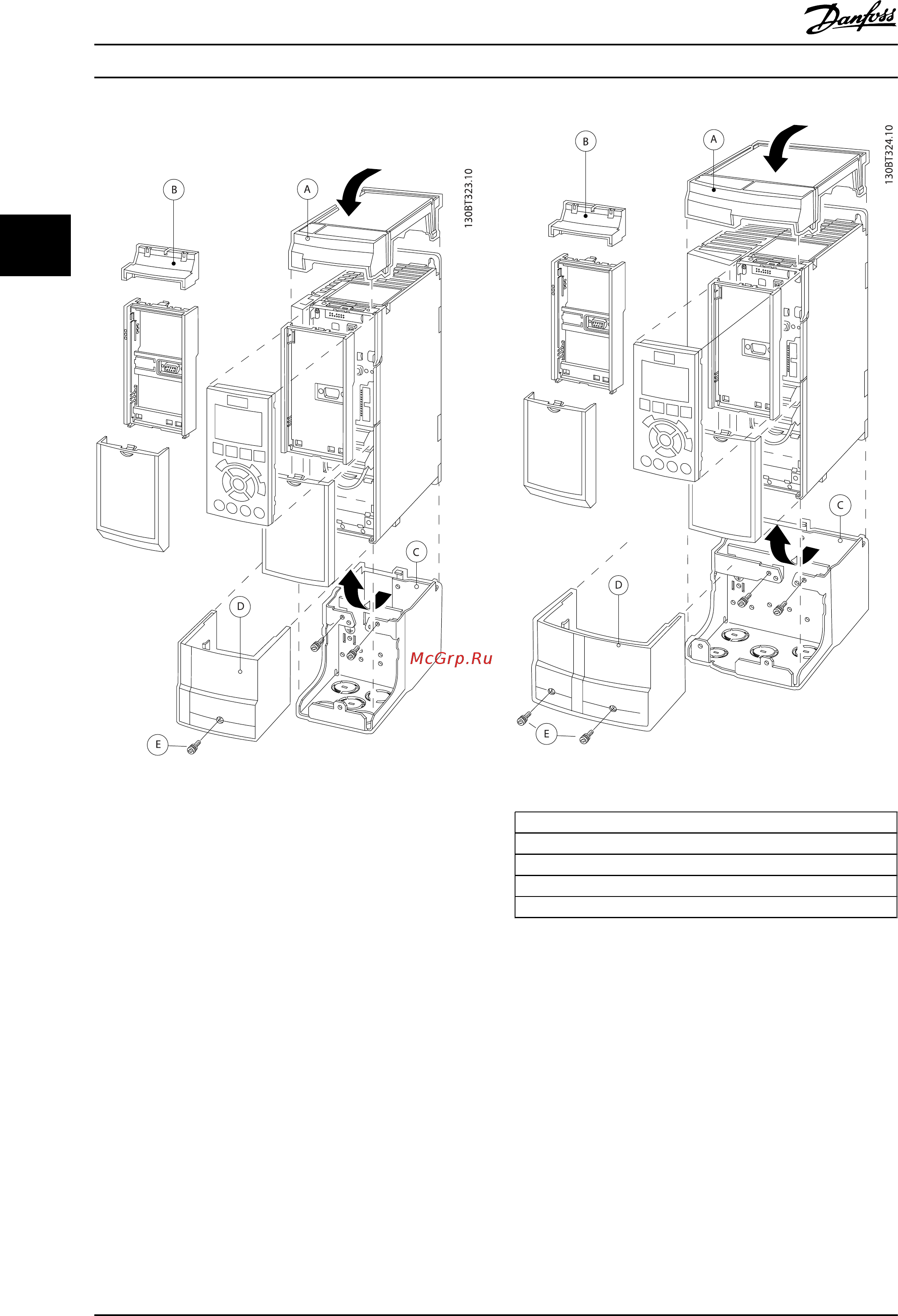

Illustration 3.24 A2 Enclosure

Illustration 3.25 A3 Enclosure

ATop cover

BBrim

C Base part

D Base cover

EScrew(s)

Table 3.12

Place the top cover as shown. If an A or B option is used

the brim must be fitted to cover the top inlet. Place the

base part C at the bottom of the frequency converter and

use the clamps from the accessory bag to correctly fasten

the cables. Holes for cable glands:

Size A2: 2x M25 and 3xM32

Size A3: 3xM25 and 3xM32
