Danfoss VLT Refrigeration Drive FC-103P90KT4 [50/138] Refrigeration drive design guide

Dimensions

Enclosure type

Height [mm]

Width [mm]

Depth [mm]

A2 372 90 205

A3 372 130 205

B3 475 165 249

B4 670 255 246

C3 755 329 337

C4 950 391 337

* If option A/B is used, the depth will increase (see 5.1.2

Mechanical Dimensions for details)

Table 3.13

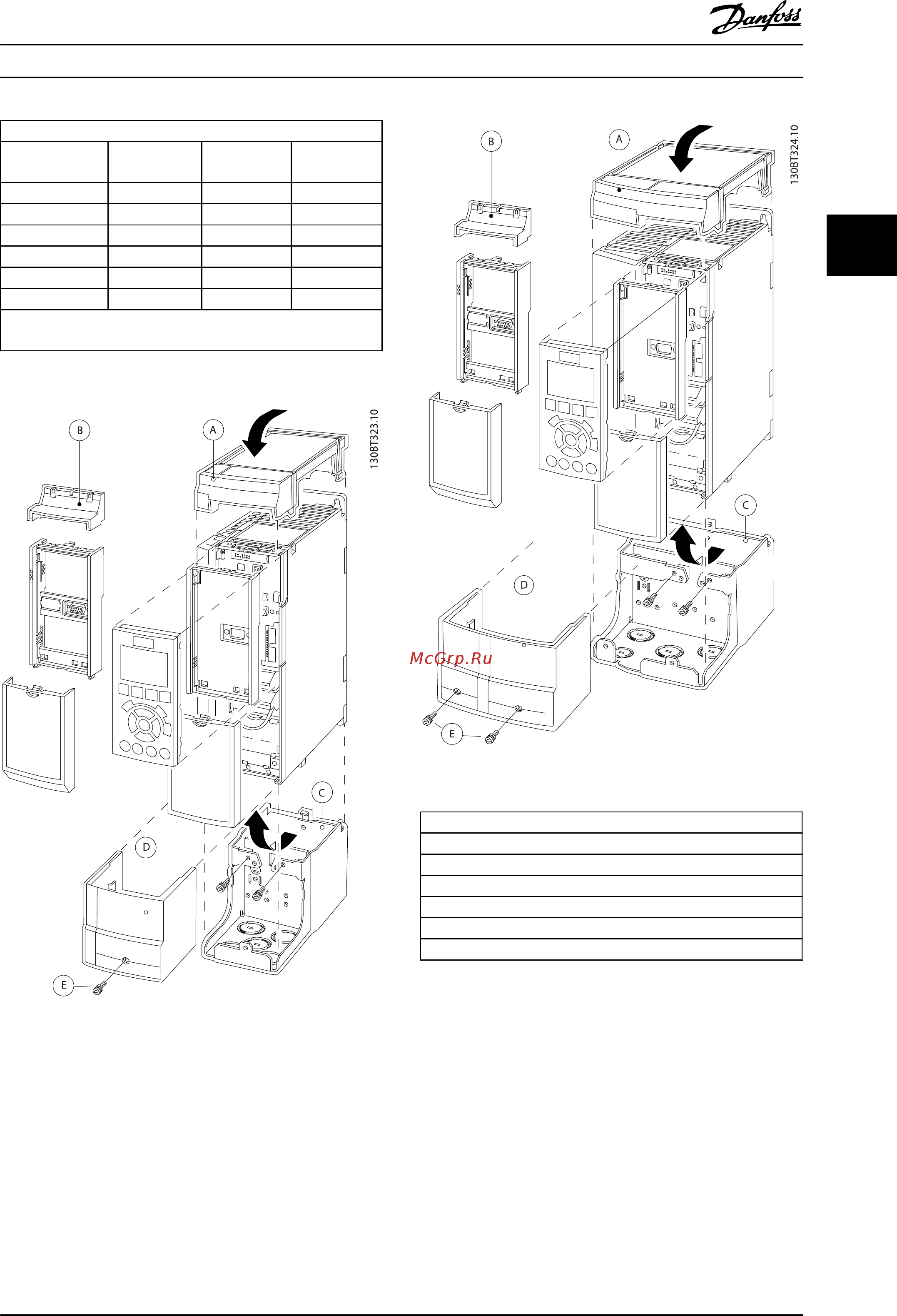

Illustration 3.26 B3 Enclosure

Illustration 3.27 B4 - C3 - C4 Enclosure

ATop cover

BBrim

CBase part

DBase cover

EScrew(s)

FFan cover

GTop clip

Table 3.14

NOTE

Side-by-side installation is not possible when using the IP

21/IP 4X/TYPE 1 Enclosure Kit

Drive Selection

VLT

Refrigeration Drive Design Guide

MG16G102 - VLT

is a registered Danfoss trademark 49
