Fluke 77 IV [14/18] Replacing the battery and fuses
![Fluke 77 IV [14/18] Replacing the battery and fuses](/views2/1005604/page14/bge.png)
Model 77 Series IV
Users Manual
10

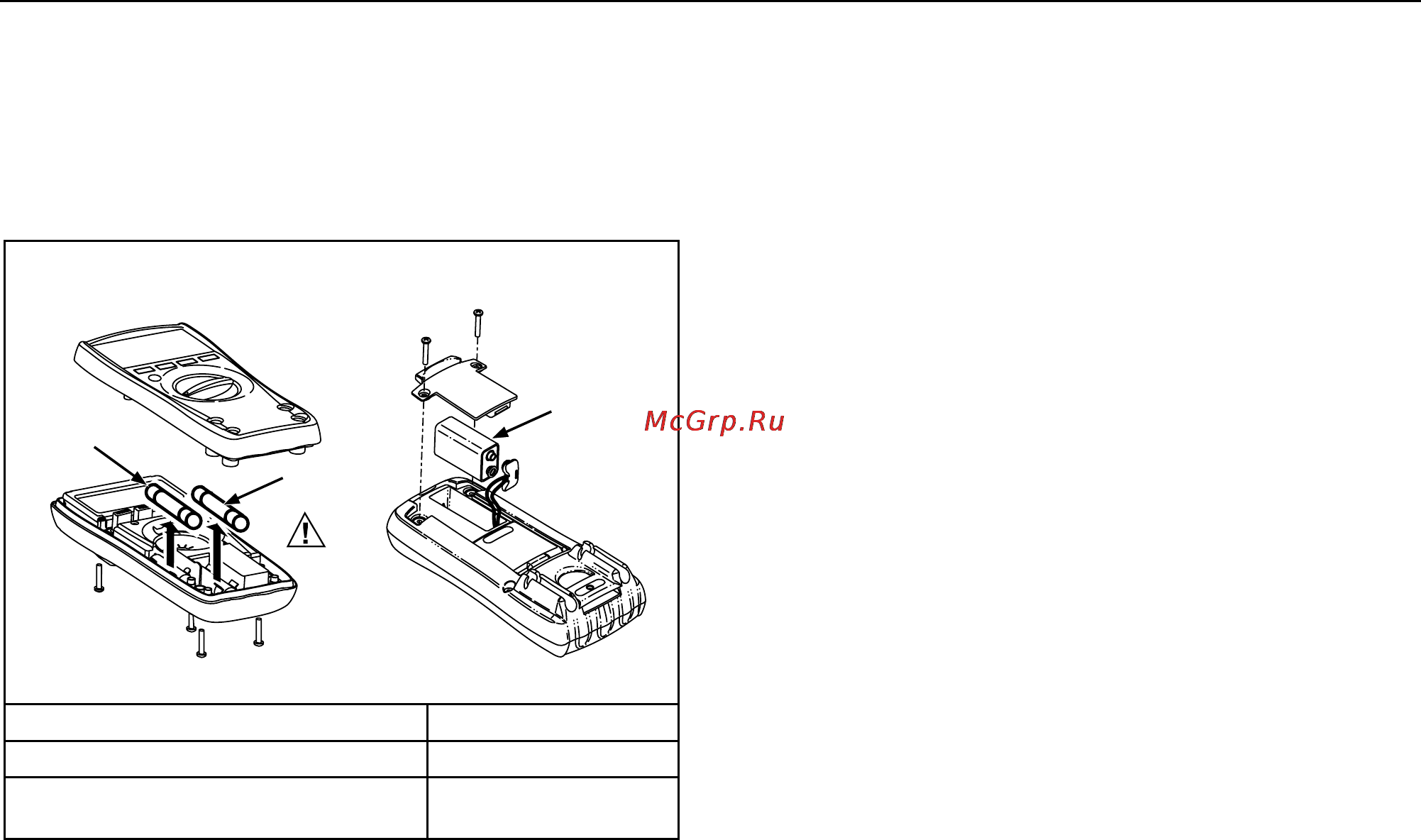

Replacing the Battery and Fuses
XWWarning
To avoid shock, injury, or damage to the Meter:
• Use ONLY fuses with the amperage, interrupt,
voltage, and speed ratings specified. Disconnect test
leads before opening case.
I
b
F2
F1
B1
AIK13F.EPS
F1 Fuse, 440 mA, 1000 V, FAST Fluke PN 943121
F2 Fuse, 11 A, 1000 V, FAST Fluke PN 803293
B1 Battery, 9 V Alkaline,
NEDA 1604 / 1604A
Fluke PN 614487
