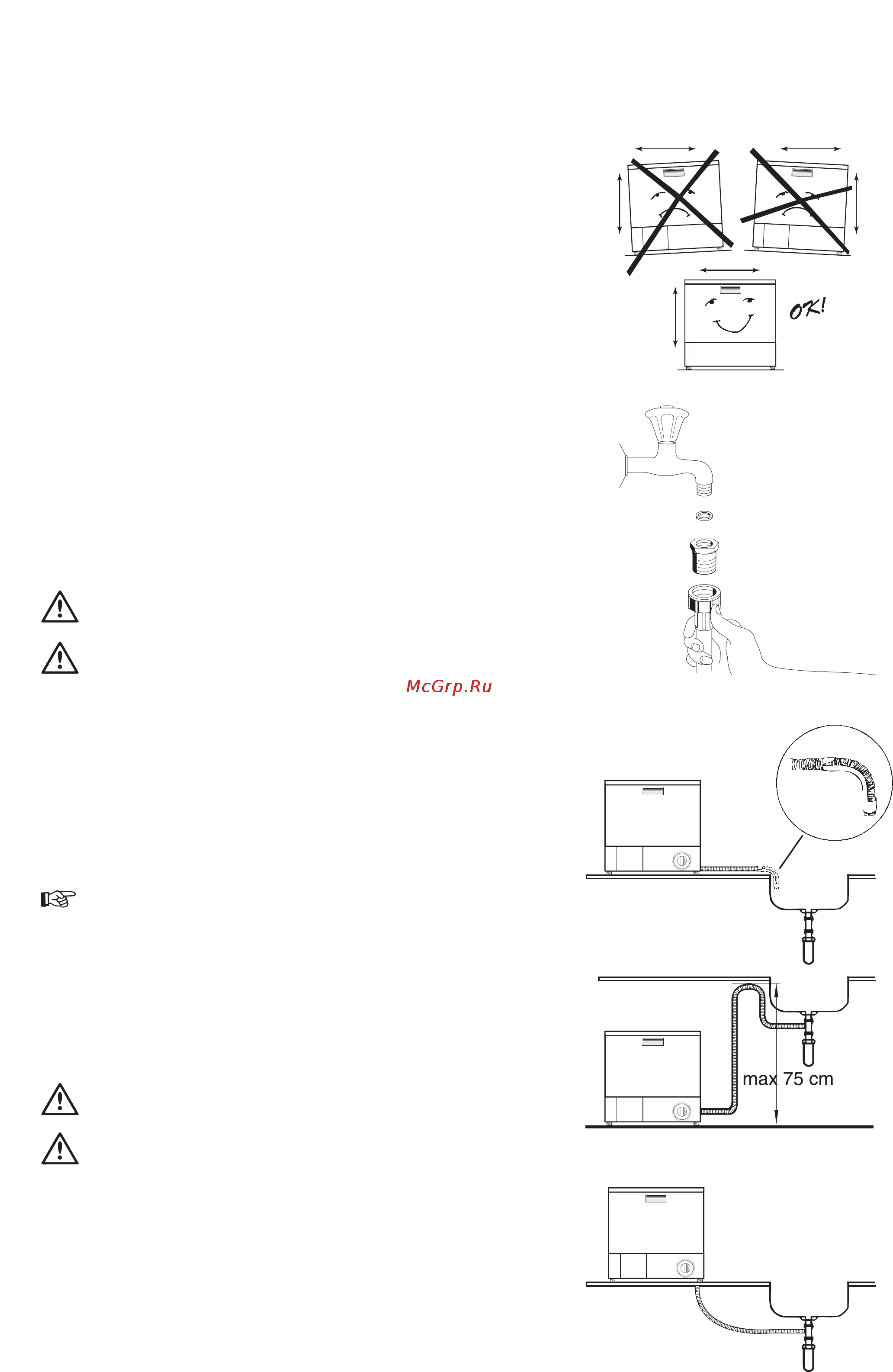

Installation
Positioning
In its standard version the machine is intended for instal-
lation on a kitchen sink or worktop. To function properly
the machine must be fully level. Its height can be adjusted
with the adjustable feet (8 mm each).
Water supply
The temperature of the water supply should not exceed
65°C and the pressure should be between 50-1000 kPa
(0.5-10 bar). It is important to have a tap or stopcock,
positioned close to the machine and with easy access.
Special mixer taps with dishwasher connections are
available, as well as adaptors for older mixer taps.
Connect the inlet hose to a tap with a 3/4" pipe thread. If
necessary, use the restrictor (1/2") supplied.
The inlet hose must not be joined onto any form of extension
hose. If it is too short, the entire hose must be replaced
with a longer high-pressure hose, specially designed for
the purpose. The machine end of this hose can be turned
in any direction. Loosen the retaining nut, turn the hose,
then retighten the nut.
Check that the nut is tight before the machine
is moved into position.
Use only the inlet hose supplied to the dishwas-
her, do not reuse the old inlet hose.
Discharge connection
Place the discharge hose over the sink as illustrated.
It must not at any point be higher up than 75 cm over the
surface which the dishwasher is standing on. If it runs higher,
operation of the dishwasher might be impaired. It is also
important to ensure that the inside diameter of the hose is
not less than 13 mm at any point. If the discharge hose is
too long it can easily be cut to the right length.
1. Cut the hose to a suitable length, using a sharp
knife.
2. Fit the elbow supplied onto the end of the hose.
Electrical connection
The dishwasher must be connected to an earthed wall
socket which must be easily accessible and protected by
a 10 Amp fuse.
Permanent electrical installation must be carried
out by an authorised electrician.
Before any work is carried out on the machine
it must be isolated from the electric mains supply,
for example by removing the plug from the
wall socket.
- 23 -
