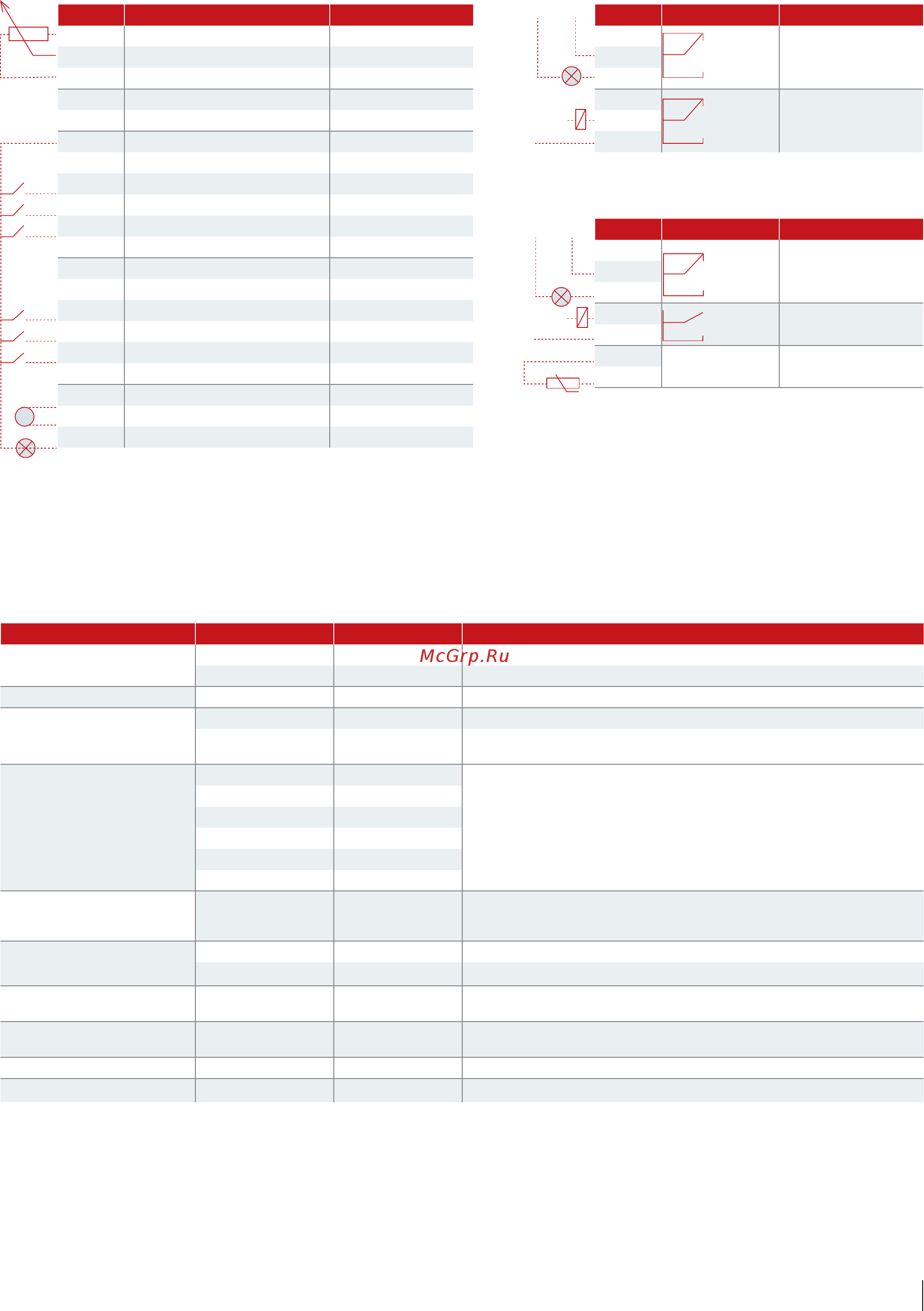

![Vacon NXS0048-2A2H1SSS [7/12] Vacon nxs standard i o](/views2/1563540/page7/bg7.png)
Other typical options
VACON® NXS standard I/O
Option Order typecode Availability Note
IP54 enclosure Factory option All Replace ‘2’ by ‘5’ in the type code, e.g. NXS02605A5H0 (SSS...)
IP5-FR_ FR4, FR5, FR6 IP54 kit, e.g. IP5-FR4
Through-hole mounting Factory option FR4-FR9 E.g. NXS02605ATH0STS..., IP54 back, IP21 front, kits available
Integrated brake choppers Standard FR4-6/230, 500 V E.g. NXS00455A2H1 (SSS...)
Factory option FR7- / 230 V, 500 V
FR6- / 690 V
E.g. NXS02605A2H1 (SSS...)
External brake resistors
(380 - 500 V range)
BRR-0022-LD-5 00035-00225
LD = Light duty: 5 sec nominal torque braking from
nominal speed decreasing linearily to zero, once per 120 sec.
HD = Heavy duty: 3 sec nominal torque braking at
nominal speed + 7 sec nominal torque braking from nominal
speed decreasing linearily to zero, once per 120 sec.
Replace LD by HD in the type code, e.g. BRR-0105-HD-5
Brake resistors are also available for 208-240 V and 500-690 V NXS drives
The brake resistor manual is available for more precise selection
BRR-0031-LD-5 00315
BRR-0045-LD-5 00385-00455
BRR-0061-LD-5 00615
BRR-0105-LD-5 00725-01055
BRR-0300-LD-5 01405-03005
Integrated brake resistors Factory option FR4-6/500 V Replace ‘1’ by ‘2’ in the typecode, e.g. NXS00455A2H2 (SSS...)
Light duty: 2 sec nominal torque braking from
nominal speed decreasing linearily to zero, once per 60 sec.
Graphical display panel Factory option All Replace ‘A’ by ‘G’, e.g. NXS00455G2H1 (SSS..), supports Chinese & Russian
PAN-G All Order typecode when ordered separately
Panel door installation sets DRA-02B (-04B, -15B) All Length of RS232C cable is specied in the typecode, e.g. DRA-02B includes
2-meter RS232C cable
Varnished circuit boards Factory option All Enclosure sizes FR4-FR8: replace the ‘S’ by ‘V’, e.g.
NXS00455A2H1SSV..., enclosure size FR9-FR11: replace ‘S’ by ‘G’
C-level RFI lters Factory option FR4-6/500 V Replace ‘H’ by ‘C’ in the typecode, e.g. NXS00455A5C1 (SSS..)
dU/dt & sinus lters Available for all drives
Terminal Defaults settings Programmable
1 +10V Reference voltage
2 AI1+ Frequency reference 0–10 V -10–+10 V, 0/4–20 mA
3 AI1- AI common (GND) Dierential
4 AI2+ Frequency reference 4–20 mA 0–20mA, 0/-10 V–10 V
5 AI2- AI common (dierential) GND
6 +24V Control supply (bidirectional)
7 GND I/O Ground
8 DIN1 Start forward Many possibilities
9 DIN2 Start reverse Many possibilities
10 DIN3 External fault input Many possibilities
11 CMA Common for DIN1 - DIN3 (GND) Floating
12 +24V Control supply (bidirectional)
13 GND I/O Ground
14 DIN4 Multi-step speed select 1 Many possibilities
15 DIN5 Multi-step speed select 2 Many possibilities
16 DIN6 Fault reset Many possibilities
17 CMB Common for DIN4 - DIN6 (GND) Floating
18 AO1+ Output frequency (0–20 mA) Many possibilities
19 AO1- AO common (GND) 4–20 mA, 0–10 V
20 DO1 READY, I ≤ 50 mA, U ≤ 48 VDC Many possibilities
Terminal Defaults settings Programmable
21 R01
RUN Many possibilities22 R01
23 R01
24 R02
FAULT Many possibilities25 R02
26 R02
Terminal Defaults settings Programmable
21 R01
RUN Many possibilities22 R01
23 R01
25 R02
FAULT Many possibilities
26 R02
28 TI1+
Thermistor
input fault
Warning, fault,
no response
29 TI1-
1...10 kΩ
mA
+24 V
GND
230 VAC
N
OPT-A1 OPT-A2
OPT-A3 (alternative)
+24 V
GND
230 VAC
N
PTC
7Danfoss Drives · DKDD.PB.913.A1.02
