31
Overview of Components
GAME BOOST knob
0
1
2
4
6
8
1
0
1
1

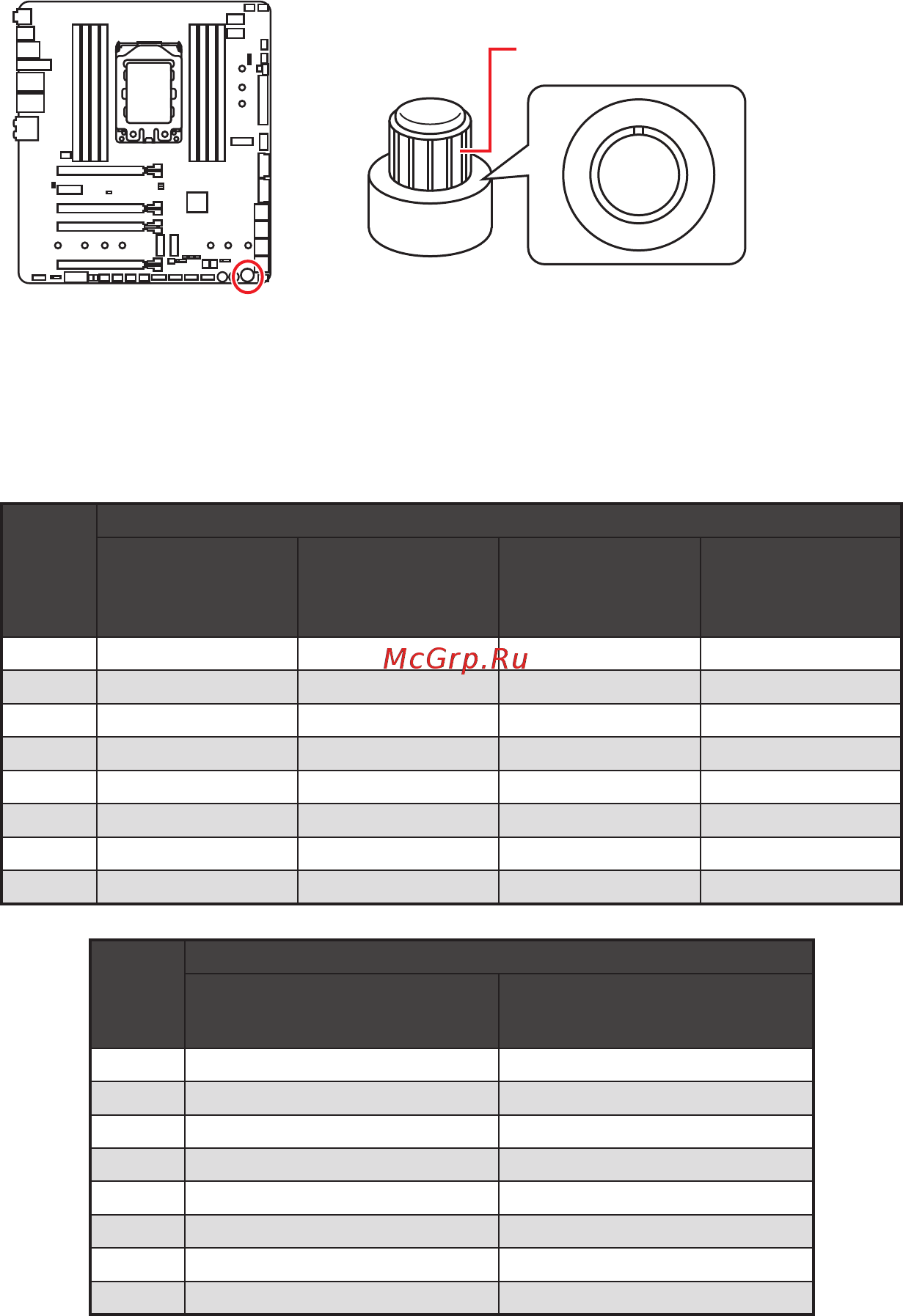

OC1: GAME BOOST Knob
This knob allows you to manually select a stage from number 0 (default) to number 11
(extreme) for overclocking the processor. The processor’s voltage and frequency will
be automatically adjusted after you power on your computer.
Using GAME BOOST Knob
To setup the GAME BOOST knob, take the following steps:
1. Set the GAME BOOST knob to hardware mode in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to select the overclocking stage as you desire.
Stage
CPU Frequency
Ryzen
Threadripper
1950X
Ryzen
Threadripper
1920X
Ryzen
Threadripper
1920
Ryzen
Threadripper
1900X
0 3.4 GHz 3.5 GHz 3.2 GHz 3.8 GHz
1 3.75 GHz 3.85 GHz 3.55 GHz 4.15 GHz
2 3.8 GHz 3.9 GHz 3.6 GHz 4.2 GHz
4 3.85 GHz 3.95 GHz 3.65 GHz 4.25 GHz
6 3.9 GHz 4 GHz 3.7 GHz 4.3 GHz
8 3.95 GHz 4.05 GHz 3.75 GHz 4.35 GHz
10 4 GHz 4.1 GHz 3.8 GHz 4.4 GHz
11 4.1 GHz 4.2 GHz 3.9 GHz 4.5 GHz
Stage
CPU Frequency
Ryzen Threadripper
2990WX
Ryzen Threadripper
2950X
0 3.0 GHz 3.5 GHz
1 3.5 GHz 4 GHz
2 3.6 GHz 4.05 GHz
4 3.7 GHz 4.1 GHz
6 3.8 GHz 4.15 GHz
8 3.9 GHz 4.2 GHz
10 4 GHz 4.25 GHz
11 4.1 GHz 4.3 GHz
