Dimensions and Weights

The table below gives an overview of the dimensions and

weights. Protection class IP55 is according to the EN 60529

standard.

* Weight is without motor and adapter plate.

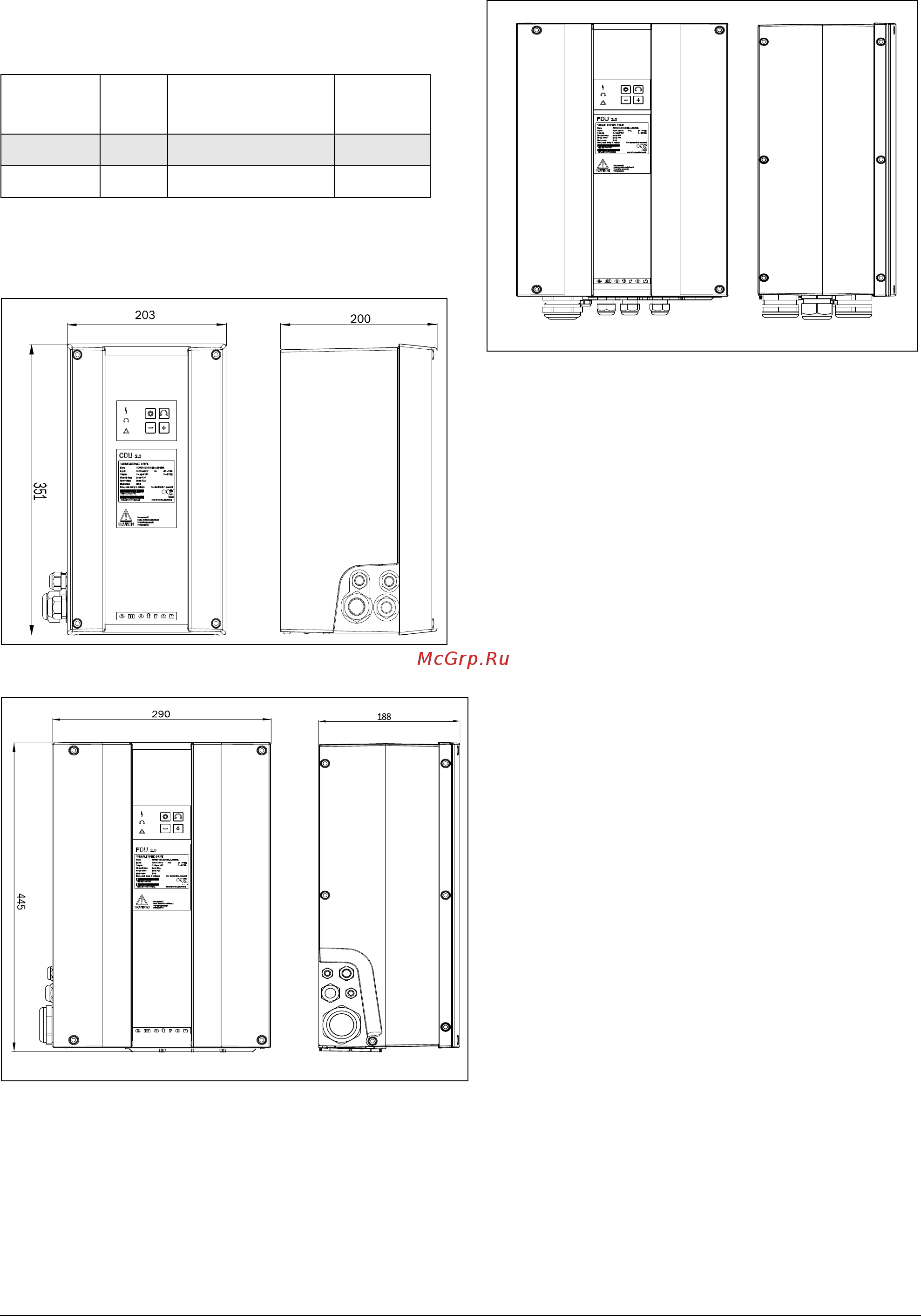

Drawings CDU and CDX

Fig. 1 CDU/CDX 48/52: Model 008 – 018 (B) *

Fig. 2 CDU/CDX 48/52: Model 026 – 046 (C)*

As an option, both sizes are available with cable entry from

the short side, see example in Fig. 3.

Fig. 3 CDU/CDX 48/52: Model 026 – 046 (C) with cable

entry from the short side.*

* Note! Cable glands are optional.

Table 4 Mechanical specifications

Models

Frame

size

Dim. H x W x D

[mm]

Weight

[kg]*

008 to 018 B 351 x 203 x 200 12.5

026 to 046 C 445 x 290 x 188 24
