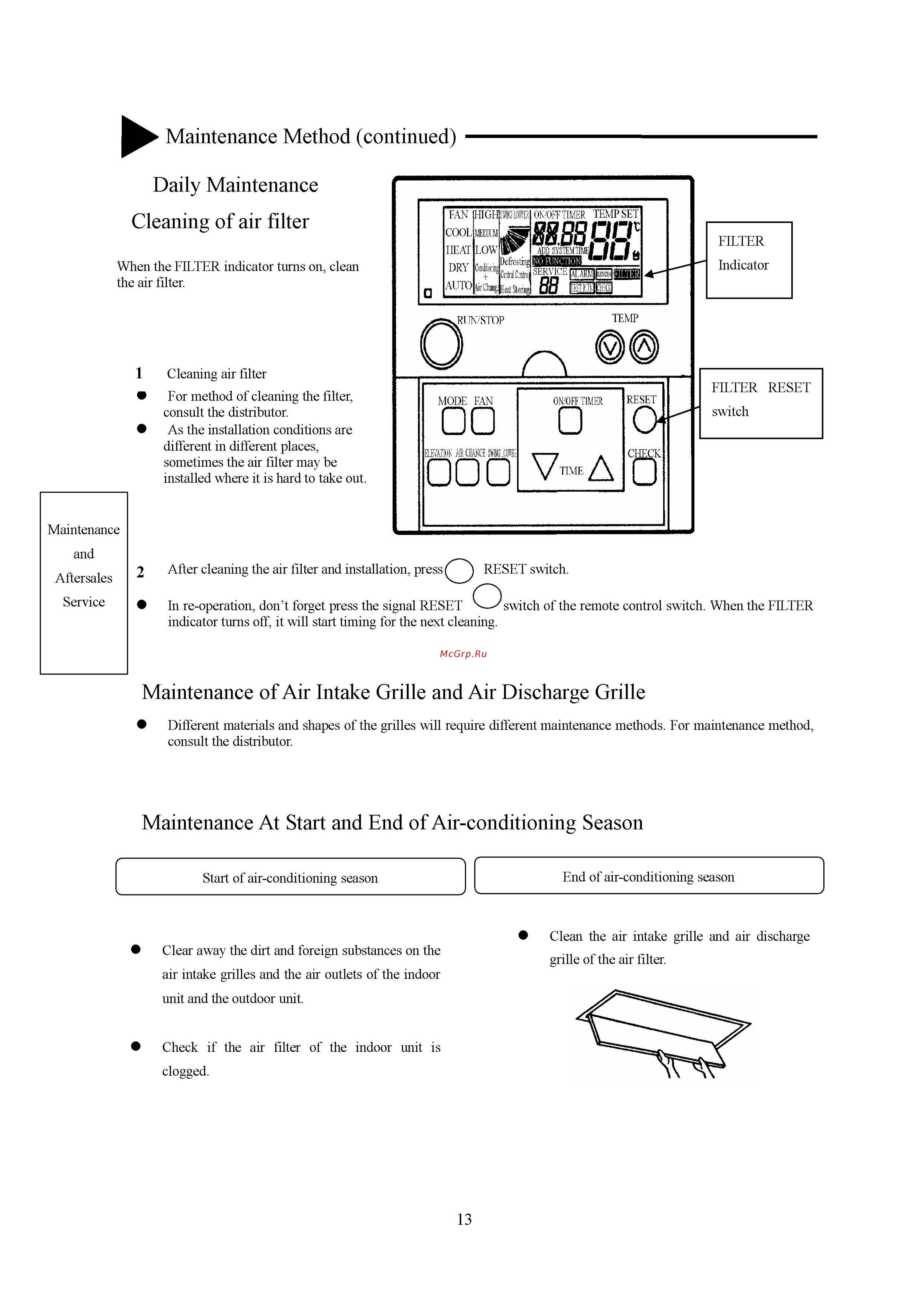

Maintenance Method continued Daily Maintenance FAN Cleaning of air filter When the FILTER indicator turns on clean the air filter ONOFFTIMER TEMP SET HIGH COOL MEDIUM HEAT LOW DRY Wi g FILTER Indicator Central Canlro О AUTO 4ir Chang Heat Stonng TEMP RUDSTOP Cleaning air filter For method of cleaning the filter consult the distributor As the installation conditions are different in different places sometimes the air filter may be installed where it is hard to take out FILTER RESET MODE FAN ON OFF TIMER RESET switch СНЕС Maintenance and Aftersales 2 After cleaning the air filter and installation press RESET switch Service In re operation don t forget press the signal RESET switch of the remote control switch When the FILTER indicator turns off it will start timing for the next cleaning Maintenance of Air Intake Grille and Air Discharge Grille Different materials and shapes of the grilles will require different maintenance methods For maintenance method consult the distributor Maintenance At Start and End of Air conditioning Season End of air conditioning season Start of air conditioning season Clean the air intake grille and air discharge Clear away the dirt and foreign substances on the grille of the air filter air intake grilles and the air outlets of the indoor unit and the outdoor unit Check if the air filter of the indoor unit is clogged 13
