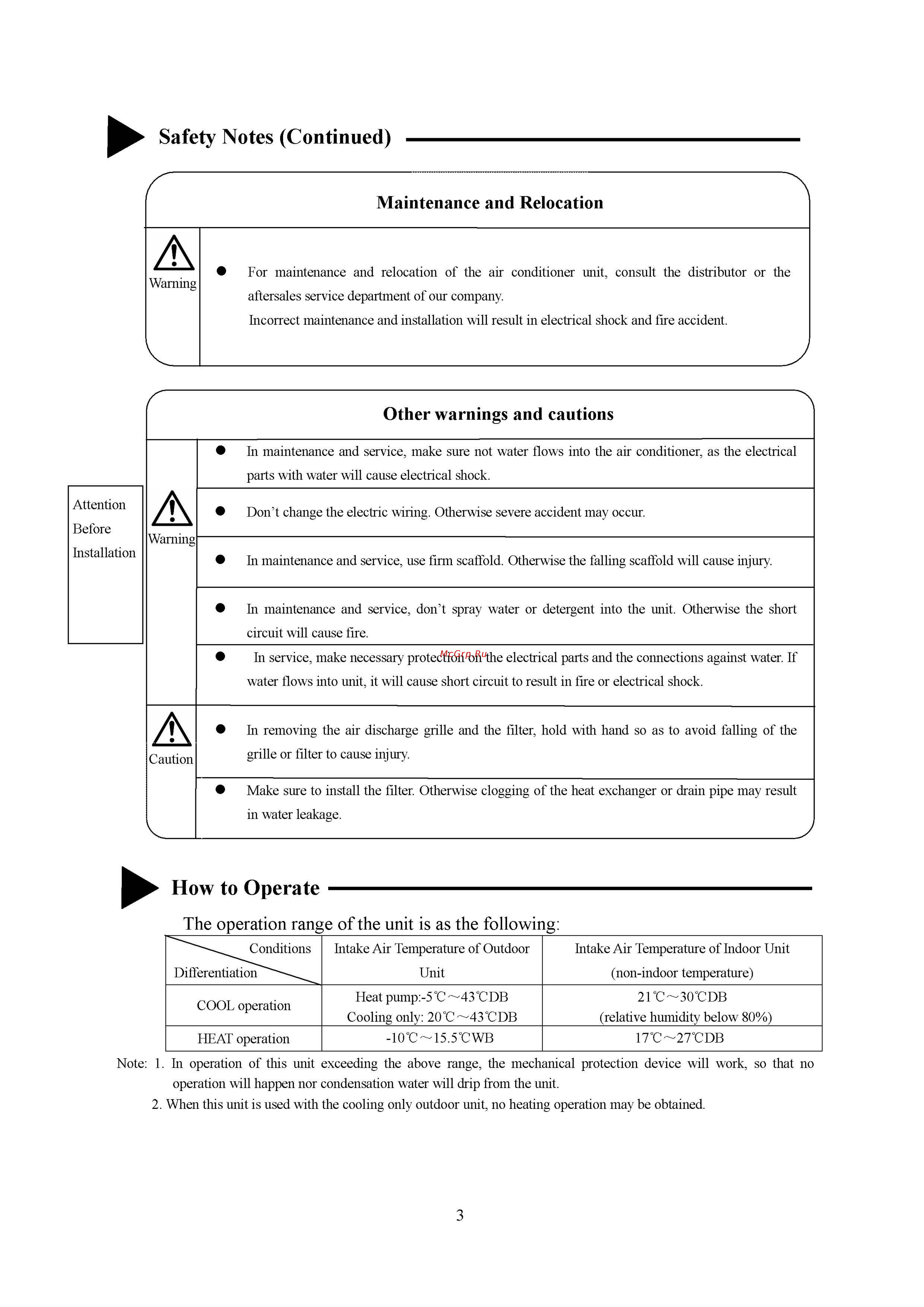

Safety Notes Continued Maintenance and Relocation Warning For maintenance and relocation of the air conditioner unit consult the distributor or the aftersales service department of our company Incorrect maintenance and installation will result in electrical shock and fire accident Other warnings and cautions In maintenance and service make sure not water flows into the air conditioner as the electrical parts with water will cause electrical shock Attention Before Don t change the electric wiring Otherwise severe accident may occur Warning Installation In maintenance and service use firm scaffold Otherwise the falling scaffold will cause injury In maintenance and service don t spray water or detergent into the unit Otherwise the short circuit will cause fire In service make necessary protection on the electrical parts and the connections against water If water flows into unit it will cause short circuit to result in fire or electrical shock A Caution In removing the air discharge grille and the filter hold with hand so as to avoid falling of the grille or filter to cause injury Make sure to install the filter Otherwise clogging of the heat exchanger or drain pipe may result in water leakage How to Operate The operation range of the unit is as the following Conditions Differentiatioii _ COOL operation HEAT operation Intake Air Temperature of Outdoor Intake Air Temperature of Indoor Unit Unit non indoor temperature Heat pump 5 C 43 C DB 2UC 30 CDB Cooling only 20 C 43 CDB 10 C 15 5 CWB relative humidity below 80 17 C 27 CDB Note 1 In operation of this unit exceeding the above range the mechanical protection device will work so that no operation will happen nor condensation water will drip from the unit 2 When this unit is used with the cooling only outdoor unit no heating operation may be obtained 3
