Galletti S 610/6 [20/24] Overall dimensions
![Galletti S 631/8 [20/24] Overall dimensions](/views2/1577828/page20/bg14.png)
20
41670713 - rev.02
All copying, even partial, of this manual is strictly forbidden
S 80

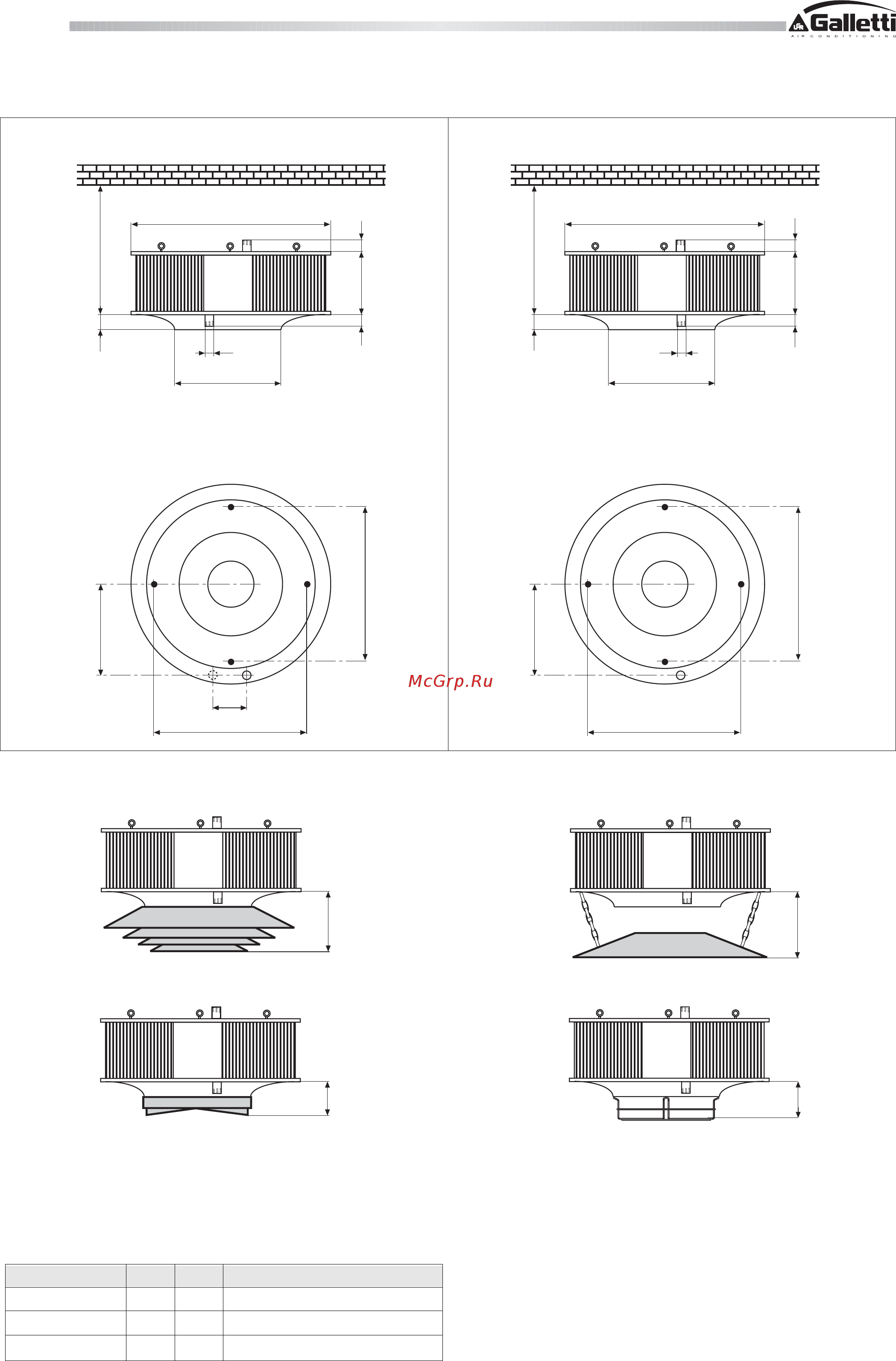

8 OVERALL DIMENSIONS
505
305
505
40
40
D
35
C
685
416
40
40
D
35
C
685
416
505
305
505
60
F
F
115
90
300
280
S610 - S620 - S630
Anemometric diffuser Truncated cone diffuser
Deflecting fins diffuser
S611 - S621 - S631
Dimensions in mm
CD
ΦΦ
ΦΦ
Φ
S 610 - S 621 380 115 1" 1/2
Male
S 620 - S 621 380 165 1" 1/2 Male
S 630 - S 631 400 265 1" 1/2 Male
Griglia fornita a corredo
