2. General Information and Ratings
This chapter contains information about the Optidrive E2 including how to identify the drive
2.1. Identifying the drive by model number
Each drive can be identified by its model number, as shown in Figure 1 Drive Model Number Format. The model number is on the
shipping label and the drive nameplate. The model number includes the drive and any options.
Drive model numbers for the Optidrive E2 drives are provided in 10.2 Rating tables.

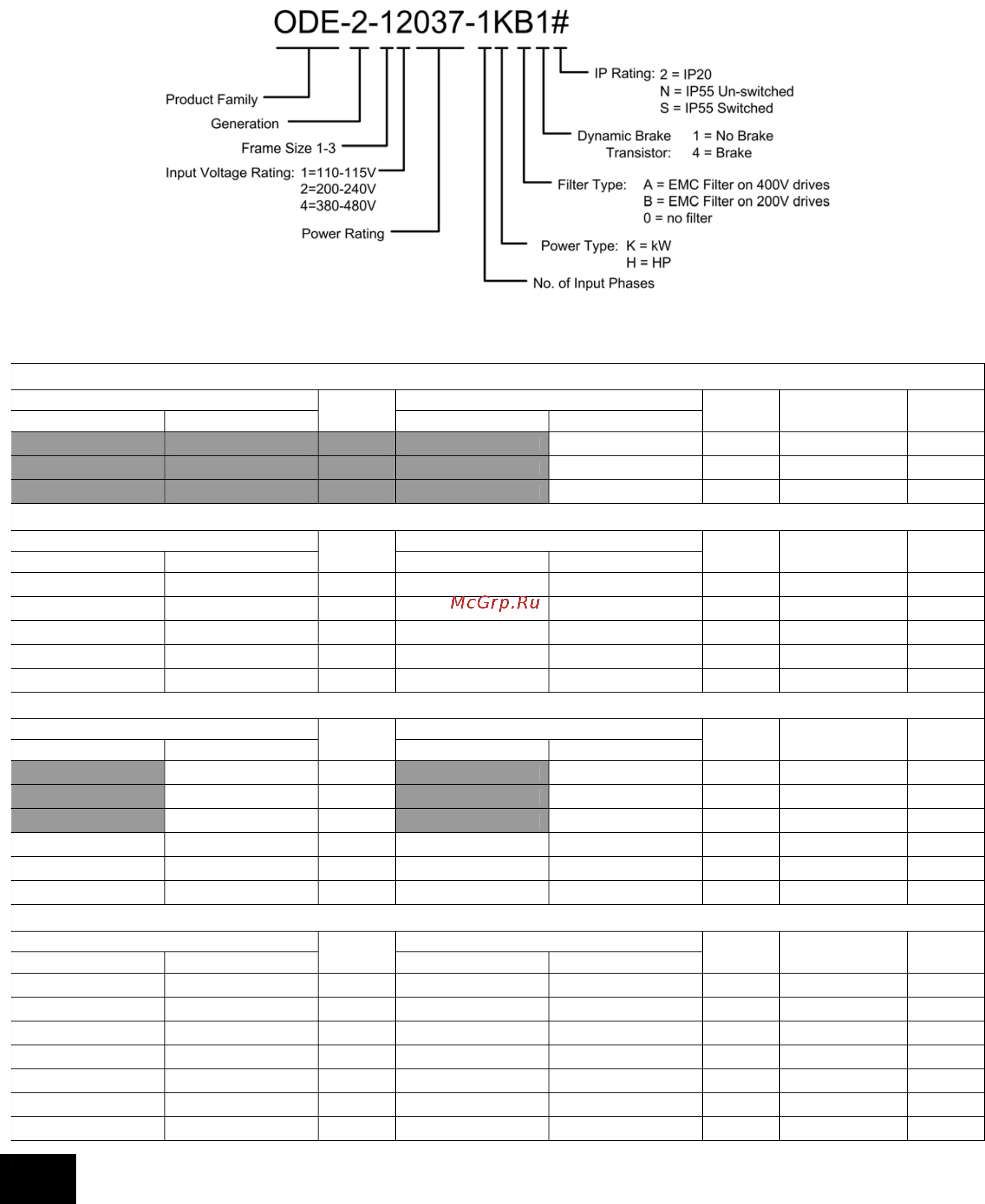

Figure 1 Drive Model Number Format
2.2. Drive model numbers
110-115V ±10% - 1 Phase Input - 3 Phase 230V Output (Voltage Doubler)
kW Model Number HP Model Number
With Filter Without Filter
kW
With Filter Without Filter
HP
Output Current
(A)
Frame
Size
ODE-2-11005-1H01# 0.5 2.3 1
ODE-2-11010-1H01# 1 4.3 1
ODE-2-21015-1H04# 1.5 5.8 2
200-240V ±10% - 1 Phase Input
kW Model Number HP Model Number
With Filter Without Filter
kW
With Filter Without Filter
HP
Output Current
(A)
Frame
Size
ODE-2-12037-1KB1# ODE-2-12037-1K01# 0.37 ODE-2-12005-1HB1# ODE-2-12005-1H01# 0.5 2.3 1
ODE-2-12075-1KB1# ODE-2-12075-1K01# 0.75 ODE-2-12010-1HB1# ODE-2-12010-1H01# 1 4.3 1
ODE-2-12150-1KB1# ODE-2-12150-1K01# 1.5 ODE-2-12020-1HB1# ODE-2-12020-1H01# 2 7 1
ODE-2-22150-1KB4# ODE-2-22150-1K04# 1.5 ODE-2-22020-1HB4# ODE-2-22020-1H04# 2 7 2
ODE-2-22220-1KB4# ODE-2-22220-1K04# 2.2 ODE-2-22030-1HB4# ODE-2-22030-1H04# 3 10.5 2
200-240V ±10% - 3 Phase Input
kW Model Number HP Model Number
With Filter Without Filter
kW
With Filter Without Filter
HP
Output Current
(A)
Frame
Size
ODE-2-12037-3K01# 0.37 ODE-2-12005-3H01# 0.5 2.3 1
ODE-2-12075-3K01# 0.75 ODE-2-12010-3H01# 1 4.3 1
ODE-2-12150-3K01# 1.5 ODE-2-12020-3H01# 2 7 1
ODE-2-22150-3KB4# ODE-2-22150-3K04# 1.5 ODE-2-22020-3HB4# ODE-2-22020-3H04# 2 7 2
ODE-2-22220-3KB4# ODE-2-22220-3K04# 2.2 ODE-2-22030-3HB4# ODE-2-22030-3H04# 3 10.5 2
ODE-2-32040-3KB4# ODE-2-32040-3K04# 4.0 ODE-2-32050-3HB4# ODE-2-32050-3H04# 5 18 3
380-480V ±10% - 3 Phase Input
kW Model Number HP Model Number
With Filter Without Filter
kW
With Filter Without Filter
HP
Output Current
(A)
Frame
Size
ODE-2-14075-3KA1# ODE-2-14075-3K01# 0.75 ODE-2-14010-3HA1# ODE-2-14010-3H01# 1 2.2 1
ODE-2-14150-3KA1# ODE-2-14150-3K01# 1.5 ODE-2-14020-3HA1# ODE-2-14020-3H01# 2 4.1 1
ODE-2-24150-3KA4# ODE-2-24150-3K04# 1.5 ODE-2-24020-3HA4# ODE-2-24020-3H04# 2 4.1 2
ODE-2-24220-3KA4# ODE-2-24220-3K04# 2.2 ODE-2-24030-3HA4# ODE-2-24030-3H04# 3 5.8 2
ODE-2-24400-3KA4# ODE-2-24400-3K04# 4 ODE-2-24050-3HA4# ODE-2-24050-3H04# 5 9.5 2
ODE-2-34055-3KA4# ODE-2-34055-3K04# 5.5 ODE-2-34075-3HA4# ODE-2-34075-3H04# 7.5 14 3
ODE-2-34075-3KA4# ODE-2-34075-3K04# 7.5 ODE-2-34100-3HA4# ODE-2-34100-3H04# 10 18 3
NOTE
For IP55/NEMA 12 with switches (SWITCHED)change the # for a “S” at the end of the product code
For IP55/NEMA 12 without switches (NON-SWITCHED) change the # for a “N” at the end of the product code
Optidrive E2 IP55/NEMA 12 User Guide
www.invertek.co.uk
5
