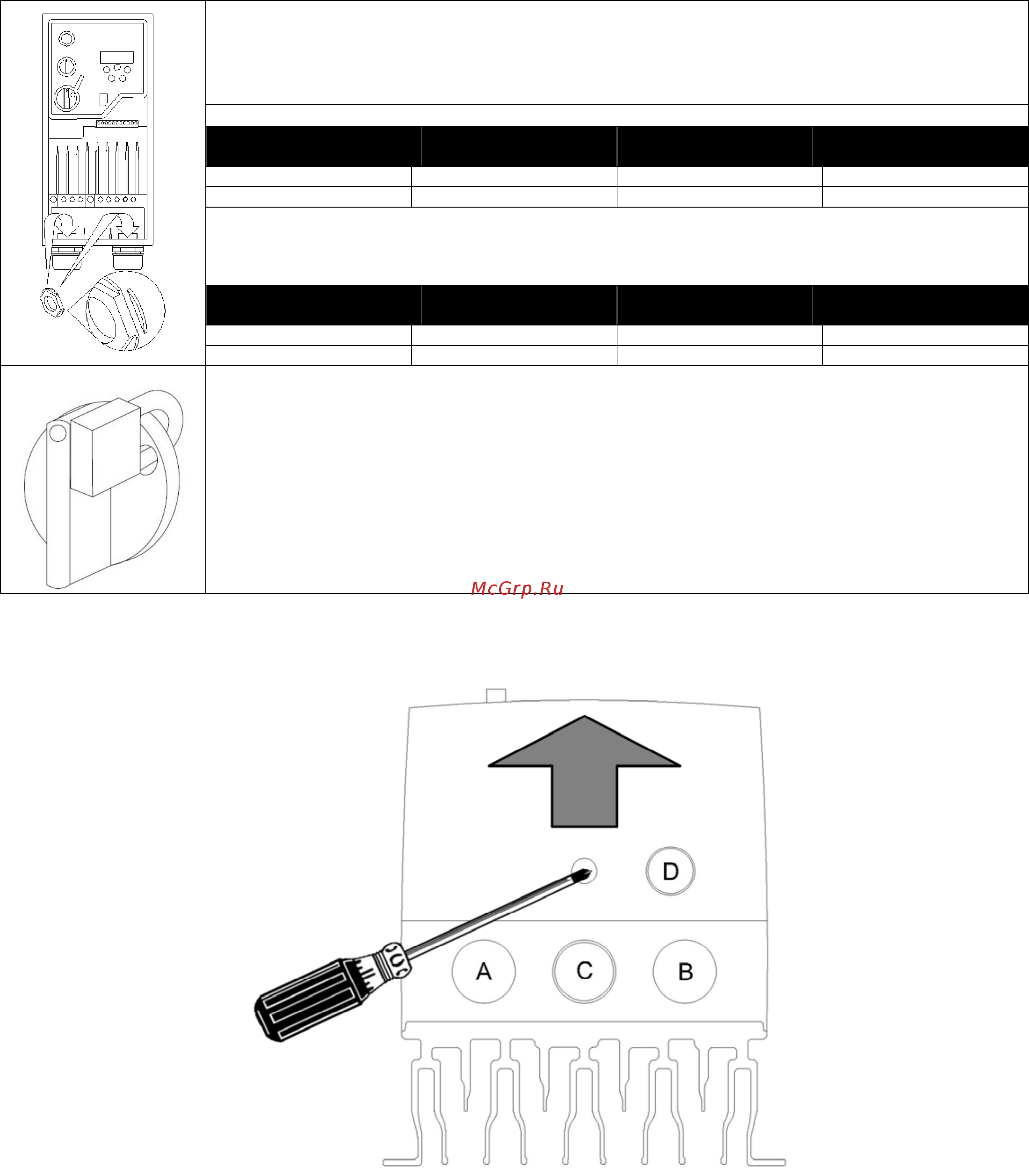

3.3. Gland Sizes & Lock off
Some types of gland nut will require modification for correct installation. Remove one or more flanges as
shown until the nut will fit in the apertures.
Any Metal conduit used MUST be earth bonded by means of suitable earthing washer or gland adaptor.
Gland Hole Sizes:
Input (A) & Output (B)
Power (Φ)
Centre Knockout (C)
(Φ)
Terminal Cover (D)
Knockout (Φ)
Size 1 (22mm) (22mm) (17mm)
Size 2 (25mm) (22mm) (17mm)
Recommended Gland Type: SkinTop UL approved (UL94-V0) Type12/IP55 non-metallic cable gland or
non-rigid conduit
Input (A) & Output (B)
Power (Φ)
Centre Knockout (C)
(Φ)
Terminal Cover (D)
Knockout (Φ)
Size 1 PG13.5 / M20 PG13.5 / M20 PG9 / M16
Size 2 & 3 PG16 / M25 PG13.5 / M20 PG9 / M16
Lock Off:
On the switched models the main power isolator switch can be locked in the ‘Off’ position using a 20mm
standard shackle padlock (not supplied).
3.4. Removing the Terminal Cover
To access the connection terminals, the drive front cover needs to be removed as shown below.
Optidrive E2 IP55/NEMA 12 User Guide
www.invertek.co.uk
7
