Siemens 6SL3210-1SE21-8UA0 [245/318] Mounting
![Siemens 6SL3210-1SE24-5AA0 [245/318] Mounting](/views2/1587218/page245/bgf5.png)
Accessories
8.3 Screening Kit
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
245
8.3.3 Mounting
8.3.3.1 Overview
Frame size FSA

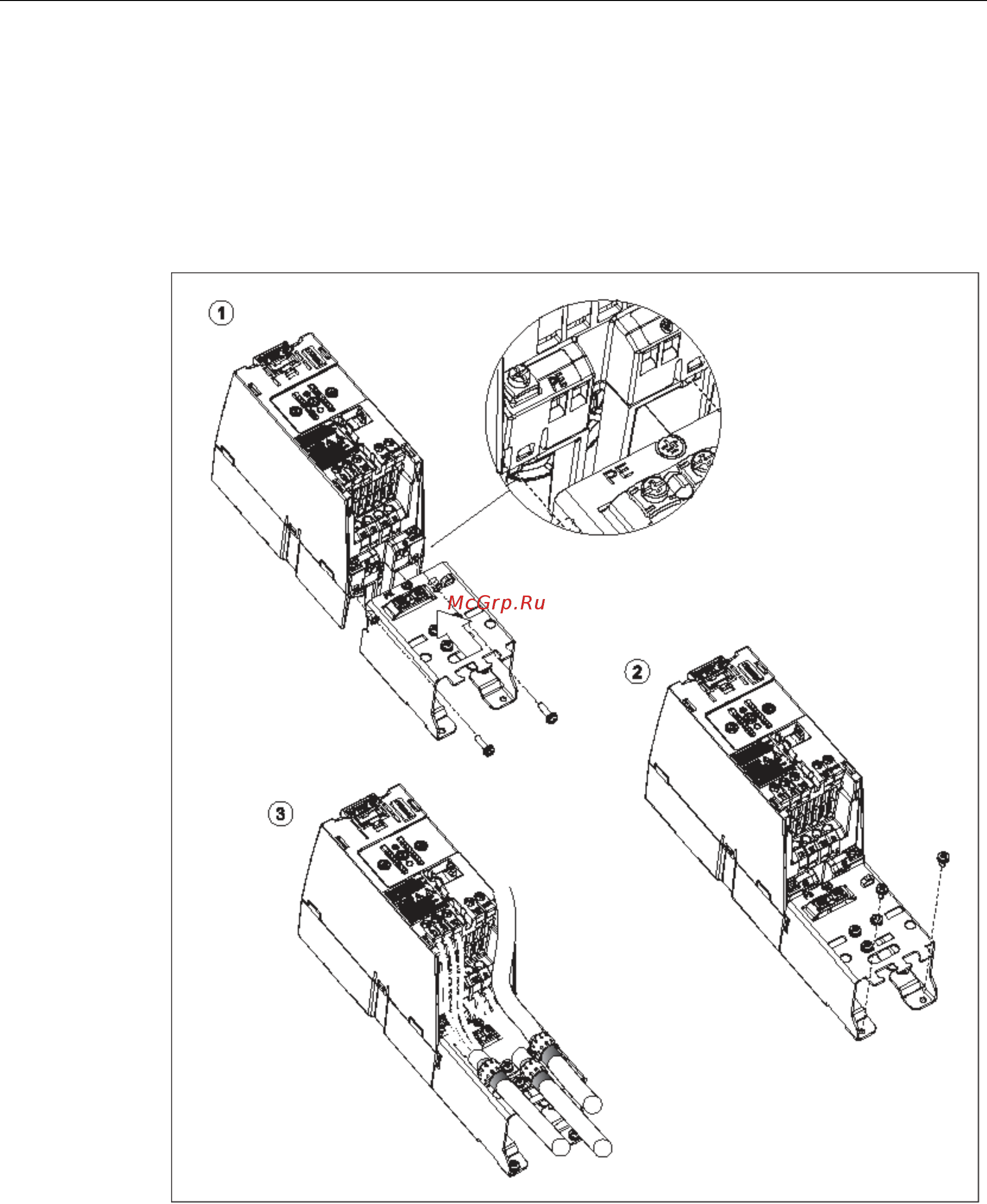

Figure 8-18 Mounting a Screening Kit on a Power Module of frame size FSA
