Power Modules
3.1 Power Modules Blocksize (PM340)
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
79
3.1.5 Dimension drawings

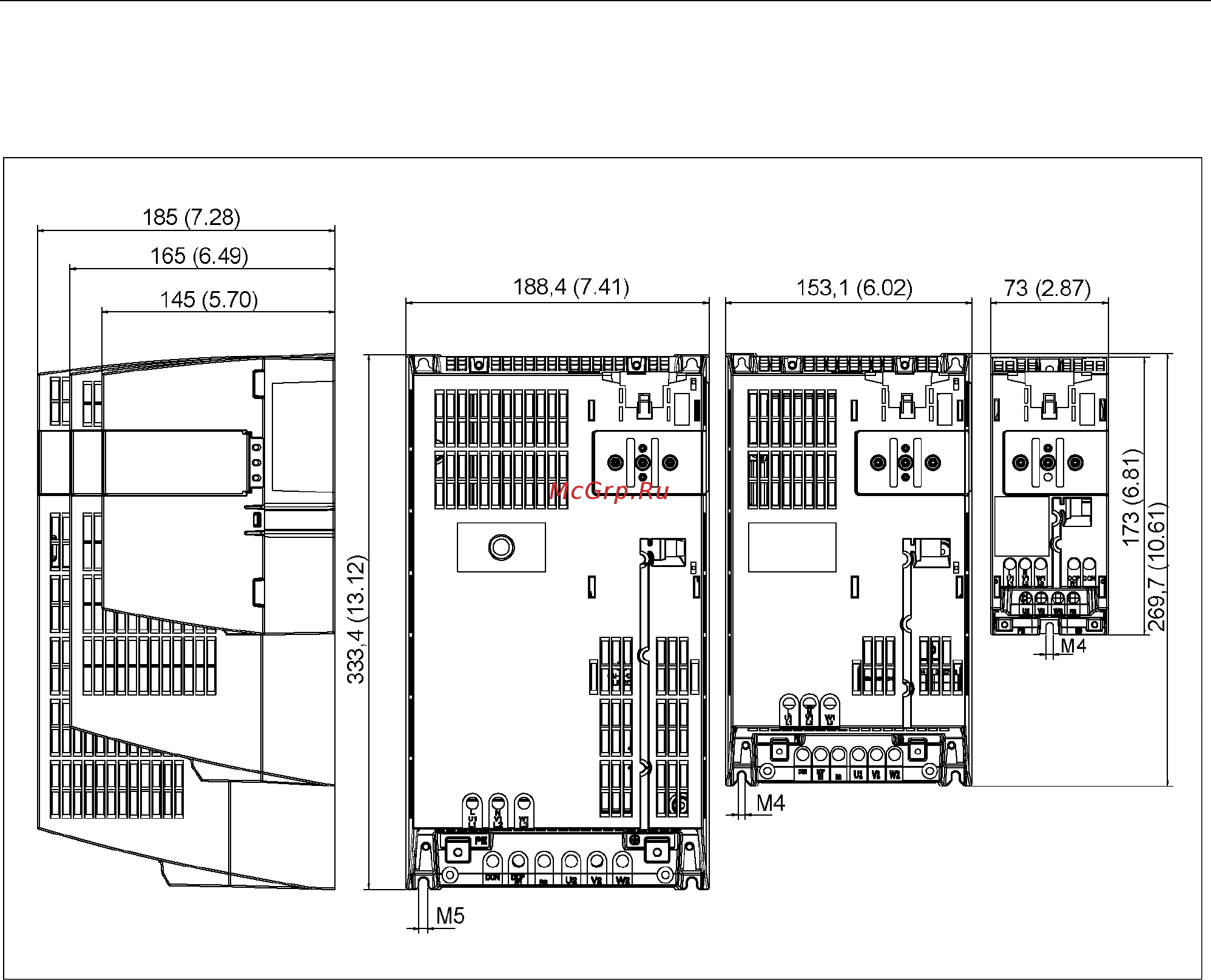

Figure 3-10 Dimension drawings, Power Module PM340
Frame size FSC Frame size FSB Frame size FSA
