AC-tiveMaster PD

Single-pole phase test4

Voltage test

Functional test/Self-test

• Test the voltage tester by applying it to familiar voltage

sources

• Connect test prods (1) and (2). The LED for the continuity

test (8) lights up and a signal sounds.

• Press the „AUTOTEST“ button. If the test is successful, all

the LEDs (4) light up along with the LED for the continuity

test (8) and a signal sounds.

• Contact the conductor to be tested with test prod L2, L1

remains free during the measurement. The LED (5) will light

up if an AC voltage is applied on the conductor.

• The single-pole phase test can only be performed with fully

charged batteries inserted.

• The single-pole phase test can be carried out as from an AC

voltage of approx. 100 V AC.

• When the single-pole phase test is carried out on the outer

conductor, the indicator function may be adversely affected

under certain conditions (e.g. when insulating personnel

protective equipment is used or at insulated locations).

• The voltage tester is activated automatically at voltages

of 12 V or above and indicates the measured voltage by

lighting up the relevant LED (4).

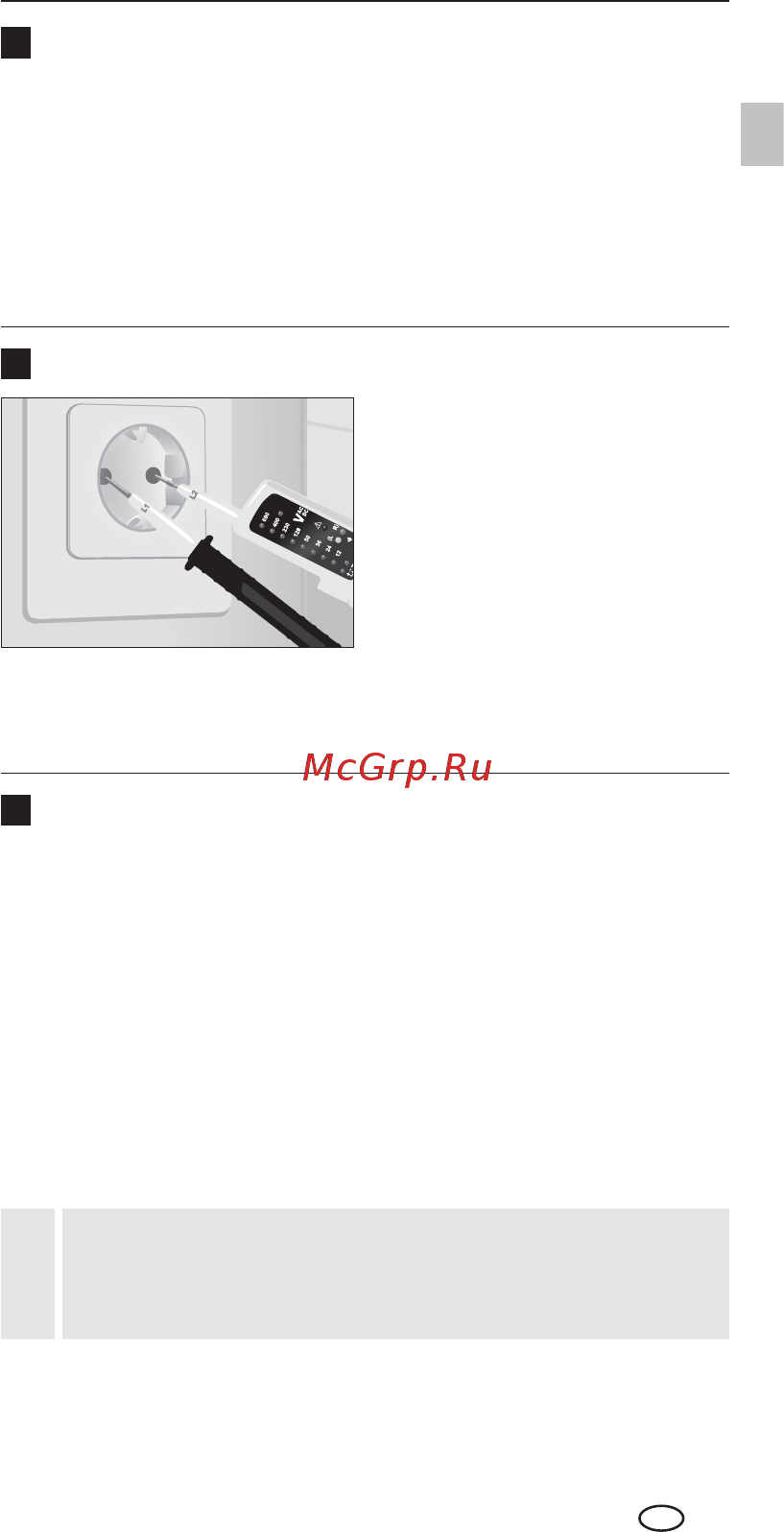

Hold the base device (+)

in your right hand and the

second test prod (-) in your

left hand. Now apply the test

prods to the contacts to be

tested (line, socket, etc.).

The single-pole phase test is not suitable for checking

for zero voltage. To do this, you need to carry out a

two-pole phase test.
