Qtech QSW-3400-28T-AC [20/465] Com1 property appears select 9600 for baud rate 8 for data bits none for parity checksum 1 for stop bit and none for traffic control or you can also click restore default and click ok

+7(495) 797-3311 www.qtech.ru

Москва, Новозаводская ул., 18, стр. 1

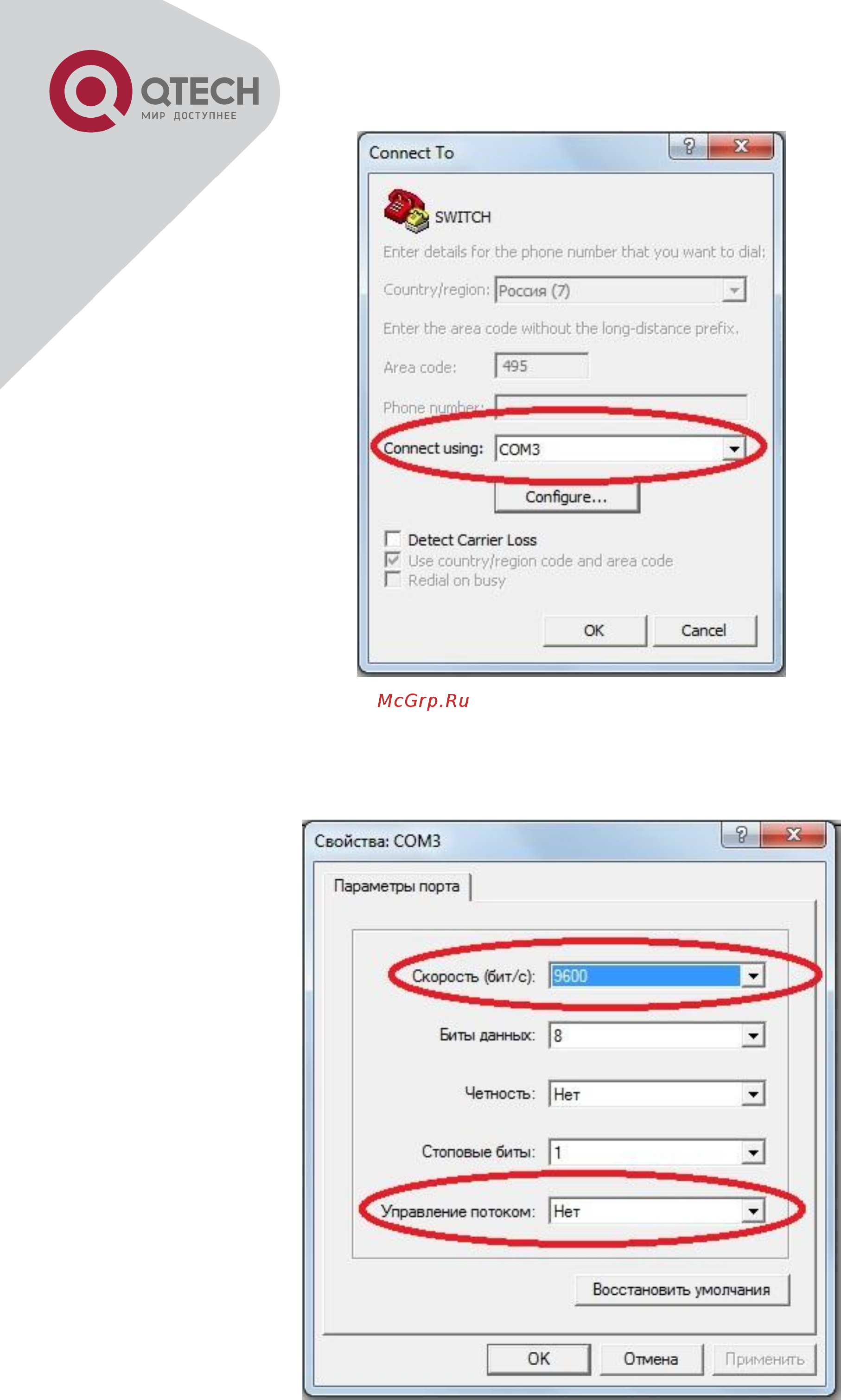

Opening HyperTerminal

COM1 property appears, select “9600” for “Baud rate”, “8” for “Data bits”, “none” for “Parity

checksum”, “1” for stop bit and “none” for traffic control; or, you can also click “Restore default”

and click “OK”.
