Command

Explanation

Admin Mode

clear webportal binding {mac WORD |

interface <ethernet IFNAME | IFNAME> |}

Delete the binding information of web portal

authentication.

50.3 Web Portal Authentication Typical Example

Pc 2

Ethernet1/3

Ethernet1/2 Ethernet1/3

Pc 1

Ethernet1/2

Ethernet1/4

Ethernet1/5

Switch 2

Internet

Ethernet1/1

Ethernet1/4

Ethernet1/6

Portal

server

192.168.40.99

RADIUS

server

192.168.40.100

DHCP

server

DNS

server

Switch1

192.168.40.50

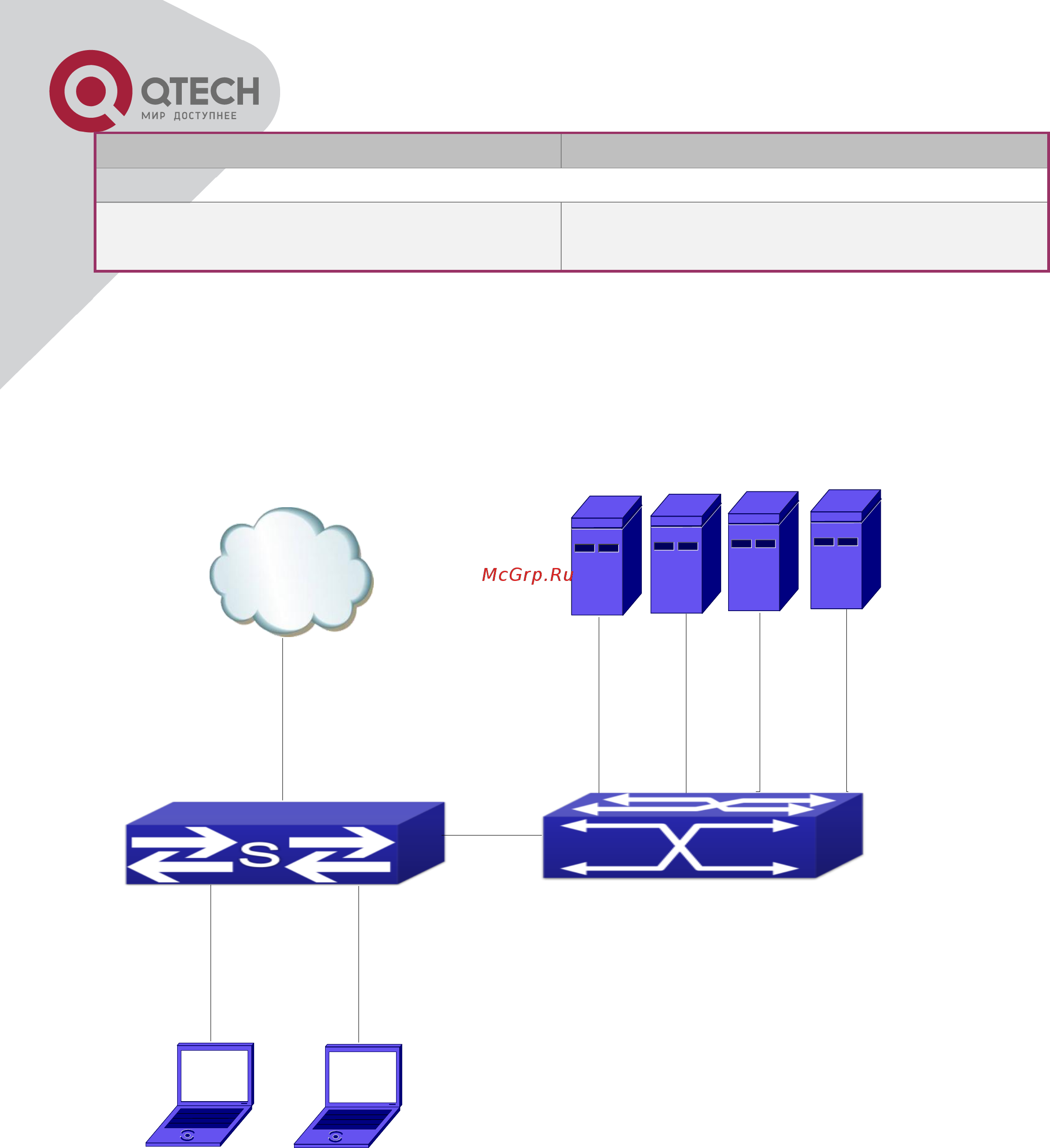

Web portal typical application scene

In the above figure, pc1 is end-user, there is http browser in it, but no 802.1x authentication

client, pc1 wants to access the network through web portal authentication.

Switch1 is the accessing device, it configures accounting server’s address and port as

RADIUS server’s IP and port, and enable the accounting function. Ethernet 1/2 connects to

pc1, the port enables web portal authentication, and configure the redirection address and port
