Figure 2 Single ring
There is only a single ring in the network topology. In this case, you only need to define an ERRP domain.
16.4.2 Multi-domain tangent rings
QSW-2900
QSW-2900
QSW-2900
QSW-2900
QSW-2900
Master node
Transit node
Domain 1
Ring 1
Ring 2
A
B
C
D
E
12
2
2
2
1
1
1
QSW-2900
Transit node
Transit node
Transit node
Master node
F
Domain 2

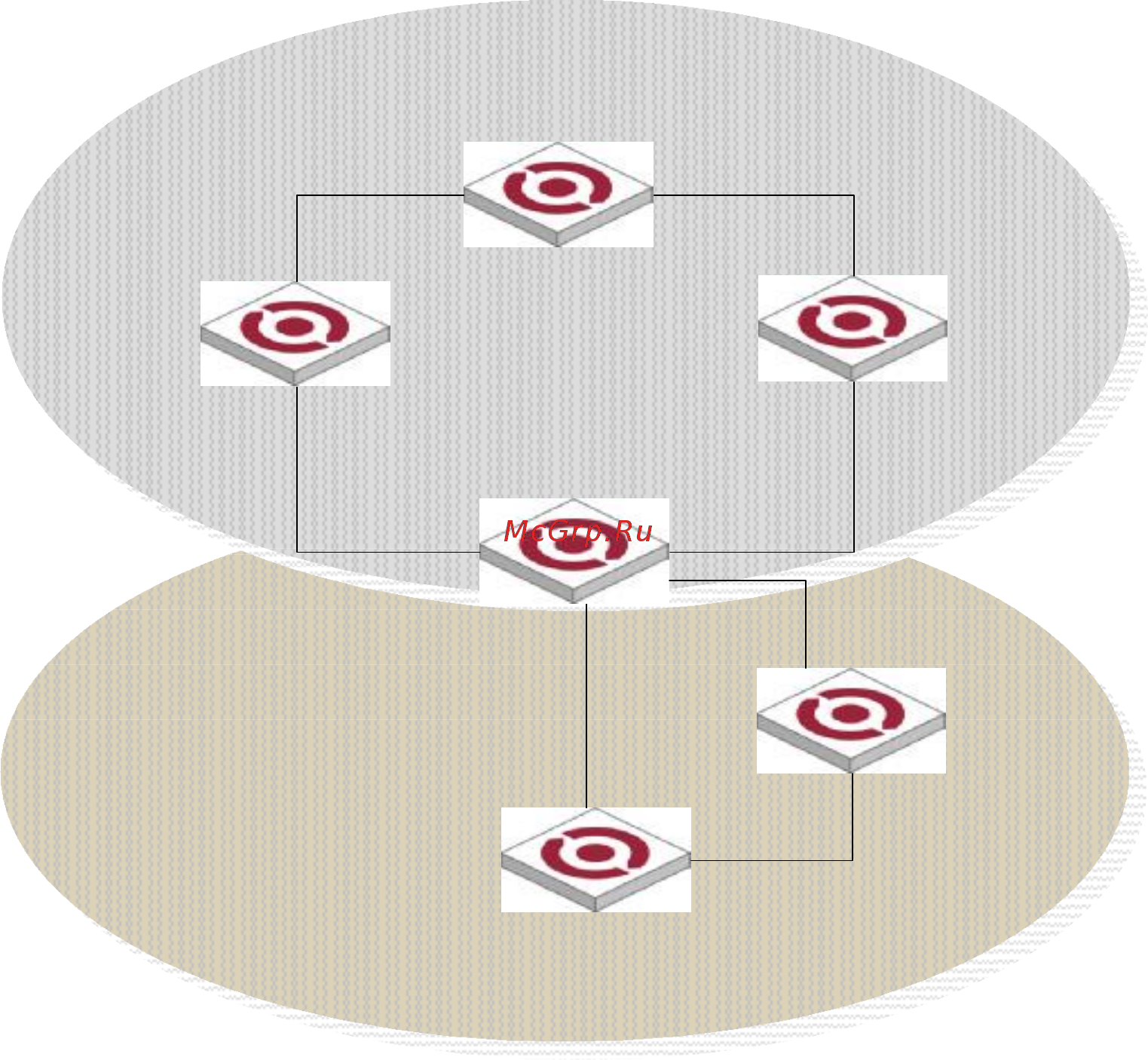

Figure 3 Multi-domain tangent rings
There are two or more rings in the network topology and only one common node between rings. In this case,
you need define an ERRP domain for each ring.
