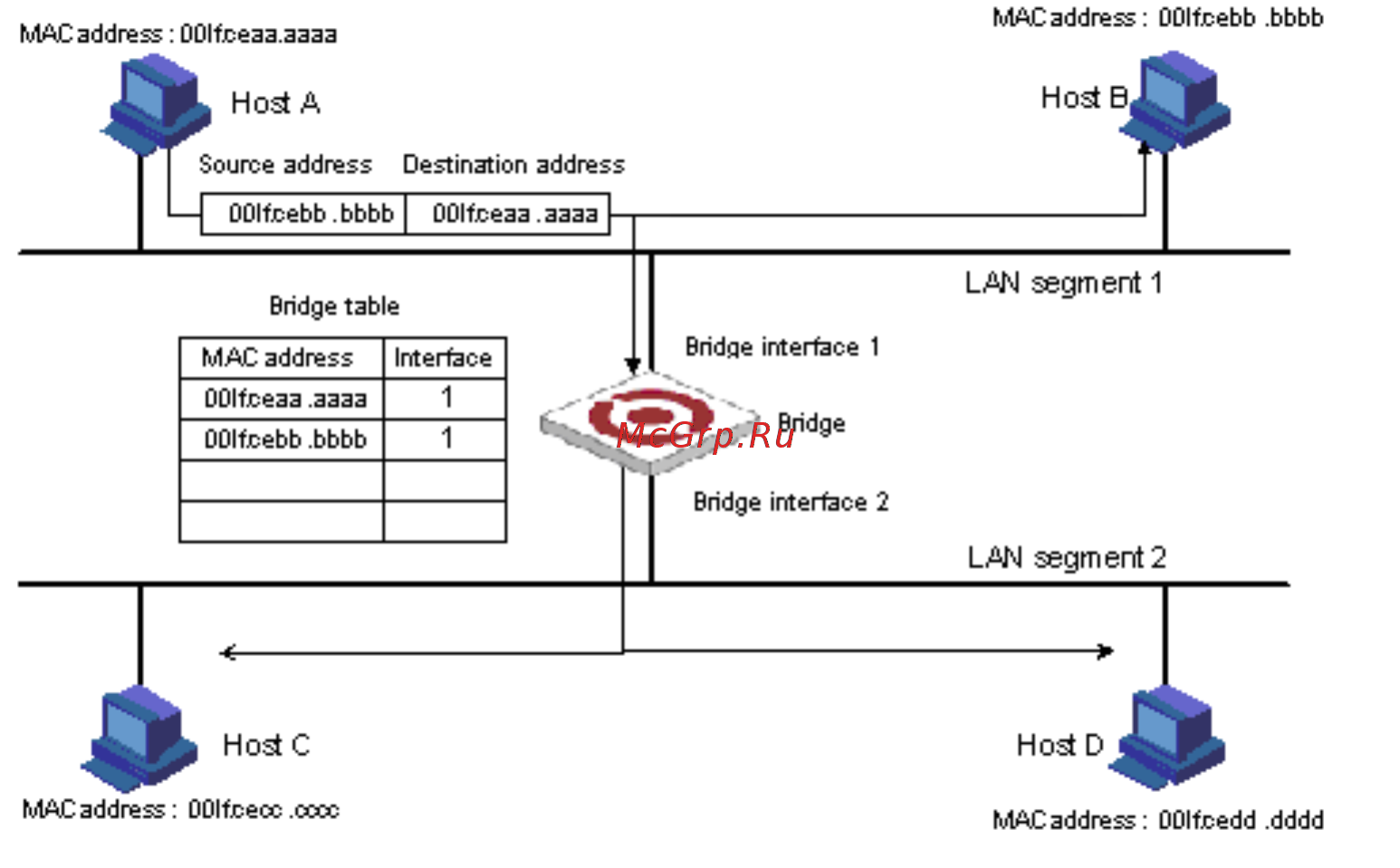

Figure 7 The proper MAC-to-interface mapping is not found in the bridge table
& Note:
When a bridge receives a broadcast or multicast frame, it forwards the frame to all interfaces other
than the receiving interface.
3.2 Port Configuration
3.2.1 Port related configuration
Configure related feature parameter of ports should enter interface configuration mode first, and then
configure.
Interface configuration list is as following:
· Enter interface configuration mode
· Enable /disable specified interface
· Configure duplex mode and speed rate
· Configure interface privilege
· Configure interface limited speed
· Configure type of receiving frame
· Configure interface type
· Configure default VLAN ID of trunk port
· Add access port to specified VLAN
· Display interface information
