Fuel System
2332 690 01 Rev. H KohlerEngines.com
CARBURETOR
WARNING
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or fl ames. Spilled fuel could ignite
if it comes in contact with hot parts or sparks from
ignition. Never use gasoline as a cleaning agent.

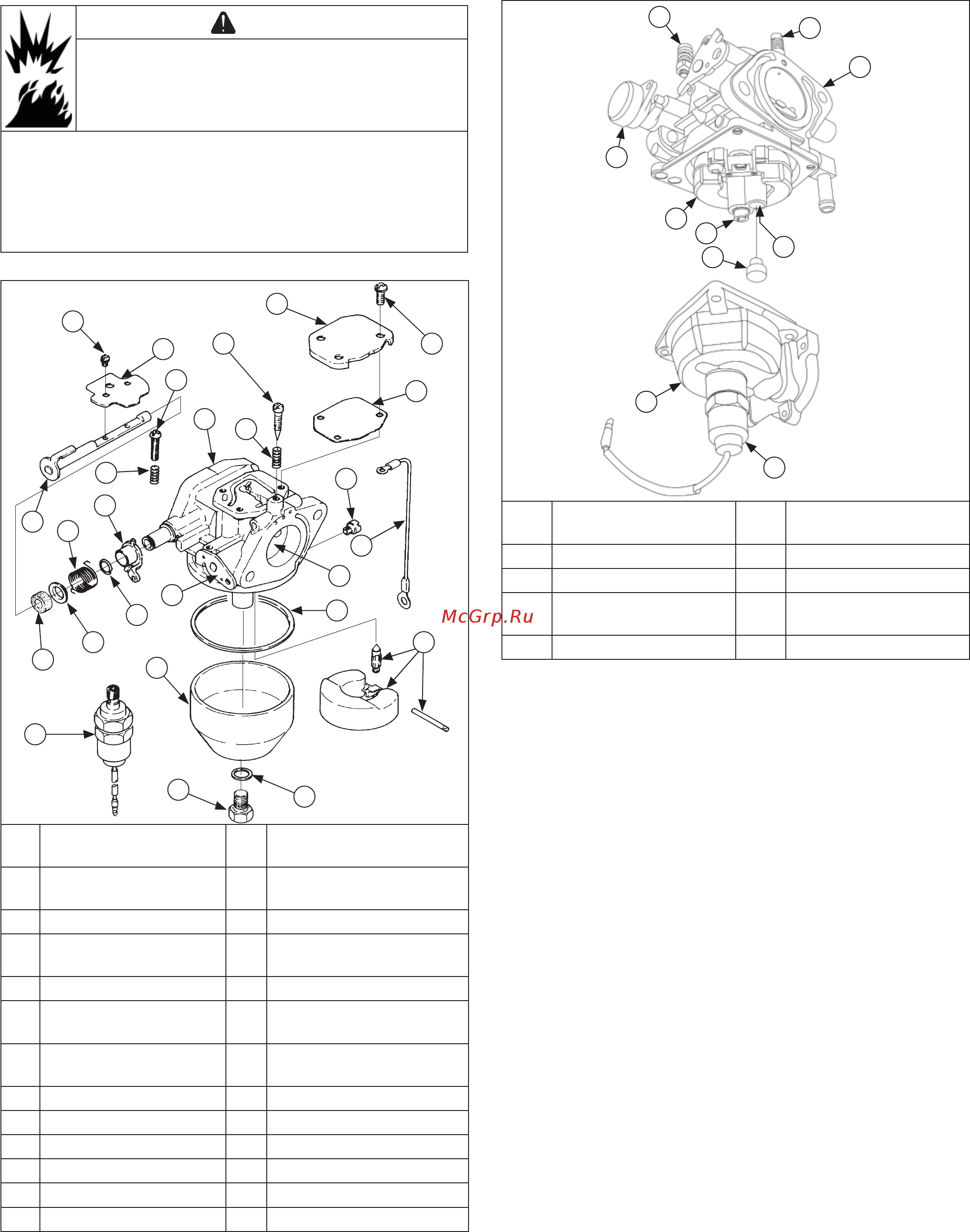

Nikki One-Barrel Carburetor Components
N
K
M
L
I
P
H
G
D
B
C
A
X
R
Z
W
U
O
V
T
S
Q
Y
J
E
F
A Carburetor Body B
Idle Fuel Adjusting
Screw
C
Idle Fuel Adjusting
Spring
D Passage Cover
E Cover Gasket F Cover Retaining Screw
G Main Jet H
Ground Lead
(Solenoid Only)
I Fuel Bowl Gasket J Float Kit
K Fuel Bowl L
Bowl Retaining
Screw Gasket
M
Bowl Retaining
Screw
N
Shut-off Solenoid
Assembly
O Throttle Shaft/Lever P Throttle Plate
Q Choke Shaft R Choke Plate
S Air Filter T Collar
U Spring V Ring
W Choke Lever X Idle Speed Screw
Y Idle Speed Spring Z Setscrews
Keihin One-Barrel Carburetor Components
J
I
H
E
F
G
D
B
C
A
A Idle Speed Screw B
Idle Fuel
Adjusting Screw
C Carburetor Body D Idle Jet
E Plug F Main Jet
G Float H
Shut-off Solenoid
Assembly
I Fuel Bowl J Choke Lever
