Kohler Command PRO EFI ECV980 [12/172] Speciﬁ cations

Speciﬁ cations

62 690 05 Rev. FKohlerEngines.com

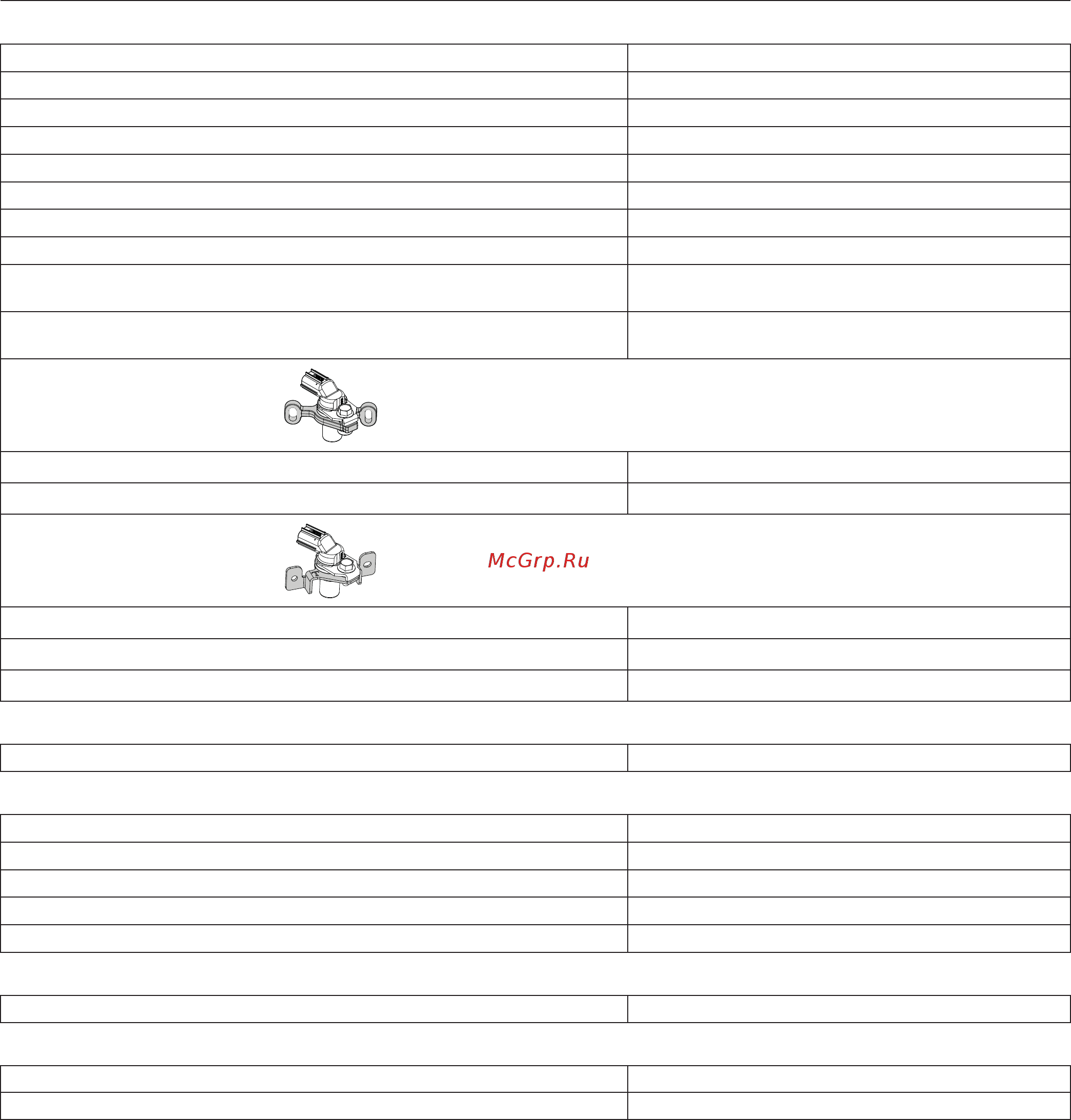

TORQUE SPECIFICATIONS

3,5

ECV940 ECV980

Ignition

Spark Plug 27 N·m (20 ft. lb.)

Coil Fastener 10.2 N·m (90 in. lb.)

Electronic Control Unit (ECU) to Bracket Screw 6.2 N·m (55 in. lb.)

ECU to Isolation Mount Nut (ETB) 2 N·m (18 in. lb.)

ECU Bracket to HDAC Screw (ETB) 7.9 N·m (70 in. lb.)

ECU Bracket to HDAC Bracket Screw (ETB) 4.5 N·m (5.1 in. lb.)

Fuse Bracket to HDAC Bracket Nut (ETB) 7.9 N·m (70 in. lb.)

Rectiﬁ er-Regulator Fastener (Standard Charging System) 2.5 N·m (22 in. lb.)

Rectiﬁ er-Regulator Power Studs/Nuts (High Output Charging

System)

4.0 N·m (35 in. lb.)

Rectiﬁ er-Regulator Terminal Block Cover Fastener (High Output

Charging System)

2.8 N·m (25 in. lb.)

Crankshaft Position Sensor

Earlier Design Bracket

Crankshaft Position Sensor to Bracket Screw 11.3 N·m (100 in. lb.)

Crankshaft Position Sensor Bracket to Crankcase Screw 9.7 N·m (86 in. lb.)

Crankshaft Position Sensor

Later Design Bracket

Crankshaft Position Sensor to Bracket Screw 6.8 N·m (60 in. lb.)

Crankshaft Position Sensor Bracket to Crankcase Screw 7.3 N·m (65 in. lb.)

Ground Wire to #1 Crankcase Post Screw 9.7 N·m (86 in. lb.)

Lifter Feed Chamber Cover

Screw 6.6 N·m (58 in. lb.)

Muﬄ er

Retaining Nut 24.4 N·m (216 in. lb.)

Screw, intermittent bracket (into weld nut) 13.6 N·m (120 in. lb.)

M6 Screw 9.9 N·m (88 in. lb.)

M8 Screw 24.4 N·m (216 in. lb.)

Oxygen Sensor 22 mm (7/8 in.) wrench size 50.1 N·m (37 ft. lb.)

Oil Cooler (if equipped)

Mounting Screw 2.3 N·m (21 in. lb.)

Oil Filter Adapter/Housing

Mounting Screw 23.7 N·m (210 in. lb.)

Oil Filter Nipple 17.8 N·m (158 in. lb.)

Values are in Metric units. Values in parentheses are English equivalents.

Lubricate threads with engine oil prior to assembly.
