Kohler Command PRO EFI ECV880 [8/104] Specifi cations
![Kohler Command PRO EFI ECV850 [8/104] Specifi cations](/views2/1597371/page8/bg8.png)
Specifi cations
8
19 690 01 Rev. DKohlerEngines.com

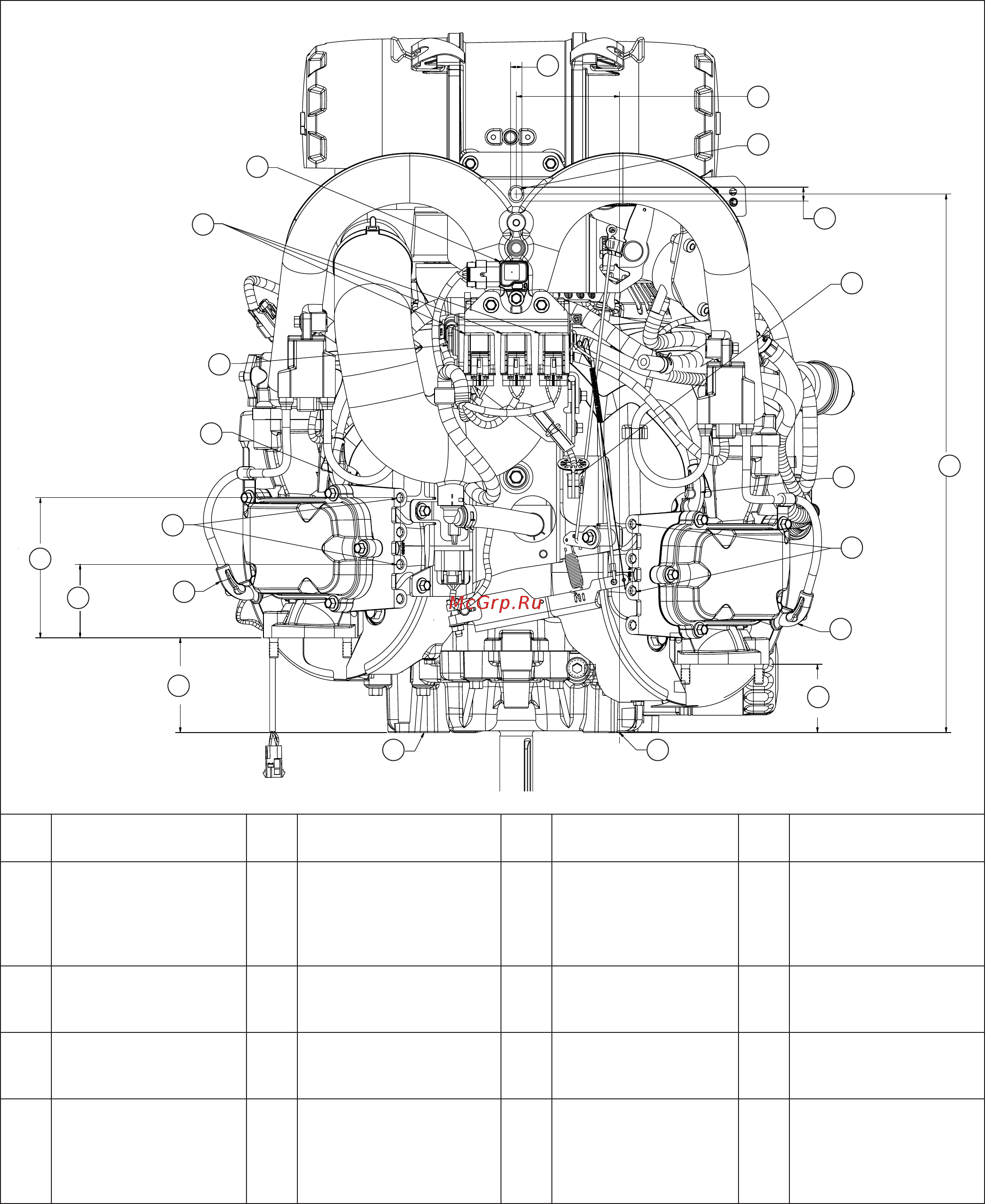

Engine Dimensions-Valve Cover Side
A 10.0 mm (0.39 in.) B 89.8 mm (3.54 in.) C
Lift Hook
Location #1
D 12.0 mm (0.47 in.)
E Diagnostic Connector F 469.0 mm (18.46 in.) G
Cylinder #2 Upper
Spark Plug Lead
Wire Boot
H
M8 X 1.25 mm
Muffl er Bracket
Support
Mounting Locations
(Optional)
I
Cylinder #2 Lower
Spark Plug Lead
Wire Boot
J
Exhaust Port #2
59.5 mm (2.34 in.)
K Mounting Hole "A" L
Engine Mounting
Surface
M
Exhaust Port #1
82.5 mm (3.25 in.)
N
Cylinder #1 Lower
Spark Plug Lead
Wire Boot
O
2 X 64.0 mm
(2.52 in.)
P
2 X 122.0 mm
(4.80 in.)
Q
Cylinder #1 Upper
Spark Plug Lead
Wire Boot
R
Throttle Position
Sensor
S Fuses T
Temperature/
Manifold
Absolute
Pressure (TMAP)
Sensor
A
B
C
D
E
G
F
H
I
J
KL
M
O
P
N
H
Q
R
S
T
