Kohler Command PRO EFI ECV850 [5/104] Specifi cations
![Kohler Command PRO EFI ECV850 [5/104] Specifi cations](/views2/1597371/page5/bg5.png)
Specifi cations
519 690 01 Rev. D
KohlerEngines.com

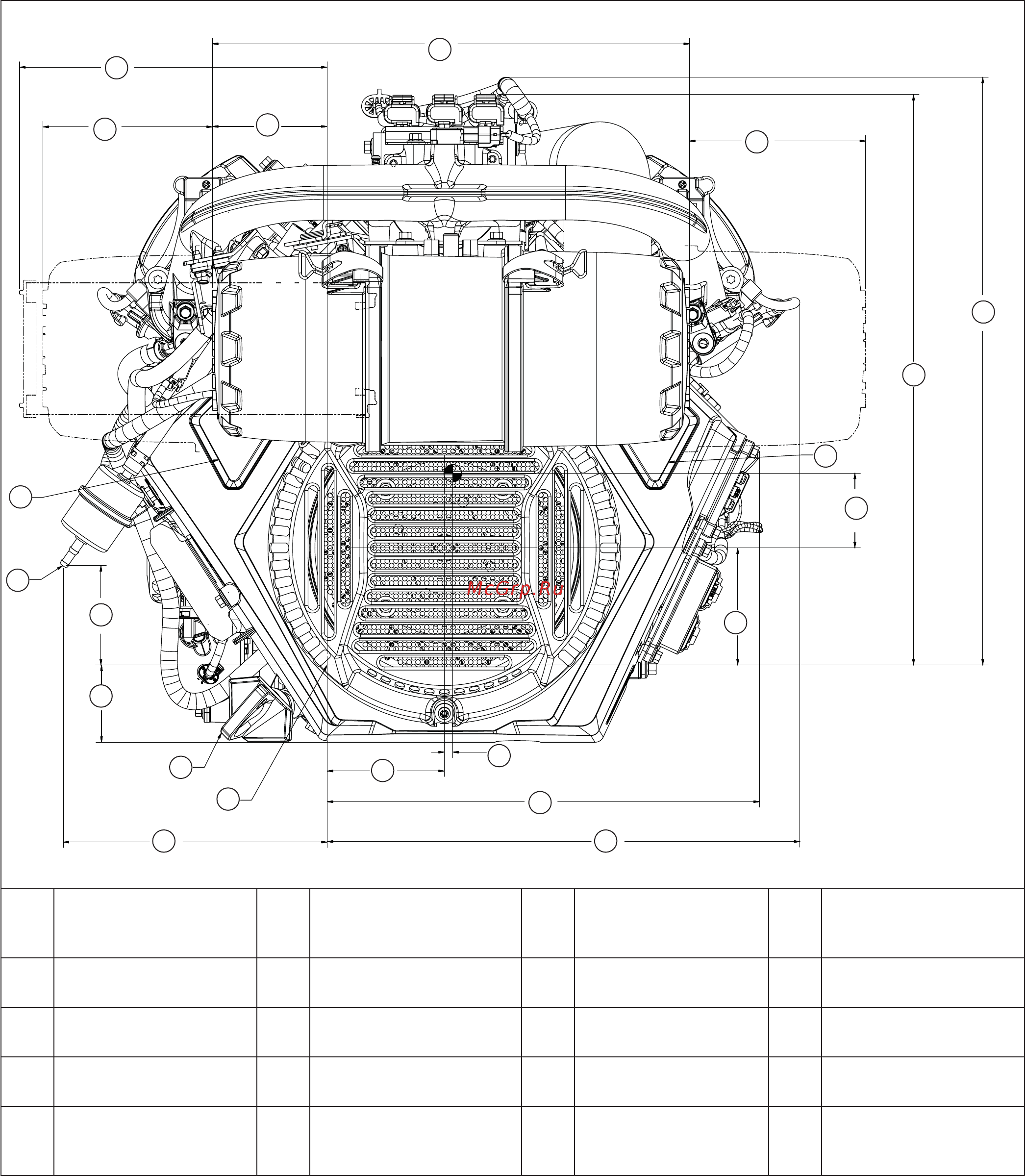

Engine Dimensions-Flywheel Side
A 365.7 mm (14.40 in.) B
Air Filter
Element Removal
235.8 mm (9.29 in.)
C 88.0 mm (3.46 in.) D
Air Filter
Cover Removal
130.0 mm (5.12 in.)
E
Cylinder #2
Clean-Out Cover
F
Fuel Line
Connection Point
G
Flexible
76.2 mm (3.00 in.)
H 59.2 mm (2.33 in.)
I
Oil Fill and Dipstick
(Yellow)
J
Flexible
202.3 mm (7.97 in.)
K
Mounting Hole "A"
(In Oil Pan)
L 89.8 mm (3.54 in.)
M
Center of Gravity
6.5 mm (0.26 in.)
N 331.3 mm (13.05 in.) O
Flexible
362.4 mm (14.27 in.)
P
Center of Gravity
57.3 mm (2.26 in.)
Q
Cylinder #1
Clean-Out Cover
R
Fuses
3 X 437.4 mm
(17.22 in.)
S
Flexible
450.7 mm (17.74 in.)
T
Rain Cap
Cover Removal
135.0 mm (5.31 in.)
F
E
G
H
I
K
L
N
O
M
L
P
Q
R
S
T
A
B
D
C
J
