CARBURETORS
WARNING
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings, away
from sparks or fl ames. Spilled fuel could ignite if it comes
in contact with hot parts or sparks from ignition. Never use
gasoline as a cleaning agent.
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.

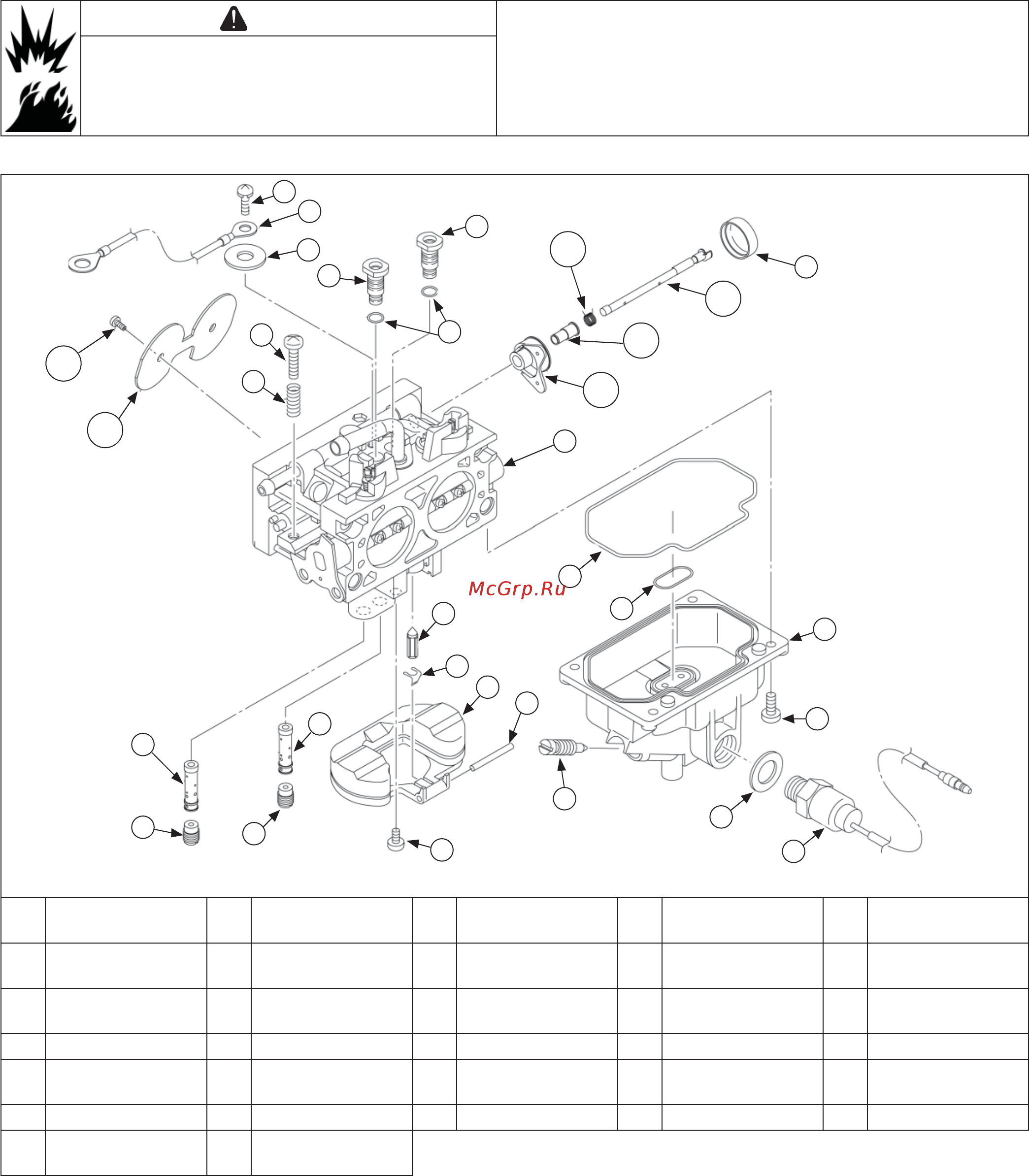

Keihin Two-Barrel Carburetor Components
D
E
F
G
H
I
C
B
Z
J
N
P
O
M
S
T
Q
R
U
K
L
V
X
W
Y
A
AF
AE
AA
AB
AC
AD
A
Carburetor Body
Subassembly
B
Idle Speed
Screw
C
Idle Speed
Spring
D Screw E Ground Lead
F
Retaining
Washer
G
Slow Jet-
Right Side
H
Slow Jet-
Left Side
I
O-ring
(Slow Jet)
J Fuel Bowl
K
O-ring (Fuel
Bowl-Upper)
L
O-ring (Fuel
Bowl-Lower)
M Drain Screw N Bowl Screw O Fuel Solenoid
P Sealing Washer Q Float R Pin S Screw T Float Clip
U
Float Valve/
Inlet Needle
V
Main Nozzle-
Right Side
W
Main Nozzle-
Left Side
X
Main Jet-
Right Side
Y
Main Jet-
Left Side
Z Choke Dust Cap AA Choke Shaft AB Spring AC Bushing AD Choke Lever
AE Choke Plate AF
Choke Plate
Screw
Fuel System
24 24 690 06 Rev. KKohlerEngines.com
