INFORMATION ABOUT REPLACEMENTS

6.3 Filter cartridge and fuel pre-ﬁlter check

NOTE: The fuel ﬁlter is situated on the

crankcase of the engine or it may be

assembled on the frame of the vehicle.

1. Disconnect the cable A of the water presence sensor C.

2. Remove the water presence sensor C from its cartridge B.

3. Loosen the cartridge B using the appropriate wrench

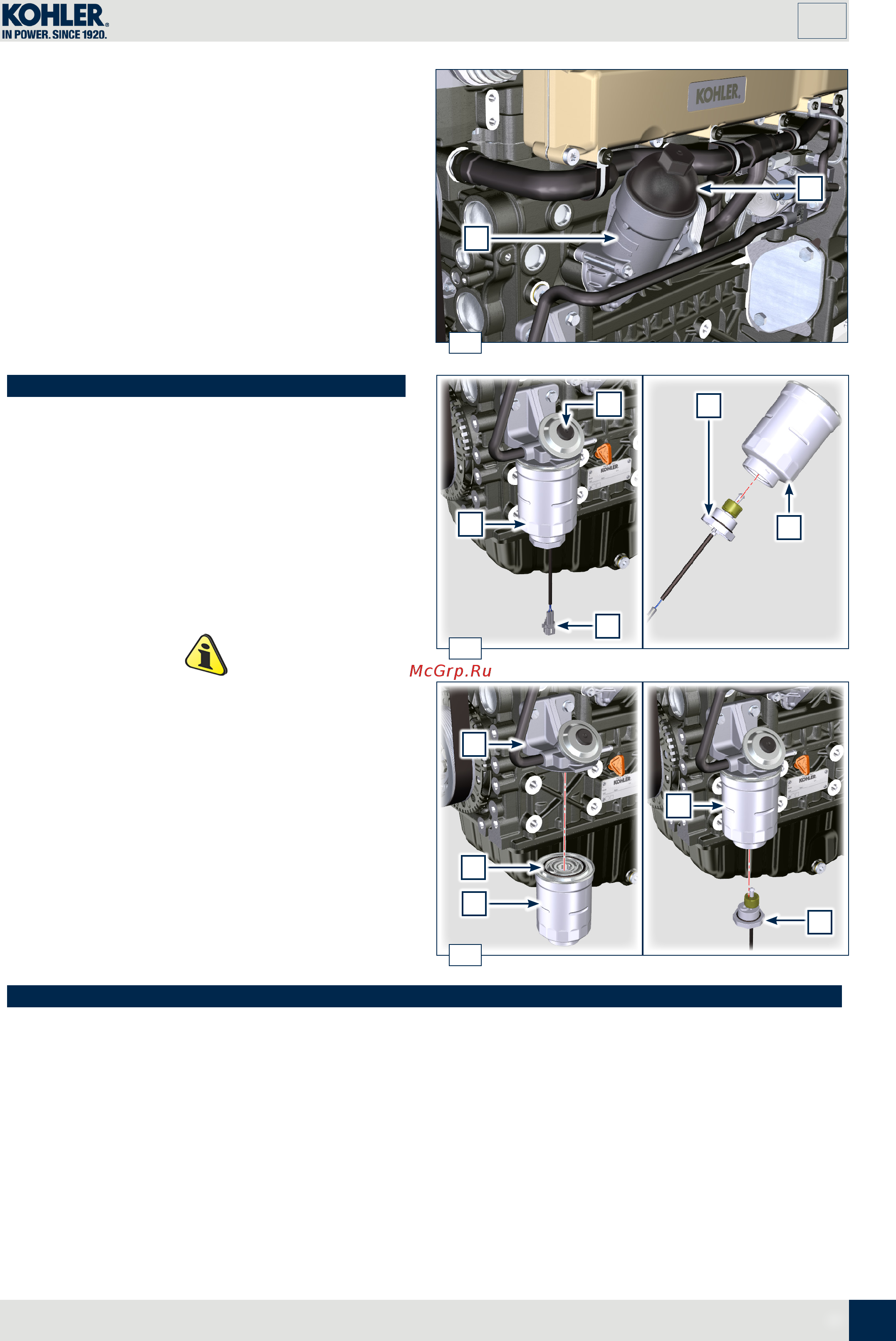

(Fig. 6.9).

4. Lubricate the gasket D of the new cartridge B.

Important

• Do not fill the new cartridge B with fuel.

5. Tighten the new empty cartridge B (Fig. 6.9) on the diesel

fuel filter support E using the special wrench (tightening

torque of 17 Nm).

6. Tighten the water presence sensor C on the new cartridge

B (tightening torque of 5 Nm).

7. Reconnect the cable A of the water presence sensor C.

NOTE: Bleeding.

8. Push repeatedly the button G in order to fill the circuit.

6.4 Air ﬁlter cartridge replacement

NOTE: Component not supplied by KOHLER.

Refer to the technical documentation of the vehicle.

5. Fit and tighten the cover A on the oil filter support F,

tightening it with a torque wrench G (tightening torque of

25 Nm).
